YTH 2148 (954572035-B) - Husqvarna 48" Yard Tractor (2005-01) CHASSIS & ENCLOSURES Parts Diagram

48" Yard Tractor

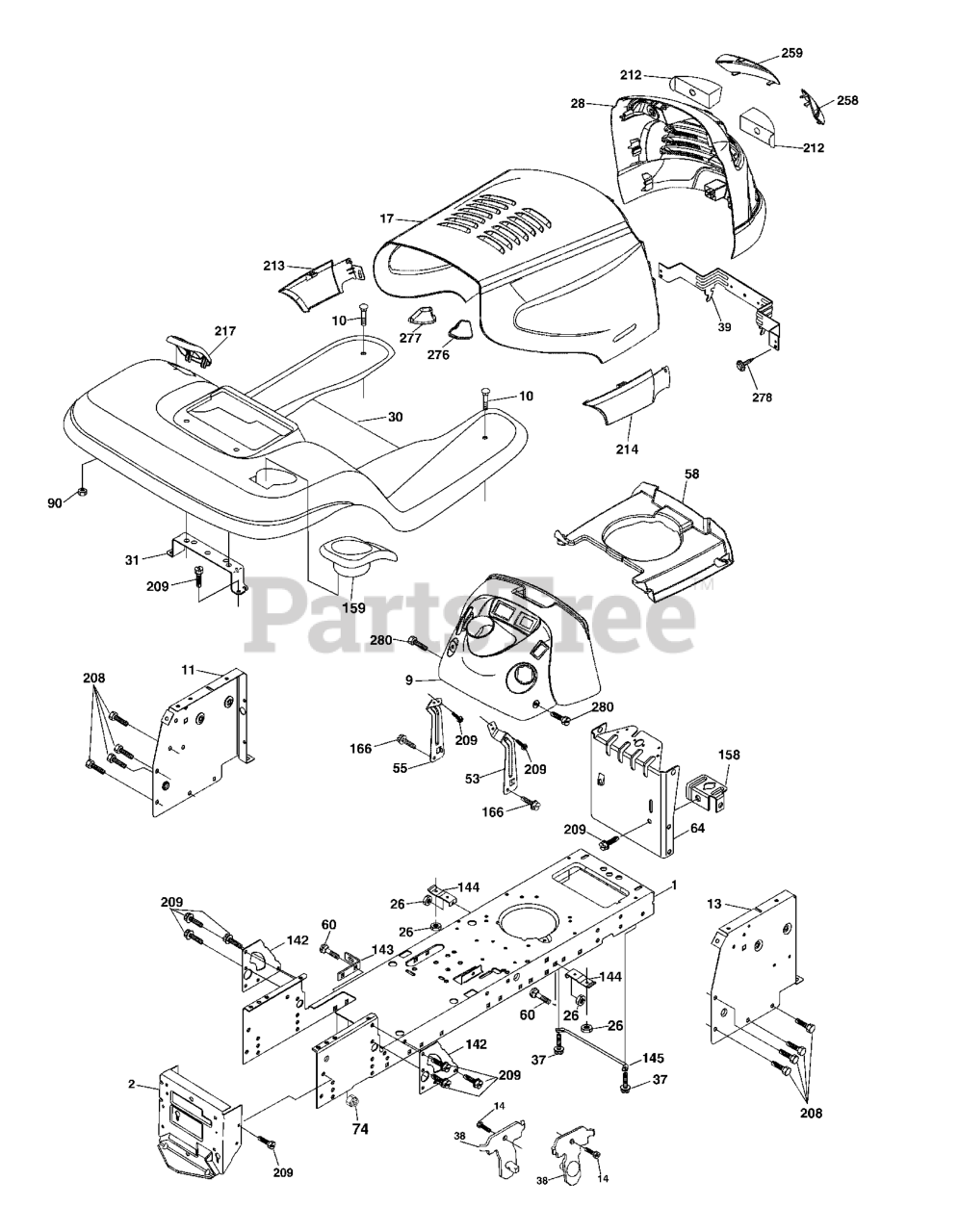

CHASSIS & ENCLOSURES Parts Diagram

  • Title
278

Husqvarna 532189585

SCREW
(Superseded to 532191611)

Note: 532189585

$

$

Not available

14

Husqvarna 817490608

SCREW LT

Note: 817490608

$6.49

$

Usually ships in 3-10 days

0

90

Husqvarna 532124346

NUT.PUSH.3/16

Note: 532124346

$7.99

$

In Stock, only 1 left!

0

259

Husqvarna 532189982

LENS ELITE CLEAR LH
(Superseded to 532188264)

Note: 532189982

$18.99

$

In Stock, only 1 left!

0

276

Husqvarna 532189274

BUMPER HOOD RH

Note: 532189274

$7.99

$

Usually ships in 3-10 days

0

158

Husqvarna 532162037

BRACKET PARKING BRAKE

Note: 532162037

$

$

Not available

217

Husqvarna 532185436

CONSOLE FUEL WINDOW
(Superseded to 532179132)

Note: 532185436

$9.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532188372

BRACKET DASH RH

Note: 532188372

$

$

Not available

30

Husqvarna 532191815

FENDER STL W/CUPHOLDER
(Superseded to 532192814)

Note: 532191815

$

$

Not available

209

Husqvarna 817000612

SCREW, 3/8-16X3/4

Note: 817000612

$4.99

$

In Stock, only 2 left!

0

58

Husqvarna 532189352

AIR DUCT ENGINE

Note: 532189352

$

$

Not available

55

Husqvarna 532188373

BRACKET DASH LH

Note: 532188373

$6.99

$

Usually ships in 3-10 days

0

159

Husqvarna 532185434

GREY CUP HOLDER
(Superseded to 532191120)

Note: 532185434

$10.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532176554

DRAWBAR, 12GA

Note: 532176554

$43.99

$

Usually ships in 3-10 days

0

213

Husqvarna 532189979

SKIRT SIDE LH
(Superseded to 532188266)

Note: 532189979

$7.99

$

Usually ships in 3-10 days

0

166

Husqvarna 532171875

SCREW
(Superseded to 532189747)

Note: 532171875

$17.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532174619

CHASSIS STAMPING
(Superseded to 579841401)

Note: 532174619

$433.99

$

Usually ships in 3-10 days

0

208

Husqvarna 817670608

SCREW 3/8-16X1/2

Note: 817670608

$6.49

$

Usually ships in 3-10 days

0

258

Husqvarna 532189981

LENS ELITE CLEAR RH
(Superseded to 532188263)

Note: 532189981

$18.99

$

Usually ships in 3-10 days

0

143

Husqvarna 532186689

BRACKET, SWAYBAR CHASSIS

Note: 532186689

$6.99

$

In Stock, only 2 left!

0

9

Husqvarna 532190036

DASH.NON-TEX.GRAY

Note: 532190036

$51.99

$

Usually ships in 3-10 days

0

142

Husqvarna 532175702

PLATE REINFORCEMENT

Note: 532175702

$9.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532181719

PANEL DASH RH
(Superseded to 532172105)

Note: 532181719

$21.99

$

In Stock, only 1 left!

0

64

Husqvarna 532174997

DASH LOWER

Note: 532174997

$30.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532174714

BRACKET PIVOT LASER
(Superseded to 532407807)

Note: 532174714

$31.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532188269

GRILL/LENS ASSY ( YT MODEL)

Note: 532188269

$157.99

$

In Stock, only 1 left!

0

60

Husqvarna 872140606

Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4

Note: 872140606

$

$

Not available

145

Husqvarna 532156524

ROD PIVOT CHASSIS/HOOD
(Superseded to 532409167)

Note: 532156524

$13.99

$

In Stock, only 2 left!

0

37

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

Note: 817490508

$3.99

$

Usually ships in 3-10 days

0

144

Husqvarna 532175582

BRKT, FOOT REST

Note: 532175582

$7.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532175710

BRACKET.ASM.PIVOT.MOWER.REAR

Note: 532175710

$11.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532189977

HOOD
(Superseded to 532188374)

Note: 532189977

$157.99

$

Usually ships in 3-10 days

0

277

Husqvarna 532189275

BUMPER HOOD LH

Note: 532189275

$

$

Not available

26

Husqvarna 873800600

NUT
(Superseded to 873680600)

Note: 873800600

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532174996

PANEL.DASH.LH.LTX

Note: 532174996

$

$

Not available

280

Husqvarna 817060616

SCREW THDROL 3/8-16 X 1-1/2
(Superseded to 817000616)

Note: 817060616

$7.49

$

In Stock, only 3 left!

0

214

Husqvarna 532189978

SKIRT SIDE RH
(Superseded to 532188265)

Note: 532189978

$7.99

$

Usually ships in 3-10 days

0

10

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

Note: 872140608

$4.99

$

Usually ships in 3-10 days

0

212

Husqvarna 532188267

INSERT LENS

Note: 532188267

$10.99

$

Usually ships in 3-10 days

0

74

Husqvarna 873680600

LOCKNUT

Note: 873680600

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532139976

BRACKET.SUPPORT.FENDER

Note: 532139976

$17.99

$

Usually ships in 3-10 days

0
