YTH 2148 (954572035-A) - Husqvarna 48" Yard Tractor (2005-01) ENGINE Parts Diagram

48" Yard Tractor

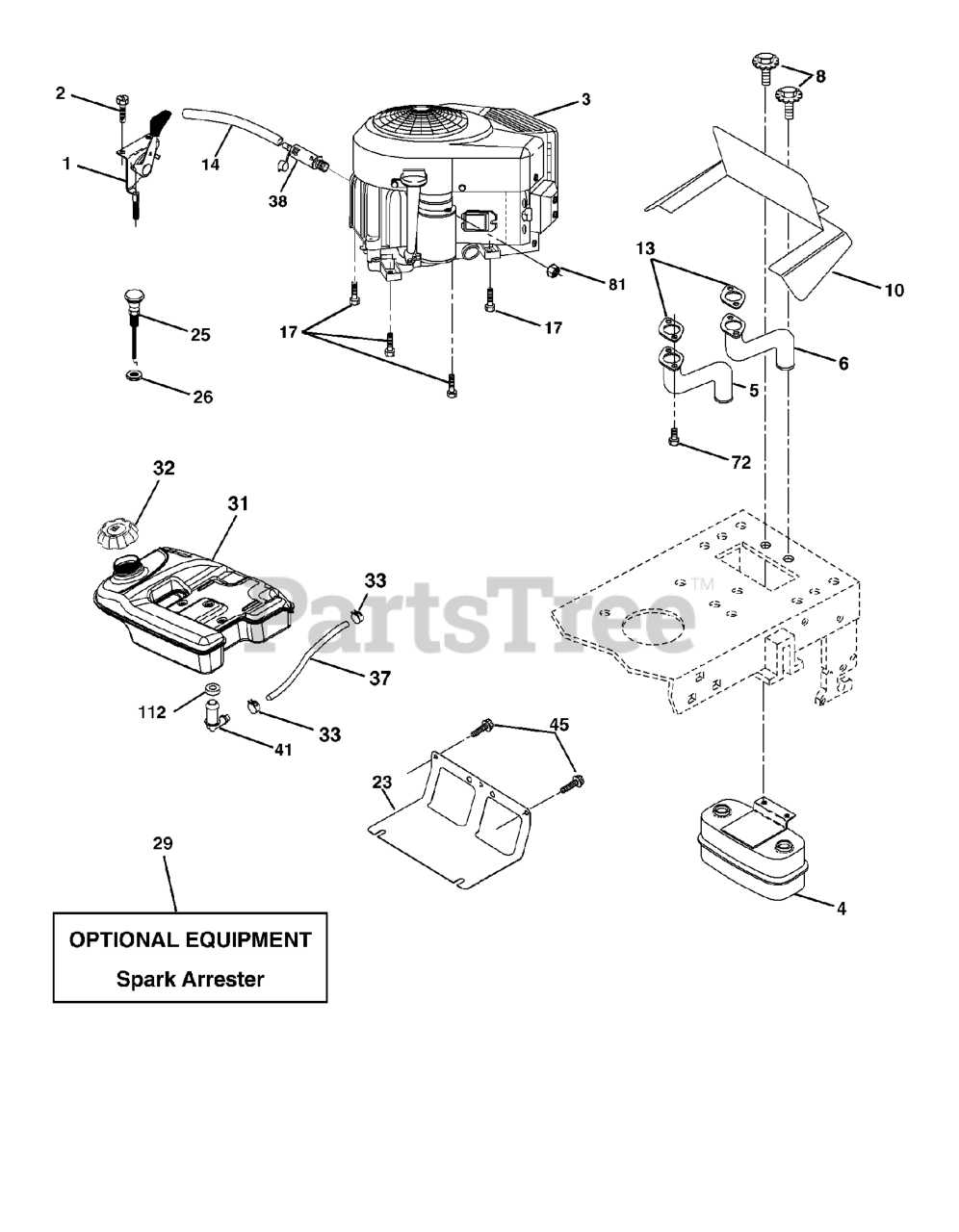

ENGINE Parts Diagram

  • Title
81

Husqvarna 873510400

NUT
(Superseded to 873680400)

Note: 873510400

$4.99

$

In Stock, Qty 16

0

37

Husqvarna 532142158

REPL BY 532 00 85-43
(Superseded to 587044854)

$17.99

$

In Stock, only 2 left!

0

1

Husqvarna 532170803

CONTROL, THROTTLE

Note: 532170803

$30.99

$

In Stock, only 1 left!

0

17

Husqvarna 817060624

SCREW 3/8-16 X 1-1/2

Note: 817060624

$7.49

$

In Stock, only 1 left!

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

Note: 817000612

$4.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18

Note: 532183906

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532162797

SHIELD.BROWNING.B&S
(Superseded to 532146629)

Note: 532162797

$15.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

Note: 532171877

$7.49

$

In Stock, Qty 5

0

13

Husqvarna 532165391

GASKET.MUFFLER

Note: 532165391

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 873920600

Nut Keps 3/8 - 24 UNF

Note: 873920600

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532181803

TANK CAP
(Superseded to 532179124)

Note: 532181803

$37.99

$

Usually ships in 3-10 days

0

2

Husqvarna 817720408

SCREW
(Superseded to 874780408)

Note: 817720408

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

Note: 532148456

$6.99

$

In Stock, only 3 left!

0

3

NEEDS DESCRIPTION

Note: (Order Parts From Engine Manufacturer)

$

$

Not available

29

Husqvarna 532121851

SPARK ARREST

$

$

Not available

38

Husqvarna 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

Note: 532181654

$18.99

$

In Stock, only 4 left!

0

25

Husqvarna 532145996

CONTROL, CHOKE

Note: 532145996

$

$

Not available

5

Husqvarna 532159955

RP.EXHAUST.TUBE.LH.BS/TWIN
(Superseded to 581881101)

Note: 532159955

$44.99

$

In Stock, only 1 left!

0

33

Husqvarna 532123487

HOSE CLAMP

Note: 532123487

$7.49

$

In Stock, only 1 left!

0

4

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

Note: 532149723

$74.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532179022

4.0 REAR FUEL TANK

Note: 532179022

$

$

Not available

112

Husqvarna 532124952

BUSHING OUTLET T
(Superseded to 532003645)

Note: 532124952

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532160589

EXHAUST.TUBE.RH.BS/TWIN
(Superseded to 581881001)

Note: 532160589

$27.99

$

In Stock, only 1 left!

0

23

Husqvarna 532169837

SHIELD.BROWNING.DBR.GUARD

Note: 532169837

$10.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532139277

STEM FUEL TANK

Note: 532139277

$8.99

$

In Stock, Qty 7

0
