YTH 2148 (954571960) - Husqvarna 48" Yard Tractor (2004-03) MOWER LIFT / DECK LIFT 2 Parts Diagram

48" Yard Tractor

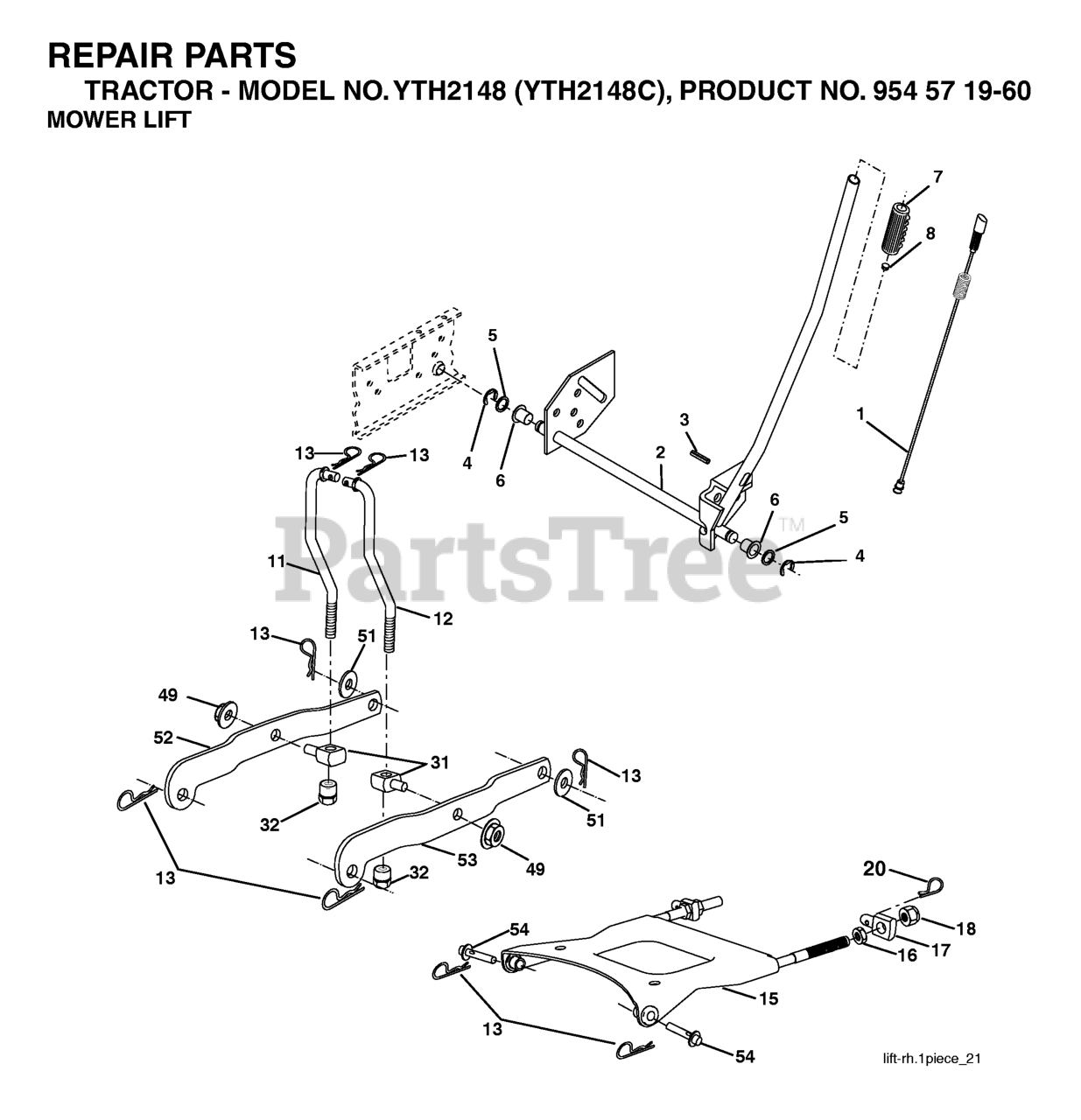

MOWER LIFT / DECK LIFT 2 Parts Diagram

  • Title

51

Husqvarna 819171416

Washer 1 17/32 X 7/8 X 16 Ga

$4.99

$

In Stock, Qty 8

0

49

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 532175371

LIFT LINK RH

$14.99

$

In Stock, only 1 left!

0

53

Husqvarna 532175802

ARM SUSP REAR RH

$103.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532175560

PIN.FLANGE

$13.99

$

In Stock, only 2 left!

0

16

Husqvarna 873350800

NUT.HEX.JAM.1/2-13

$

$

Not available

20

Husqvarna 532163552

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 819211621

WASHER

$6.49

$

In Stock, only 2 left!

0

52

Husqvarna 532175378

ARM SUSP. REAR LH

$

$

Not available

15

Husqvarna 532175562

PLATE ASM SUSP FRONT

$109.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

3

Husqvarna 532105767

PIN GROOVE.

$6.49

$

In Stock, only 3 left!

0

32

Husqvarna 532175994

NUT, LIFT LINK 7/16-20
(Superseded to 589464902)

$4.99

$

In Stock, Qty 5

0

7

Husqvarna 532125631

GRIP HANDLE

$7.99

$

In Stock, only 1 left!

0

17

Husqvarna 532175689

TRUNNION

$

$

Not available

13

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

6

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

31

Husqvarna 532176205

TRUNNION

$7.99

$

In Stock, Qty 5

0

1

Husqvarna 532159460

WIRE ASM INNER W/ PLUNGER LT

$26.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532159471

SHAFT ASM R HANDLE

$54.99

$

Usually ships in 3-10 days

0

4

Husqvarna 812000002

RETAINING RING LT

$7.49

$

In Stock, only 1 left!

0

11

Husqvarna 532175370

LIFT LINK LH

$

$

Not available
