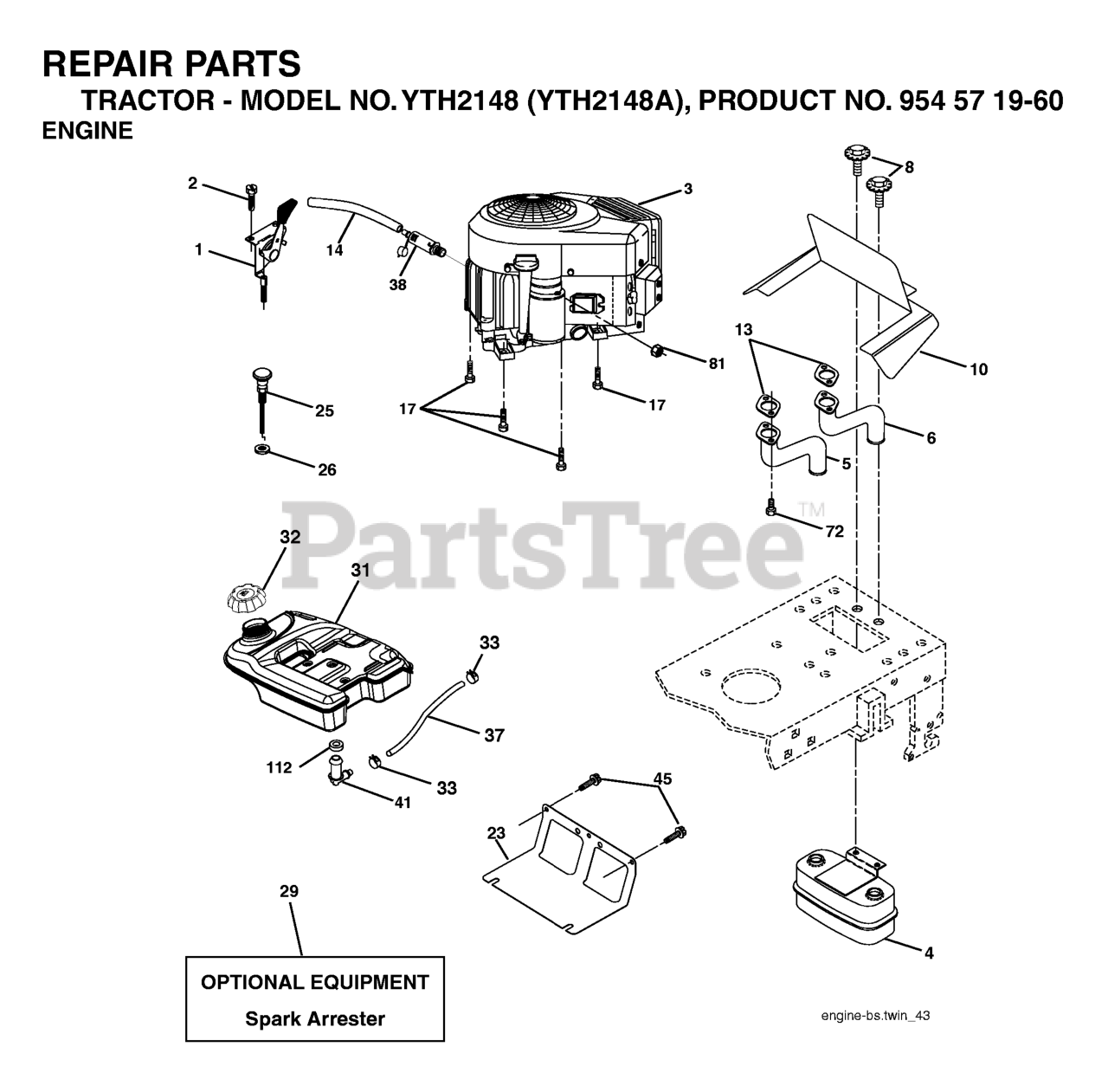

YTH 2148 (954571960) - Husqvarna 48" Yard Tractor (2003-11) ENGINE Parts Diagram

48" Yard Tractor

ENGINE Parts Diagram

  • Title
33

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

17

Husqvarna 817060624

SCREW 3/8-16 X 1-1/2

$7.49

$

In Stock, only 1 left!

0

32

Husqvarna 532181803

TANK CAP
(Superseded to 532179124)

$37.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532190196

THROTTLE CONTROL

$

$

Not available

13

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 19

0

4

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 6

0

37

Husqvarna 532142158

REPL BY 532 00 85-43
(Superseded to 587044854)

$17.99

$

In Stock, only 1 left!

0

38

Husqvarna 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$18.99

$

In Stock, Qty 5

0

31

Husqvarna 532179022

4.0 REAR FUEL TANK

$

$

Not available

23

Husqvarna 532169837

SHIELD.BROWNING.DBR.GUARD

$10.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532139277

STEM FUEL TANK

$8.99

$

In Stock, only 1 left!

0

81

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

5

Husqvarna 532159955

RP.EXHAUST.TUBE.LH.BS/TWIN
(Superseded to 581881101)

$44.99

$

In Stock, only 1 left!

0

72

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 873920600

Nut Keps 3/8 - 24 UNF

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532162797

SHIELD.BROWNING.B&S
(Superseded to 532146629)

$15.99

$

Usually ships in 3-10 days

0

112

Husqvarna 532124952

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

In Stock, only 2 left!

0

2

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532132782

CHOKE CONTROL
(Superseded to 532132781)

$

$

Not available

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 6

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

6

Husqvarna 532160589

EXHAUST.TUBE.RH.BS/TWIN
(Superseded to 581881001)

$27.99

$

In Stock, only 1 left!

0
