YTH 2148 (954571960-D) - Husqvarna 48" Yard Tractor (2004-04) Steering Assembly Parts Diagram

48" Yard Tractor

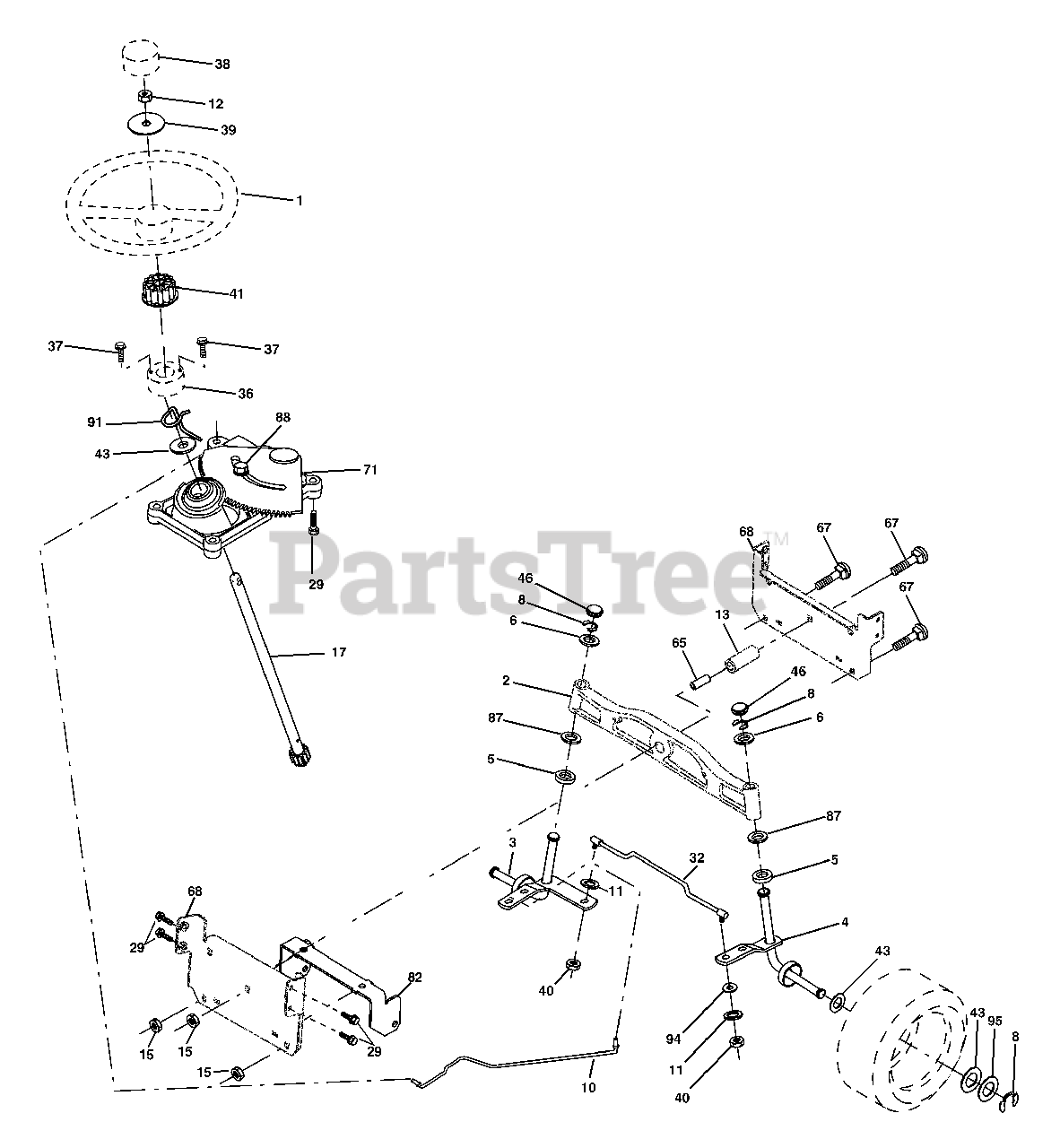

Steering Assembly Parts Diagram

  • Title
1

Husqvarna 532166627

Wheel Steering
(Superseded to 532159944)

$

$

Not available

2

Husqvarna 532184706

Axle
(Superseded to 532193542)

$169.99

$

In Stock, only 1 left!

0

3

Husqvarna 532169840

Spindle Asm LH
(Superseded to 596873901)

$18.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532169839

Spindle Asm RH
(Superseded to 596873801)

$31.99

$

In Stock, only 1 left!

0

5

Husqvarna 532124931

Bearing Race Thrust Harden
(Superseded to 532006266)

$7.49

$

In Stock, Qty 10

0

6

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 812000029

Ring Klip #t5304-75

$4.99

$

Usually ships in 3-10 days

0

10

$68.99

$

In Stock, only 2 left!

0

11

Husqvarna 810040600

Washer Lock Hvy Hlcl Spr 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

12

Husqvarna 873940800

Nut Hex Jam Toplock 1/2-20 unf

$7.49

$

In Stock, only 4 left!

0

13

Husqvarna 532136518

Spacer Brg Axle Front

$9.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532145212

Nut Hex Flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532177883

Shaft Asm Strg

$120.99

$

Usually ships in 3-10 days

0

29

Husqvarna 817000612

Screw 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

32

$

$

Not available

34

Husqvarna 810040500

Washer Lock Hvy Helical 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

36

Husqvarna 532155105

Bushing Strg
(Superseded to 532155108)

$7.99

$

In Stock, only 1 left!

0

$7.49

$

In Stock, only 2 left!

0

38

Husqvarna 532166626

Insert Cap Strg Wh
(Superseded to 532172092)

$17.99

$

Usually ships in 3-10 days

0

39

Husqvarna 819183812

Washer 9/16 x 2-3/8 12 Ga.

$9.49

$

Usually ships in 3-10 days

0

40

Husqvarna 873540600

Nut Crownlock 3/8-24

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532159945

Adaptor Wheel Strg

$

$

Not available

43

Husqvarna 532121749

Washer 25/32 x 1 1/4 x 16 Ga.

$3.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532121232

Cap Spindle Fr Top Blk

$4.99

$

In Stock, Qty 8

0

65

Husqvarna 532160367

Spacer Brace Axle
(Superseded to 532414736)

$6.99

$

In Stock, only 4 left!

0

67

Husqvarna 872110618

Bolt Rdhd Sq 3/8-16 x 2-1/4

$6.49

$

In Stock, only 2 left!

0

68

Husqvarna 532169827

Axle, Brace

$21.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532175146

Steering Asm

$182.99

$

In Stock, only 3 left!

0

82

Husqvarna 532169835

Bracket Susp Chassis Front
(Superseded to 532199978)

$15.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532173966

Washer Flat .781 x 1-1/2 x .14

$7.49

$

Usually ships in 3-10 days

0

88

Husqvarna 532175118

Bolt Shoulder 7/16-20

$6.49

$

Usually ships in 3-10 days

0

91

Husqvarna 532175553

Clip Steering

$13.99

$

In Stock, only 1 left!

0

94

Husqvarna 819121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

95

Husqvarna 532188967

Washer Hardened

$4.99

$

In Stock, Qty 20+

0
