YTH 2148 (954571960-B) - Husqvarna 48" Yard Tractor (2004-03) Electrical Parts Diagram

48" Yard Tractor

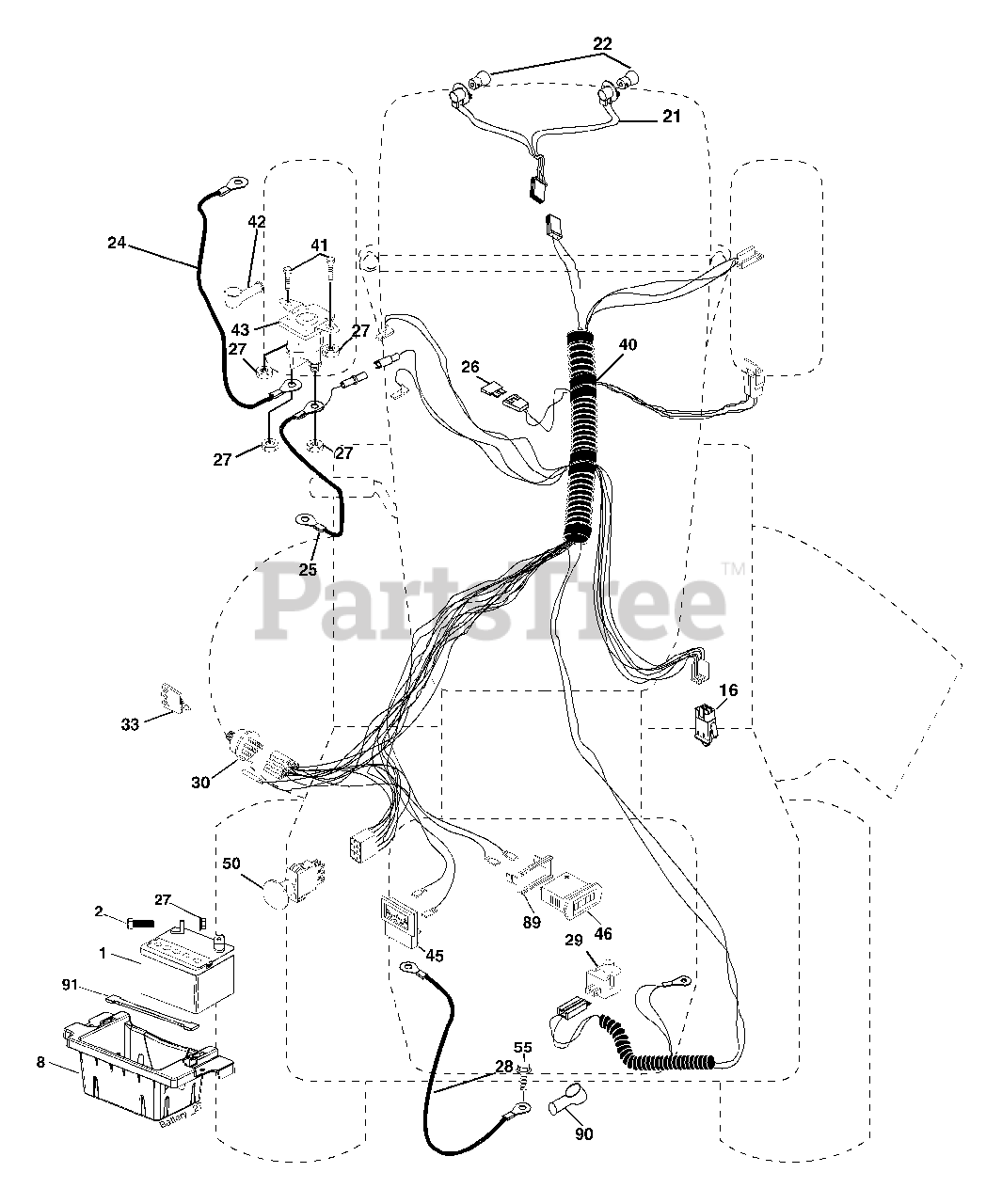

Electrical Parts Diagram

  • Title
1

Husqvarna 532144927

Battery
(Superseded to 532125603)

$194.99

$

In Stock, only 2 left!

0

2

Husqvarna 874760412

Bolt Hex Hd 1/4-20 unc x 3/4

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 532186491

Battery Tray

$

$

Not available

10

Husqvarna 532145211

Bolt 1/4-20 x 7.5
(Superseded to 532150177)

$

$

Not available

11

Husqvarna 532150109

Holddown Battery Front Mount

$

$

Not available

12

Husqvarna 532145769

Nut Push Nylon 1/4"
(Superseded to 532150177)

$

$

Not available

16

Husqvarna 532176138

Switch Interlock Push-In

$22.99

$

In Stock, Qty 5

0

21

Husqvarna 532183759

Harness Asm Light W/4152j

$47.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532004152

Bulb Light #1156

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532124780

Cable Battery 6 Ga. 11" red
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532146148

Cable Battery 6 Ga. 22" red w/16 wire

$18.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532175158

Fuse 20 AMP

$7.49

$

In Stock, only 1 left!

0

27

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

28

Husqvarna 532145491

Cable Ground black

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532121305

Switch Plunger Nc Gray
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

30

Husqvarna 532175566

Switch Ign

$26.99

$

In Stock, only 4 left!

0

33

Husqvarna 532140401

Key Ign Molded Generic

$6.99

$

In Stock, Qty 7

0

40

Husqvarna 532188024

Harness Ign.

$

$

Not available

41

Husqvarna 871110408

Bolt Blk Fin Hex 1/4 - 20 x 1/2
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Husqvarna 532178861

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

45

$20.99

$

In Stock, only 1 left!

0

46

Husqvarna 532169635

Hourmeter Snap-In
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532174651

Switch PTO
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

55

Husqvarna 817490508

Screw 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

89

Husqvarna 532169639

Bracket Snap-In Hourmeter

$6.49

$

Usually ships in 3-10 days

0

90

Husqvarna 532180449

Cover Terminal
(Superseded to 532435395)

$6.49

$

In Stock, only 2 left!

0

91

Husqvarna 532190270

Strap Battery Mount Front

$9.99

$

In Stock, Qty 13

0
