YTH 2146 (960480042-00) - Husqvarna 46" Yard Tractor (2012-10) ENGINE Parts Diagram

46" Yard Tractor

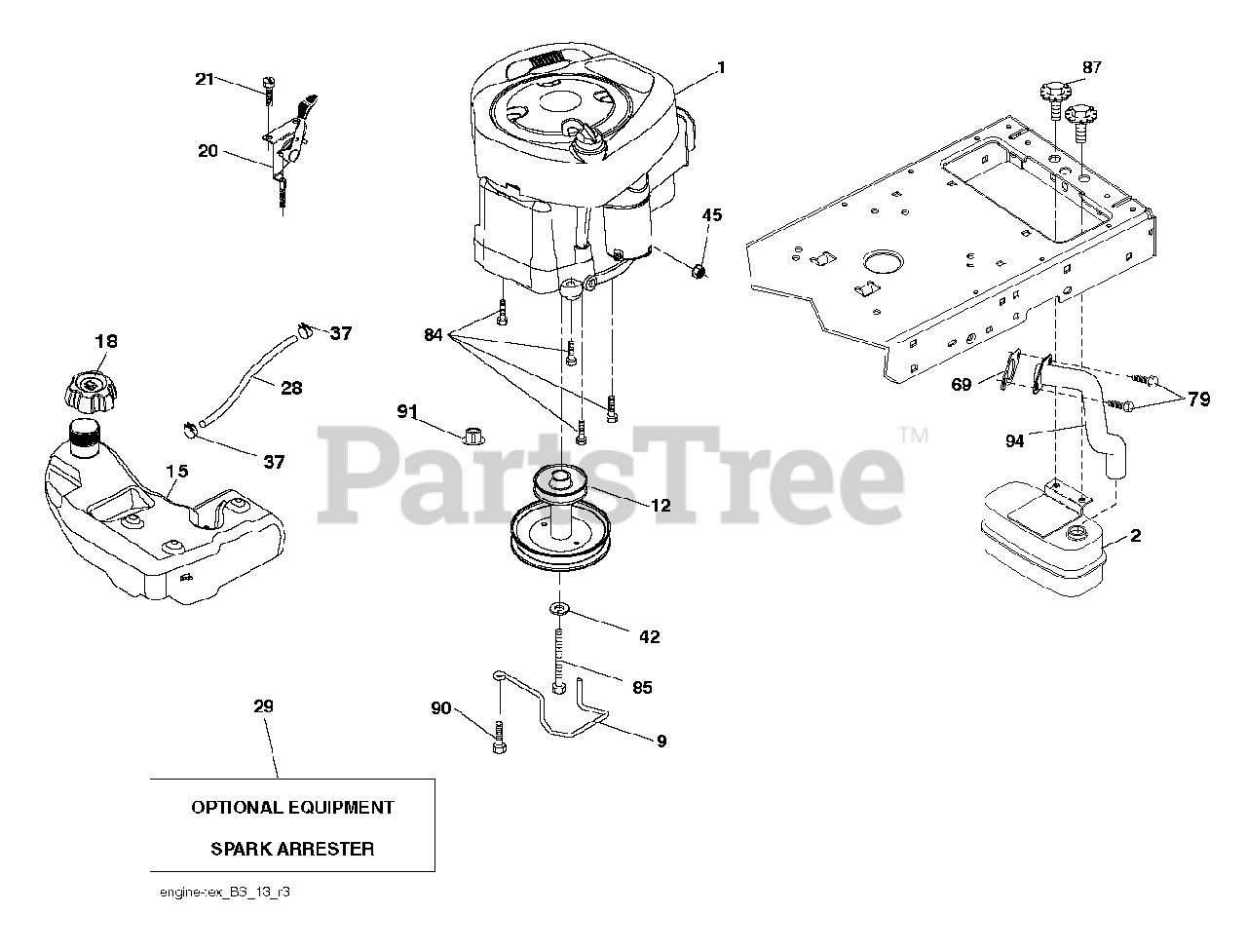

ENGINE Parts Diagram

  • Title

1

000000000

Note: ENGINE B S MODEL NO 33M977-0002-G5 (581187001)

$

$

Not available

2

Husqvarna 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$45.99

$

In Stock, only 1 left!

0

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 584908001)

$

$

Not available

12

Husqvarna 532405472

PULLEY ENGINE

$48.99

$

In Stock, only 1 left!

0

15

Husqvarna 532438080

TANK.ASSY.3.GAL.EPA
(Superseded to 532438031)

$206.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532439208

CAP.ASM.FL.RITCH.3"E10.SYM.498

$53.99

$

In Stock, only 1 left!

0

20

Husqvarna 532401508

CONTROL.TH/CK.COBRA.KO

$34.99

$

In Stock, only 1 left!

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

28

Husqvarna 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

$11.99

$

In Stock, Qty 8

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

69

Husqvarna 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 17

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

87

Husqvarna 537171877

Bolt, 5/16-18 X 1-3/4
(Superseded to 532171877)

$7.49

$

In Stock, Qty 6

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

94

Husqvarna 532405450

EXHAUST.TUBE.B&S.
(Superseded to 581880901)

$31.99

$

In Stock, only 3 left!

0
