YTH 20K46 (960450004-06) - Husqvarna 46" Yard Tractor (2008-03) Steering Assembly Parts Diagram

46" Yard Tractor

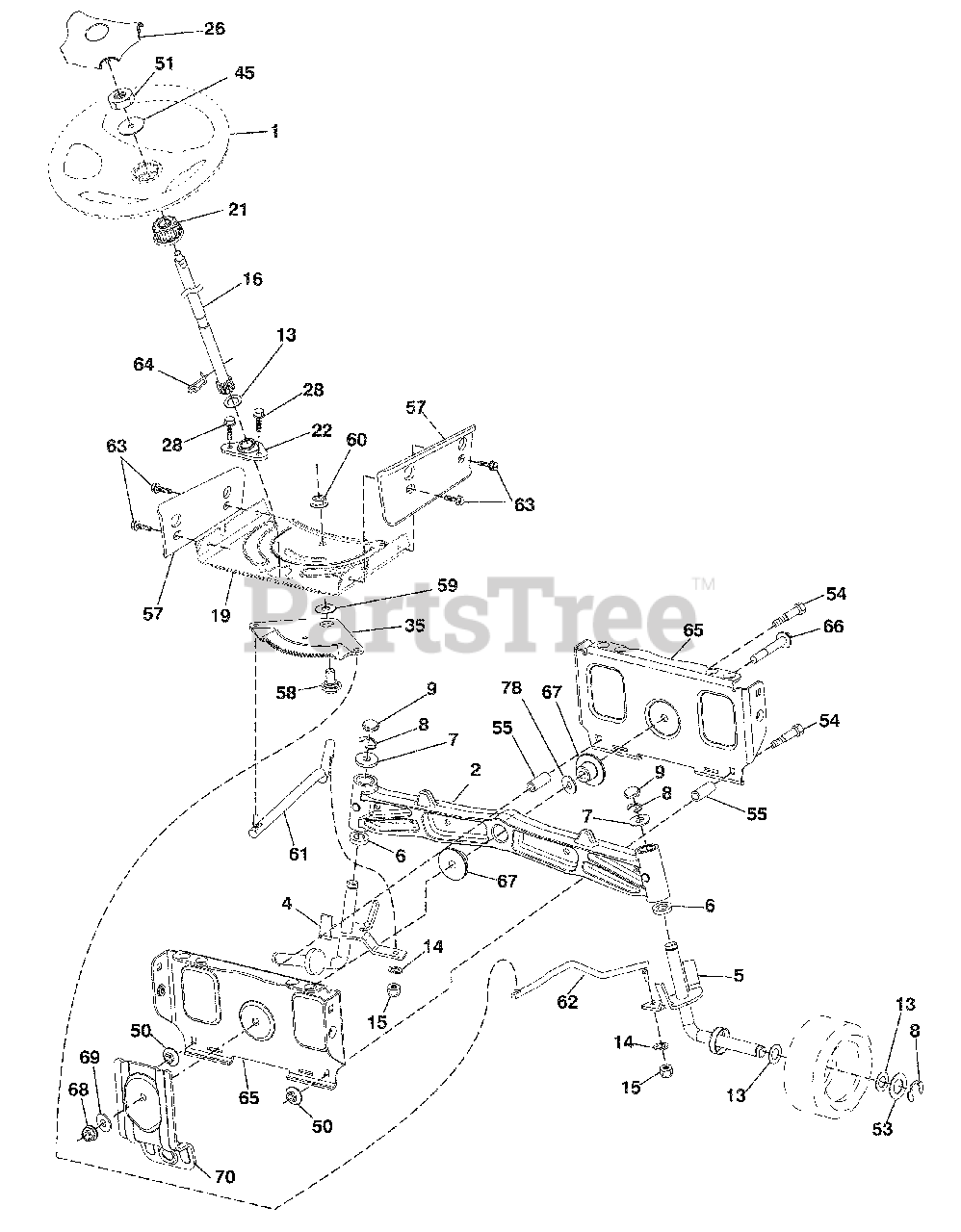

Steering Assembly Parts Diagram

  • Title

1

532 19 39-43

Wheel, Steering

$

$

Not available

2

532 18 47-06

Axle Asm., Front

$

$

Not available

4

532 40 30-87

Spindle Asm., LH

$

$

Not available

5

532 40 30-88

Spindle Asm., RH

$

$

Not available

6

532 12 49-31

Bearing, Race Thrust Harden

$

$

Not available

7

532 12 17-48

Washer 25/32 x 1-5/8 x 16 Ga.

$

$

Not available

8

812 00 00-29

Ring, Klip #T5304-75

$

$

Not available

9

532 12 12-32

Cap, Spindle

$

$

Not available

13

532 12 17-49

Washer 25/32 x 1-1/4 x 16 Ga.

$

$

Not available

14

810 04 06-00

Washer, Lock Hvy Hlcl Spr 3/8

$

$

Not available

15

873 54 06-00

Nut, Crown Lock 3/8-24 unf

$

$

Not available

16

532 40 82-19

Shaft Steering

$

$

Not available

19

532 19 47-29

Plate Steering

$

$

Not available

21

532 18 67-37

Adapter, Wheel Steering

$

$

Not available

22

532 19 48-45

Bushing, Strg. Blk

$

$

Not available

26

532 19 36-52

Insert, Wheel Steering

$

$

Not available

28

817 00 06-12

Screw 3/8-16 x 3/4

$

$

Not available

35

532 19 47-32

Gear, Sector Plate

$

$

Not available

45

819 18 38-12

Washer 9/16 ID x 2-3/8 OD 12 Ga.

$

$

Not available

50

873 90 06-00

Nut Lock 3/8-16 UNC

$

$

Not available

51

873 94 08-00

Nut Hex Jam Toplock 1/2-20 unf

$

$

Not available

53

532 18 89-67

Washer Hardened .793 x 1.637 x .060

$

$

Not available

54

874 76 06-36

Bolt Hex 3/8-16 UNc x 2-1/4

$

$

Not available

55

532 41 47-36

Spacer Brace Axle

$

$

Not available

57

532 40 74-65

Bracket Upstop

$

$

Not available

58

532 19 47-47

Bolt Shoulder Sector Pivot CFM

$

$

Not available

59

532 19 47-48

Washer Thrust Sector Steering

$

$

Not available

60

873 97 10-00

Nut Flange Lock 5/8-11

$

$

Not available

61

532 19 47-40

Draglink LH

$

$

Not available

62

532 19 47-41

Draglink, RH

$

$

Not available

63

817 00 05-12

Screw 5/16-18 x 3/4

$

$

Not available

64

532 19 98-49

Retainer Clip Spring Steering

$

$

Not available

65

532 19 47-34

Brace Axle Front

$

$

Not available

66

871 02 07-48

Bolt Hex Fghd 7/16-14 x 3 Serr

$

$

Not available

67

532 19 47-37

Bushing PM Front Axle

$

$

Not available

68

873 90 07-00

Nut Lock Flange 7/16-14 Gr. 5

$

$

Not available

69

532 19 91-62

Washer 1.5 x .505 x .118

$

$

Not available

70

532 19 61-97

Bracket Deck Susp. Front

$

$

Not available

78

532 05 70-79

Washer Thrust

$

$

Not available
