YTH 20K46 (960450004-04) - Husqvarna 46" Yard Tractor (2007-10) Chassis Parts Diagram

46" Yard Tractor

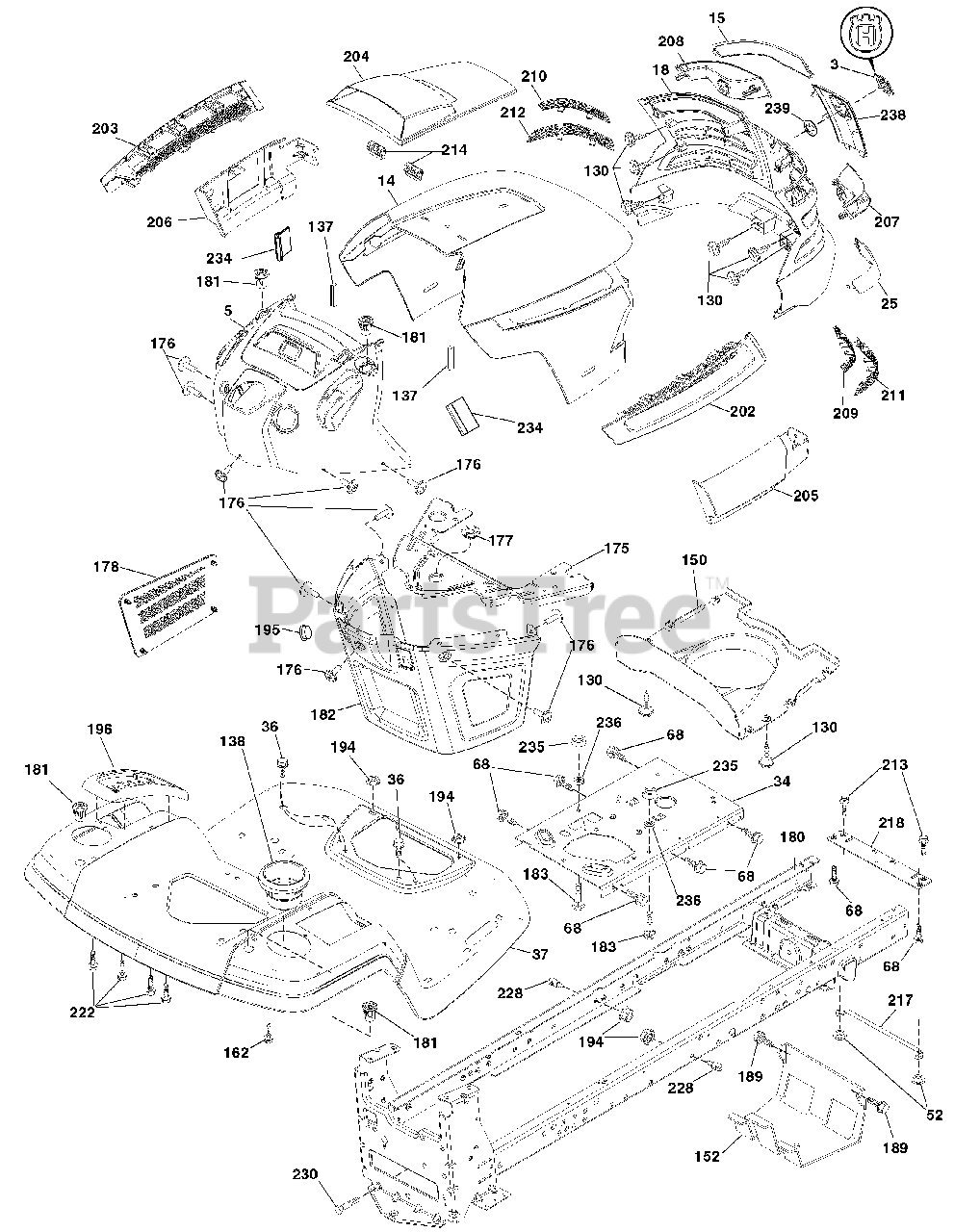

Chassis Parts Diagram

  • Title
3

Husqvarna 532405012

Logo
(Superseded to 532430771)

$8.99

$

In Stock, only 1 left!

0

4

Husqvarna 532199348

Logo
(Superseded to 532404472)

$14.99

$

Usually ships in 3-10 days

0

$

$

Not available

14

Husqvarna 532411046

Hood
(Superseded to 532442396)

$

$

Not available

15

$44.99

$

In Stock, Qty 5

0

18

Husqvarna 532408607

Grille/Lens Asm.

$

$

Not available

25

$44.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532196125

Plate Engine
(Superseded to 580910801)

$68.99

$

In Stock, only 1 left!

0

36

Husqvarna 817060512

Screw 5/16-18 x 3/4
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532404794

Fender
(Superseded to 532441206)

$194.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

Nut Lock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

68

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

130

Husqvarna 532191611

Screw 10 x 3/4 Single Lead-Hex
(Superseded to 532416358)

$

$

Not available

137

Husqvarna 532407590

Bumper Dash

$6.49

$

In Stock, Qty 6

0

138

Husqvarna 532402954

Cupholder
(Superseded to 532439747)

$8.99

$

In Stock, only 1 left!

0

150

$43.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532199535

Shield Browning

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

175

Husqvarna 532196304

Crossmember
(Superseded to 590607702)

$37.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

Screw 10-24 x 5/8

$10.99

$

Usually ships in 3-10 days

0

177

Husqvarna 532195227

Bushing Steering

$6.99

$

In Stock, Qty 11

0

178

Husqvarna 532199782

Cargo Net Asm.

$34.99

$

Usually ships in 3-10 days

0

180

Husqvarna 532195457

Chassis
(Superseded to 579841501)

$250.99

$

Usually ships in 3-10 days

0

181

Husqvarna 532403025

Bushing Mtg. Fender Crgo

$

$

Not available

182

Husqvarna 532194787

Dash Lower
(Superseded to 532406859)

$96.99

$

In Stock, only 2 left!

0

183

Husqvarna 874780520

Bolt Fin Hex 5/16-18 unc x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

189

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

194

Husqvarna 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$

$

Not available

195

Husqvarna 532404137

Plug Hole Dash Lower

$6.49

$

Usually ships in 3-10 days

0

196

Husqvarna 532402843

Console Asm. Deck Lift
(Superseded to 532414579)

$37.99

$

In Stock, only 1 left!

0

202

Husqvarna 532403048

Vent Side Hood RH

$

$

Not available

203

Husqvarna 532403076

Vent Side Hood LH

$

$

Not available

204

Husqvarna 532198904

Vent Top Hood
(Superseded to 532416615)

$19.99

$

Usually ships in 3-10 days

0

205

Husqvarna 532401709

Skirt Hood Side RH

$7.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532401711

Skirt Hood Side LH

$

$

Not available

207

$26.99

$

Usually ships in 3-10 days

0

208

$20.99

$

Usually ships in 3-10 days

0

209

Husqvarna 532199130

Insert Hex Top RH

$5.99

$

Usually ships in 3-10 days

0

210

Husqvarna 532199131

Insert Hex Top Lh

$

$

Not available

211

Husqvarna 532199132

Insert Hex Bottom RH

$2.99

$

Usually ships in 3-10 days

0

212

Husqvarna 532199133

Insert Hex Bottom LH

$3.49

$

Usually ships in 3-10 days

0

213

Husqvarna 874760512

Bolt 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

214

Husqvarna 532199145

Clip Retainer Tinner

$6.49

$

In Stock, only 4 left!

0

217

$13.99

$

In Stock, only 2 left!

0

218

Husqvarna 532196395

X-Piece Hood Stop

$7.99

$

In Stock, only 1 left!

0

222

Husqvarna 532137729

Screw Thdrol 1/4-20 x 5/8

$4.99

$

In Stock, Qty 20+

0

228

Husqvarna 532195161

Stud Fastner

$

$

Not available

230

Husqvarna 532170165

Bolt Shoulder 5/16-18

$4.99

$

In Stock, Qty 5

0

234

Husqvarna 532404742

Bumper Hood

$6.99

$

In Stock, only 2 left!

0

235

Husqvarna 532406129

Spacer Fender

$4.99

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

Nut Lock 5/16-18 UNC

$7.49

$

In Stock, only 1 left!

0

$20.99

$

Usually ships in 3-10 days

0

239

$3.99

$

Usually ships in 3-10 days

0
