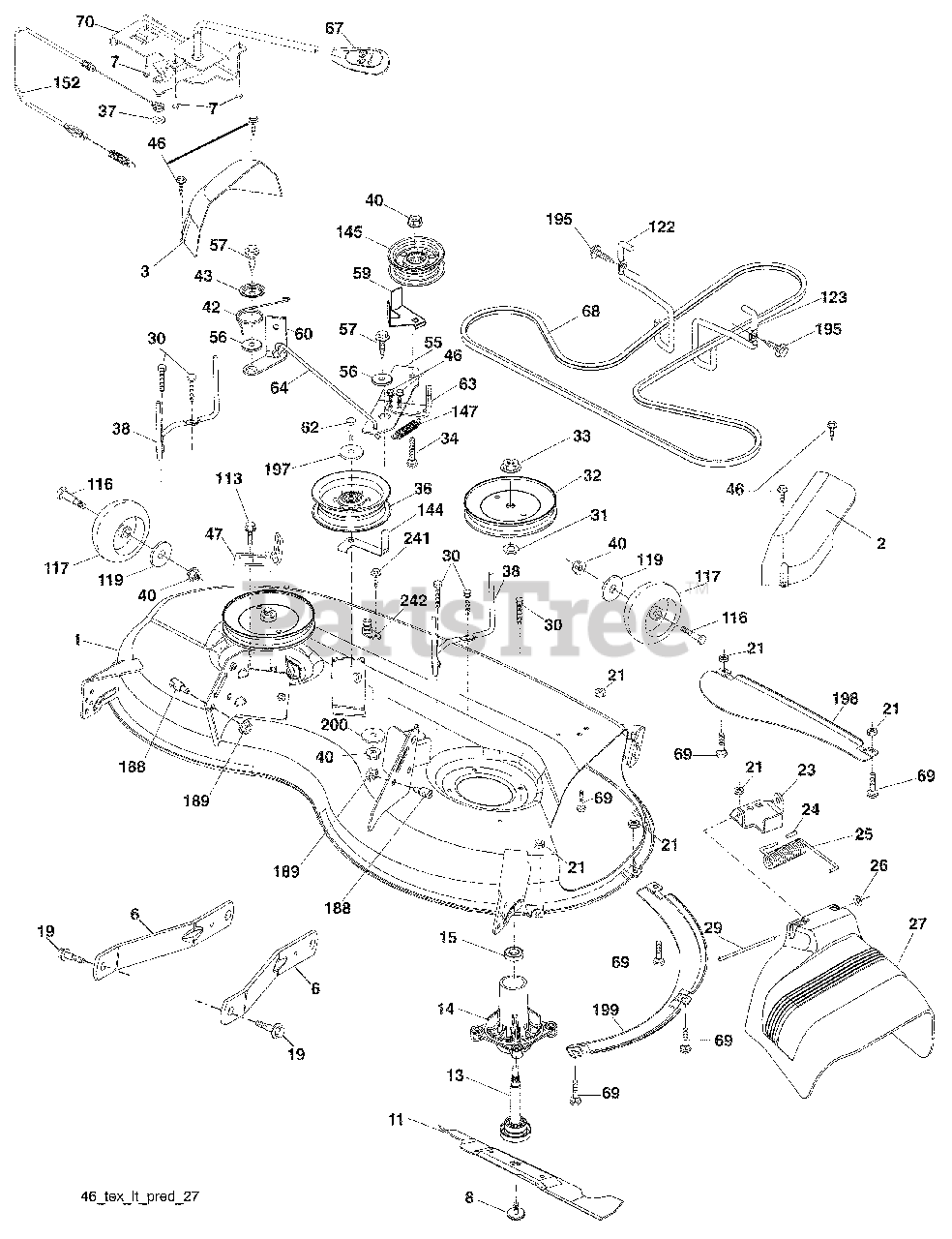

YTH 20K46 (960430033-04) - Husqvarna 46" Yard Tractor (2009-05) Mower Deck Parts Diagram

46" Yard Tractor

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532410863

Mower Housing
(Superseded to 591111601)

$512.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532405506

Cover Mandrel RH

$47.99

$

In Stock, only 4 left!

0

3

Husqvarna 532405507

Cover Mandrel LH

$47.99

$

In Stock, only 2 left!

0

6

Husqvarna 532195186

Arm Suspension

$17.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532416358

Screw #10 x 0.750

$

$

Not available

8

Husqvarna 532193003

Bolt/Washer Asm 7/16-20 unf

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532405380

Blade Mower

$18.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532192872

Shaft Assembly, Mandrel
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

14

Husqvarna 532187281

Housing, Mandrel
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

15

Husqvarna 532110485

Bearing, Ball, Mandrel

$13.99

$

In Stock, Qty 11

0

19

Husqvarna 532196539

Bolt, Shoulder

$7.49

$

In Stock, Qty 20+

0

21

Husqvarna 873680500

Nut
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532192557

Bracket, Deflector

$9.49

$

In Stock, Qty 8

0

24

Husqvarna 532105304

Cap, Sleeve

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532197026

Spring, Torsion, Deflector

$10.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

Nut, Push

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532405357

Shield, Deflector

$74.99

$

In Stock, Qty 5

0

29

Husqvarna 532131491

Rod, Hinge
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

Screw Thdrol Rolling Wsh Hd
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Husqvarna 532187690

Washer, Spacer

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532197473

Pulley, Mandrel
(Superseded to 532195945)

$14.99

$

In Stock, Qty 16

0

33

Husqvarna 532400234

Nut, Toplock, Flanged
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

34

Husqvarna 872110612

Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532197379

Pulley, Idler, Flat
(Superseded to 532196106)

$39.99

$

In Stock, Qty 14

0

37

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 532199189

Keeper Belt LH Mandrel
(Superseded to 589676103)

$7.99

$

In Stock, Qty 12

0

40

Husqvarna 873900600

Nut, Lock Flg. 3/8-16 unc
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 532198410

Spring Trosion Brake

$6.49

$

In Stock, Qty 6

0

43

Husqvarna 532197256

Spring Torsion Retainer

$6.49

$

In Stock, Qty 7

0

46

Husqvarna 532137729

Screw

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 532197250

Bracket Clutch Cable

$6.49

$

In Stock, only 2 left!

0

55

Husqvarna 532197249

Arm, Idler

$

$

Not available

56

Husqvarna 532199092

Spacer, Retainer

$6.99

$

In Stock, Qty 11

0

57

Husqvarna 817000616

Screw Hexwsh Thd 3/8-16 x 1

$7.49

$

In Stock, only 3 left!

0

59

Husqvarna 532141043

Guard, Tuv Idler (94)
(Superseded to 531165901)

$5.99

$

In Stock, only 2 left!

0

60

Husqvarna 532199471

Arm Brake Mower LH
(Superseded to 532400132)

$17.99

$

In Stock, only 3 left!

0

62

Husqvarna 874520636

Bolt 3/8-16 unc x 2-1/4 Gr. 5

$3.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532199477

Arm Brake Mower
(Superseded to 532199478)

$17.99

$

In Stock, Qty 16

0

64

Husqvarna 532403012

Linkage Brake

$12.99

$

In Stock, only 1 left!

0

67

Husqvarna 532405143

Handle, Clutch Cable
(Superseded to 584453101)

$56.99

$

In Stock, Qty 20+

0

68

Husqvarna 872140505

V-Belt
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

69

Husqvarna 532406563

Bolt

$

$

Not available

70

Husqvarna 817000510

Clutch Asm. Cable

$7.49

$

In Stock, Qty 12

0

113

Husqvarna 532193406

Screw 5/16-18
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

116

Husqvarna 532174873

Bolt, Shoulder
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

117

Husqvarna 819132012

Wheel, Gauge
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

119

Husqvarna 532197258

Washer 13/32 x 1-1/4 x 12 Ga.
(Superseded to 531169501)

$7.49

$

In Stock, only 4 left!

0

122

Husqvarna 532197259

Keeper Belt Eng. LH

$

$

Not available

123

Husqvarna 532199204

Keeper Belt Eng. RH

$6.49

$

Usually ships in 3-10 days

0

144

Husqvarna 532193197

Keeper Belt
(Superseded to 532177968)

$31.99

$

In Stock, Qty 9

0

145

Husqvarna 532401872

Pulley Idler

$5.99

$

In Stock, Qty 7

0

147

Husqvarna 532408319

Spring Return
(Superseded to 532435110)

$37.99

$

In Stock, Qty 7

0

152

Husqvarna 532195161

Cable Clutch Manual w/Spr.

$

$

Not available

188

Husqvarna 873900500

Stud Fastener
(Superseded to 583612701)

$

$

Not available

189

Husqvarna 817000612

Nut Lock Hex Flange

$4.99

$

In Stock, only 2 left!

0

195

Husqvarna 819131312

Screw 3/8-16 x 3/4
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

197

Husqvarna 532403149

Washer 13/32 x 13/16 x 12 Ga.

$

$

Not available

198

Husqvarna 532403150

Baffle Center Front

$

$

Not available

199

Husqvarna 532413524

Baffle Front RH

$

$

Not available

200

Husqvarna 532152927

Washer 13/32 x 1 x 1/2 11 Ga.

$7.49

$

In Stock, only 2 left!

0

241

Husqvarna 532415598

Screw

$8.99

$

In Stock, Qty 17

0

242

Husqvarna 532416405

Washout Port

$10.99

$

In Stock, Qty 6

0

- -

Husqvarna 532192870

Coupling, Quick Connect
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

Mandrel Assembly

Note: (Includes housing, shaft assembly, and bearing only - pulley/nut/washer and blade bolt/washers not included)

$

$

Not available

Husqvarna 532408478

Replacement Mower, Complete
(Superseded to 532439672)

$970.99

$

Usually ships in 3-10 days

0
