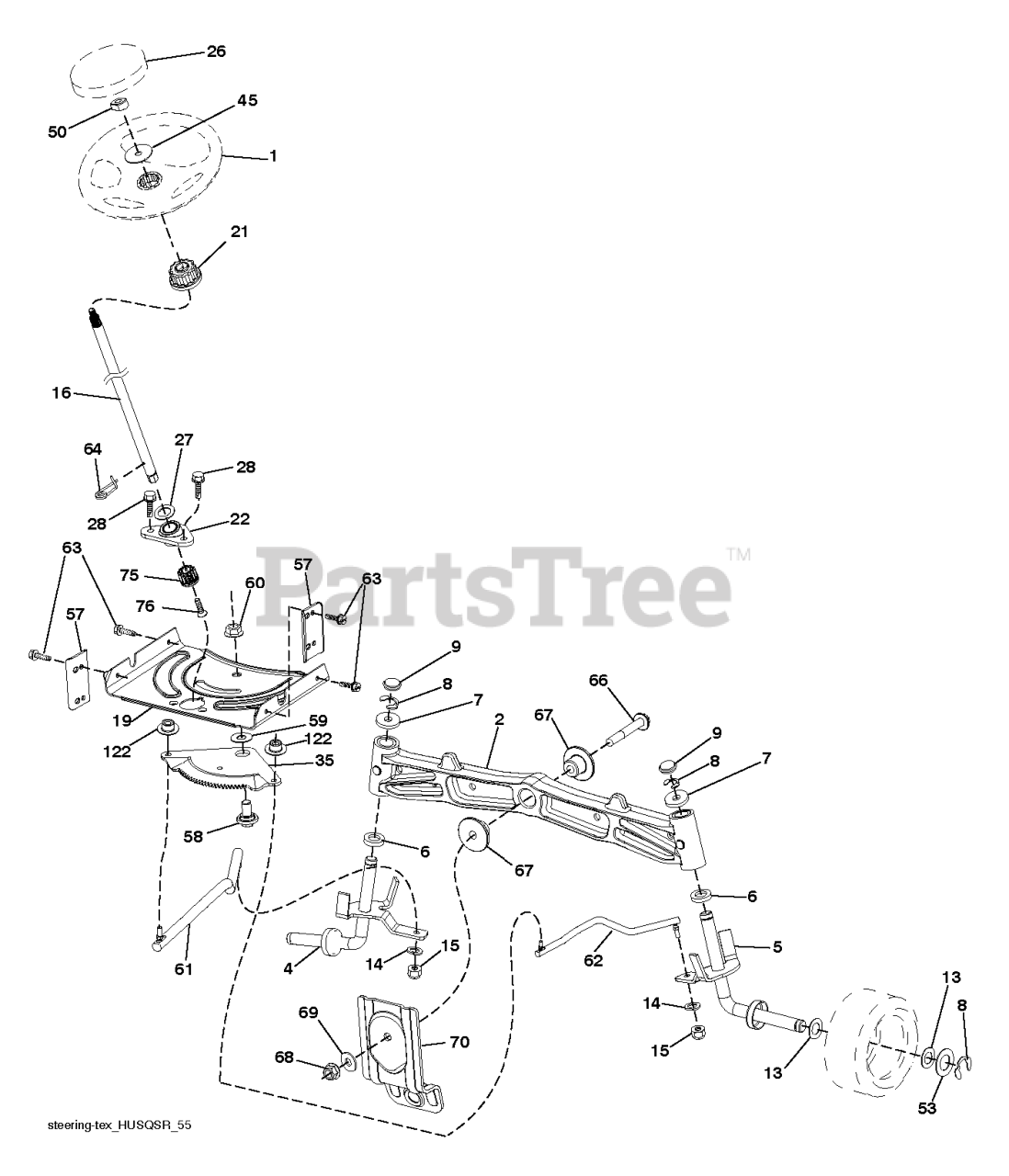

YTH 20K42 - Husqvarna 42" Yard Tractor (Original) STEERING Parts Diagram

42" Yard Tractor

STEERING Parts Diagram

  • Title

5

Husqvarna 532403088

SPINDLE.WELDED.RH.15"T
(Superseded to 538691201)

Note: RH

$22.99

$

In Stock, only 2 left!

0

122

Husqvarna 583576601

CAP.GEAR.SECTOR.TEX

$6.49

$

In Stock, only 3 left!

0

2

Husqvarna 532195968

AXLE.CAST.IRON
(Superseded to 532413591)

$145.99

$

In Stock, only 2 left!

0

13

Husqvarna 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

68

Husqvarna 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 13

0

60

Husqvarna 873971000

NUT FLANGE LOCK 5/8-11
(Superseded to 583612801)

$7.49

$

In Stock, only 1 left!

0

9

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 9

0

59

Husqvarna 532194748

WASHER.THURST.SECTOR.S

$7.49

$

In Stock, only 3 left!

0

69

Husqvarna 532199162

WASHER.1.5X.505X.118

$6.49

$

In Stock, only 1 left!

0

27

Husqvarna 532121749

WASHER

Note: For 96041027600, 96041027601

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

7

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 819211616

WASHER LT

Note: For 96043027400, 96043027500

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532194729

PLATE.STEER.DDL.NLT/NG

$18.99

$

Usually ships in 3-10 days

0

70

Husqvarna 585338801

BRACKET.FRT.DECK.SUSP.RR.MT431

$9.99

$

Usually ships in 3-10 days

0

76

Husqvarna 580683601

SCREW HEAD SOCKET LRVB

Note: For 96043027400, 96043027500

$4.99

$

In Stock, only 1 left!

0

45

Husqvarna 819183812

WASHER 9/16"ID, 2 3/8"OD

Note: For 96041027600, 96041027601

$9.49

$

Usually ships in 3-10 days

0

28

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

75

Husqvarna 587738906

KIT.SRVC.STEERINGSHAFT.PINION

Note: For 96043027400, 96043027500

$5.99

$

In Stock, only 2 left!

0

50

Husqvarna 873940800

NUT.HEX.1/2-20

Note: For 96041027600, 96041027601

$7.49

$

In Stock, only 4 left!

0

67

Husqvarna 532194737

BUSHING.PM.FRONT AXLE

$

$

Not available

14

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 19

0

21

Husqvarna 587738905

KIT.SRVC.STEERINGSHAFT.ADAPTER

$9.49

$

In Stock, Qty 8

0

4

Husqvarna 532403087

SPINDLE.WELDED.LH.15"TEX
(Superseded to 596873601)

Note: LH

$17.99

$

In Stock, Qty 12

0

62

Husqvarna 588794502

LINK.ASM.DRAG.ADJUST.RH.PLATED

Note: For 96043027400, 96043027500. RH.

$

$

Not available

1

Husqvarna 532439740

WHEEL.STEER.HUSQ.SR.498.OVMLD

$93.99

$

In Stock, only 1 left!

0

61

Husqvarna 532194740

DRAGLINK.LH.BALLSTUD.D
(Superseded to 597047801)

Note: For 96041027600, 96041027601. LH.

$12.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532407465

BRACKET.UPSTOP.TEX

$6.99

$

In Stock, only 1 left!

0

66

Husqvarna 871020748

BOLT HEX FGHD 7/16-14 X 3 SERR

$6.49

$

In Stock, only 4 left!

0

26

Husqvarna 532439743

INSERT.CAP.WHL.STRG.HUSQ.PREM

$10.99

$

In Stock, only 1 left!

0

35

Husqvarna 532194732

GEAR.SECTOR.PLATE.DDL.

$31.99

$

In Stock, Qty 20+

0

50

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

Note: For 96043027400, 96043027500

$4.99

$

In Stock, Qty 20+

0

61

Husqvarna 588794402

LINK.ASM.DRAG.ADJUST.LH.PLATED

Note: For 96043027400, 96043027500. LH.

$

$

Not available

62

Husqvarna 532194741

DRAGLINK.RH.BALLSTUD.D

Note: For 96041027600, 96041027601. RH.

$13.99

$

In Stock, Qty 20+

0

64

Husqvarna 532199849

RETAINER.CLIP.SPRING.S

$6.49

$

In Stock, Qty 8

0

22

Husqvarna 587738901

KIT.SRVC.STEERINGSHAFT.LWRBSHG

$17.99

$

In Stock, only 4 left!

0

45

Husqvarna 587016401

WASHER.3/8ID.2-3/8OD.12GA.PLTD

Note: For 96043027400, 96043027500

$4.99

$

Usually ships in 3-10 days

0

63

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

16

Husqvarna 587738904

KIT.SRVC.STEERINGSHAFT.2HISHFT

$40.99

$

In Stock, Qty 14

0

8

Husqvarna 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532194747

BOLT.SHOULDER.SECTOR.P

$9.49

$

In Stock, only 3 left!

0
