YTH 20K42 - Husqvarna 42" Yard Tractor (Original) ENGINE Parts Diagram

42" Yard Tractor

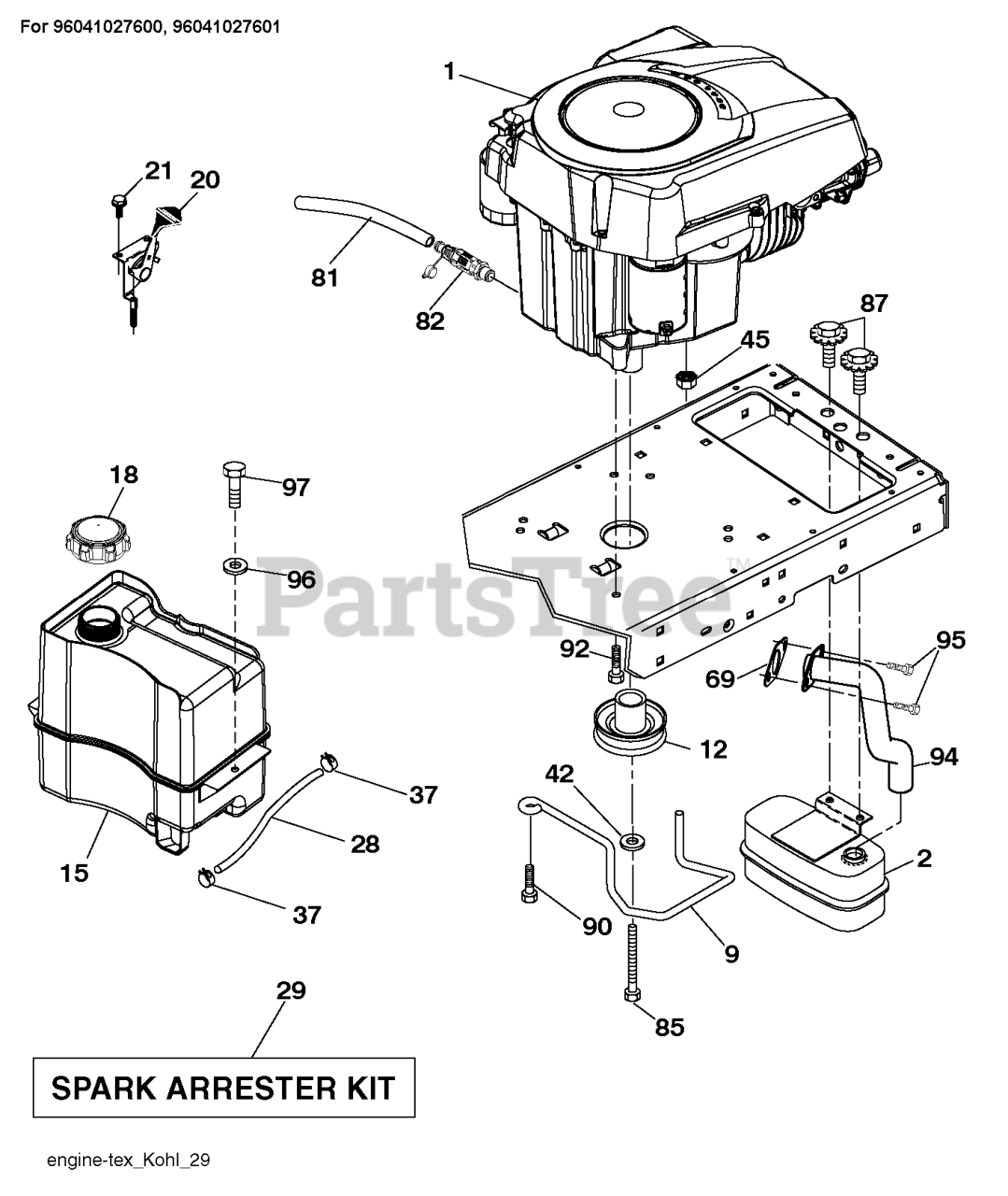

ENGINE Parts Diagram

  • Title
21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

94

Husqvarna 532188654

RP.TUBE.EXHAUST.KOHL.COURAGE
(Superseded to 583955301)

$34.99

$

In Stock, only 1 left!

0

18

Husqvarna 529989702

FUEL CAP
(Superseded to 529989701)

Note: Fits 2.00" filler neck

$20.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

20

Husqvarna 532401508

CONTROL.TH/CK.COBRA.KO

$34.99

$

In Stock, only 1 left!

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, Qty 5

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

2

Husqvarna 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

Note: For 96041027600

$45.99

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

$11.99

$

In Stock, Qty 8

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 6

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

95

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 17

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

87

Husqvarna 537171877

BOLT 5/1618UNC X 3/4 W/ SEMS
(Superseded to 532171877)

$7.49

$

In Stock, Qty 6

0

18

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

Note: Fits 2.75" filler neck

$26.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532405471

PULLY ENGINE
(Superseded to 586478501)

$40.99

$

In Stock, only 2 left!

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

2

Husqvarna 590645301

MUFFLER.ASM.SINGLE
(Superseded to 590645302)

Note: For 96041027601

$45.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532185909

GASKET.EXHAUST.KOHLER

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 584908001)

$

$

Not available

1

000000000

Note: ENGINE KOHLER MODEL SV600-3229 (438326)

$

$

Not available

15

Husqvarna 581290101

TANK.ASSEMBL.2.5GAL.NON-EPA

Note: Fits 2.75" filler neck

$120.99

$

In Stock, only 1 left!

0
