YTH 20F42T (960450002-01) - Husqvarna 42" Yard Tractor (2006-02) Engine Parts Diagram

42" Yard Tractor

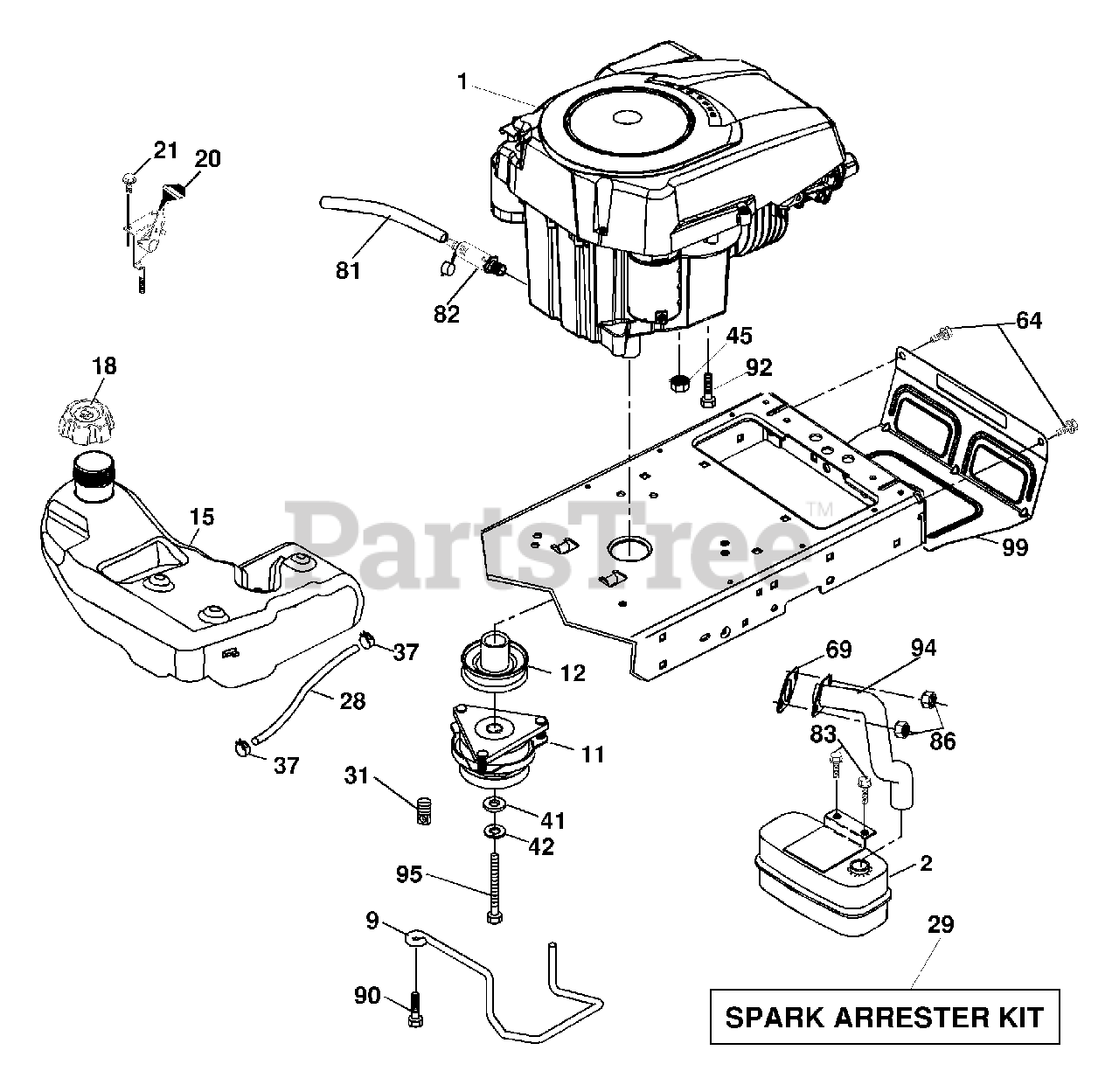

Engine Parts Diagram

  • Title
1

Engine Kohler Model No. SV600

$

$

Not available

$45.99

$

In Stock, only 2 left!

0

9

Husqvarna 532194320

Keeper Belt Engine
(Superseded to 584908001)

$

$

Not available

11

Husqvarna 532180505

Clutch Ogura
(Superseded to 583389701)

$399.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532405097

Pulley Engine

$100.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532193499

Tank Fuel 4.0

$145.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532194267

Cap Asm
(Superseded to 584248702)

$17.99

$

In Stock, only 1 left!

0

20

Husqvarna 532401508

Control Throttle

$34.99

$

In Stock, only 1 left!

0

21

Husqvarna 817720408

Screw Thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532401135

Fuel Line
(Superseded to 587044864)

$20.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

Spark Arrester Kit

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532145006

Clip Push-In

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

Clamp Hose

$7.49

$

In Stock, only 4 left!

0

41

Husqvarna 532126197

Washer 1-1/2 OD x 15/32 ID x .250

$8.99

$

In Stock, only 3 left!

0

42

Husqvarna 810040700

Washer Lock 7/16
(Superseded to 539990247)

$

$

Not available

45

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

64

Husqvarna 817000612

Screw Hexwsh Thdrol 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

$4.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532148456

Tube Drain Oil Easy

$6.99

$

In Stock, only 4 left!

0

82

Husqvarna 532181654

Plug Drain Oil
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

83

Husqvarna 532171877

Bolt 5/16-18 unc x 3/4 w/Sems

$7.49

$

In Stock, Qty 5

0

86

Husqvarna 532184362

Nut Hex Flange Toplock M8-1.25

$6.49

$

In Stock, only 1 left!

0

90

Husqvarna 817000616

Screw 3/8-16 x 1

$7.49

$

In Stock, only 3 left!

0

92

Husqvarna 817120616

Screw 3/8-16 x 1

$5.99

$

In Stock, Qty 17

0

94

Husqvarna 532188654

Tube Exhaust
(Superseded to 583955301)

$34.99

$

In Stock, only 2 left!

0

95

Husqvarna 532173937

Bolt Hex 7/16-20 x 4 Gr. 5
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

99

Husqvarna 532194329

Shield Browning/Debris

$20.99

$

Usually ships in 3-10 days

0
