YTH 20F42T (917279240) - Husqvarna 42" Yard Tractor (2006-05) CHASSIS & ENCLOSURES Parts Diagram

42" Yard Tractor

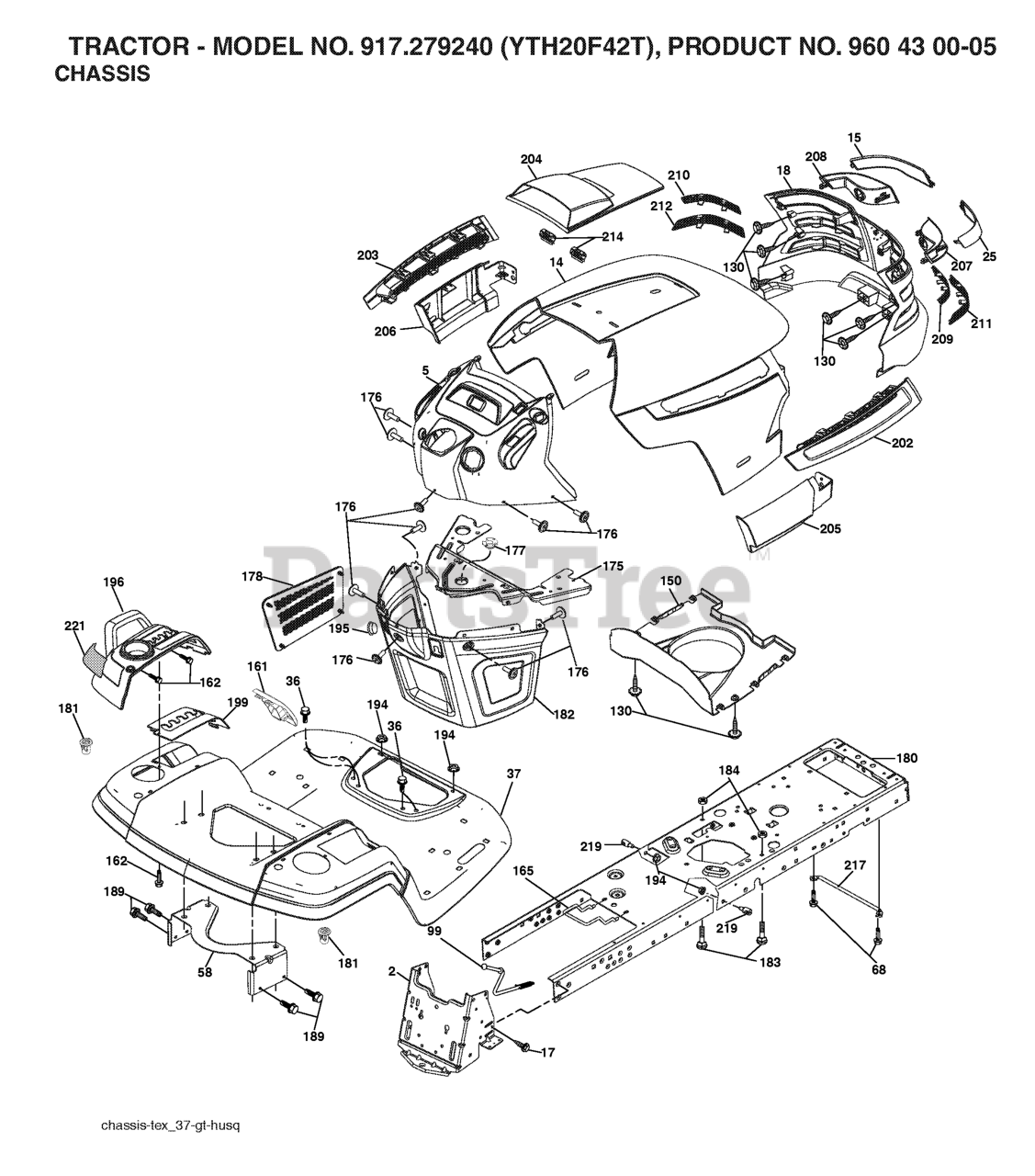

CHASSIS & ENCLOSURES Parts Diagram

  • Title
184

Husqvarna 532195780

SPACER.FENDER

$7.49

$

Usually ships in 3-10 days

0

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$6.49

$

In Stock, only 4 left!

0

210

Husqvarna 532199131

INSERT.HEX.GRILL.HUSQ.

$

$

Not available

221

Husqvarna 532198909

REFLECTOR.LH.TEX GT HU

$17.99

$

In Stock, only 1 left!

0

181

Husqvarna 532403025

BUSHING.MNT.FEND.CRGO.

$

$

Not available

199

Husqvarna 532198259

PLATE.DECK.LIFT.HUSQVARNA.GT

$26.99

$

Usually ships in 3-10 days

0

130

Husqvarna 532191611

SCREW
(Superseded to 532416358)

$

$

Not available

18

Husqvarna 532404821

GRILLE.ASM.TX.GT.HUSQ
(Superseded to 532408607)

$

$

Not available

203

Husqvarna 532403076

VENT.SIDE.HOOD.HUSQ.LH.GRAY

$

$

Not available

205

Husqvarna 532401709

SKIRT.HOOD.SIDE.HUSQ.RH.GREY

$7.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532194314

BRKT.SUPPORT.FNDR/TANK

$27.99

$

Usually ships in 3-10 days

0

182

Husqvarna 532194787

DASH.LOWER.COMMON.12V.
(Superseded to 532406859)

$96.99

$

In Stock, only 2 left!

0

68

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

204

Husqvarna 532198904

VENT.TOP.HOOD.HUSQVARN
(Superseded to 532416615)

$19.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532198907

LENS.LH.TEX.GT.HUSQ.CL

$44.99

$

In Stock, Qty 5

0

209

Husqvarna 532199130

INSERT.HEX.GRILL.HUSQ.GREY

$5.99

$

Usually ships in 3-10 days

0

211

Husqvarna 532199132

INSERT.HEX.GRILL.HUSQ.

$2.99

$

Usually ships in 3-10 days

0

165

Husqvarna 532194330

SUPPORT.TANK.REAR.B/TE

$20.99

$

Usually ships in 3-10 days

0

177

Husqvarna 532195227

BUSHING, STEERING

$6.99

$

In Stock, Qty 14

0

217

Husqvarna 532156524

ROD PIVOT CHASSIS/HOOD
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

14

Husqvarna 532401824

HOOD.PNT.HUSQVARNA.GT.
(Superseded to 532442396)

$

$

Not available

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

202

Husqvarna 532403048

VENT.SIDE.HOOD.HUSQ.RH.GREY

$

$

Not available

212

Husqvarna 532199133

INSERT.HEX.GRILL.HUSQ.

$3.49

$

Usually ships in 3-10 days

0

219

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

5

Husqvarna 532403205

DASH.HUSQ.UPR.ELE.SVMD

$

$

Not available

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532401711

SKIRT.HOOD.SIDE.HUSQ.LH.GREY

$

$

Not available

2

Husqvarna 532401140

DRAWBAR.TGB/TGW
(Superseded to 580434401)

$120.99

$

In Stock, only 1 left!

0

208

Husqvarna 532197199

BEZEL.LH.TEX.GT.HUSQ

$20.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532401825

FENDER.PNT.TX.GT.CH/FW.ORANGE
(Superseded to 532441208)

$250.99

$

Usually ships in 3-10 days

0

150

Husqvarna 532198513

AIR.DUCT.TEXGT.HUSQ.SV

$43.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532198253

ROD.ASM.BYPASS.0610.FE
(Superseded to 532406642)

$

$

Not available

161

Husqvarna 532401826

CONSOLE.FUEL.WINDOW.HU

$7.99

$

In Stock, Qty 5

0

180

Husqvarna 532194260

CHASSIS.STAMPING.LT/GT
(Superseded to 582033101)

$265.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532198906

LENS.RH.TEX.GT.HUSQ.CL

$44.99

$

In Stock, only 1 left!

0

194

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

183

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

162

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

175

Husqvarna 532196304

PLATE.CROSSMEMBER.HUSQ
(Superseded to 590607702)

$37.99

$

Usually ships in 3-10 days

0

178

Husqvarna 532199782

CARGO.ASM.NET.TXGT.W/C

$34.99

$

Usually ships in 3-10 days

0

196

Husqvarna 532400299

RP CONSOLE.ASM.DECKLFT.W/
(Superseded to 532439716)

$121.99

$

Usually ships in 3-10 days

0

195

Husqvarna 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$6.49

$

Usually ships in 3-10 days

0

207

Husqvarna 532197198

BEZEL.RH.TEX.GT.HUSQ

$26.99

$

Usually ships in 3-10 days

0
