YTH 20B42T (960430020-00) - Husqvarna 42" Yard Tractor (2006-01) Engine Parts Diagram

42" Yard Tractor

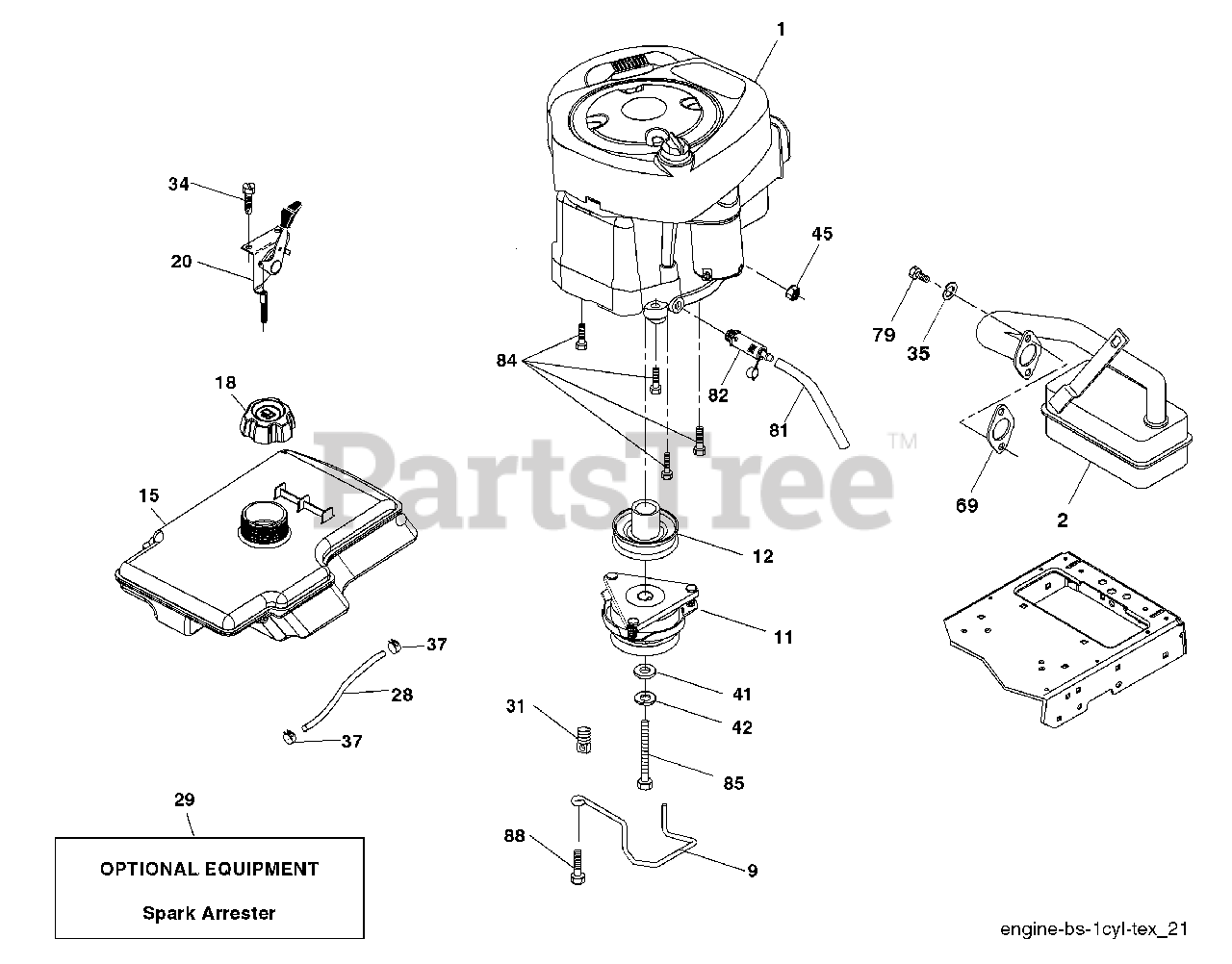

Engine Parts Diagram

  • Title
1

Engine B&S Model No. 31P977

$

$

Not available

2

$45.99

$

In Stock, only 3 left!

0

9

Husqvarna 532194319

Keeper Belt Engine

$13.99

$

In Stock, only 1 left!

0

11

Husqvarna 532180505

Clutch Ogura
(Superseded to 583389701)

$399.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532194338

Pulley Engine

$

$

Not available

15

Husqvarna 532197024

Tank Fuel
(Superseded to 532194264)

$

$

Not available

18

Husqvarna 532195951

Cap Asm
(Superseded to 584248701)

$17.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532401508

Control Throttle

$34.99

$

In Stock, only 1 left!

0

28

Husqvarna 532401135

Fuel Line
(Superseded to 587044864)

$20.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

Spark Arrester Kit

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532145006

Clip Push-In Hinged

$6.49

$

Usually ships in 3-10 days

0

34

Husqvarna 817720408

Screw thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 810010500

Washer Split

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

Clamp Hose

$7.49

$

In Stock, only 4 left!

0

41

Husqvarna 532126197

Washer 1-1/2 OD x 15/32 ID x .250

$8.99

$

In Stock, only 3 left!

0

42

Husqvarna 810040700

Washer Lock 7/16
(Superseded to 539990247)

$

$

Not available

45

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

69

Husqvarna 532165291

Gasket
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532192334

Screw Socket Head 5/16-18 x .75
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

81

Husqvarna 532148456

Tube Drain Oil Easy

$6.99

$

In Stock, only 4 left!

0

82

Husqvarna 532181654

Plug Drain Oil
(Superseded to 532428287)

$18.99

$

In Stock, only 1 left!

0

84

Husqvarna 817060620

Screw 3/8-16 x 1-1/4

$7.49

$

In Stock, Qty 11

0

85

Husqvarna 532173937

Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 Thr
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

88

Husqvarna 817060616

Screw 3/8-16 x 1
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0
