YTH 2048 (954567086-A) - Husqvarna 48" Yard Tractor (2001-02) Engine Parts Diagram

48" Yard Tractor

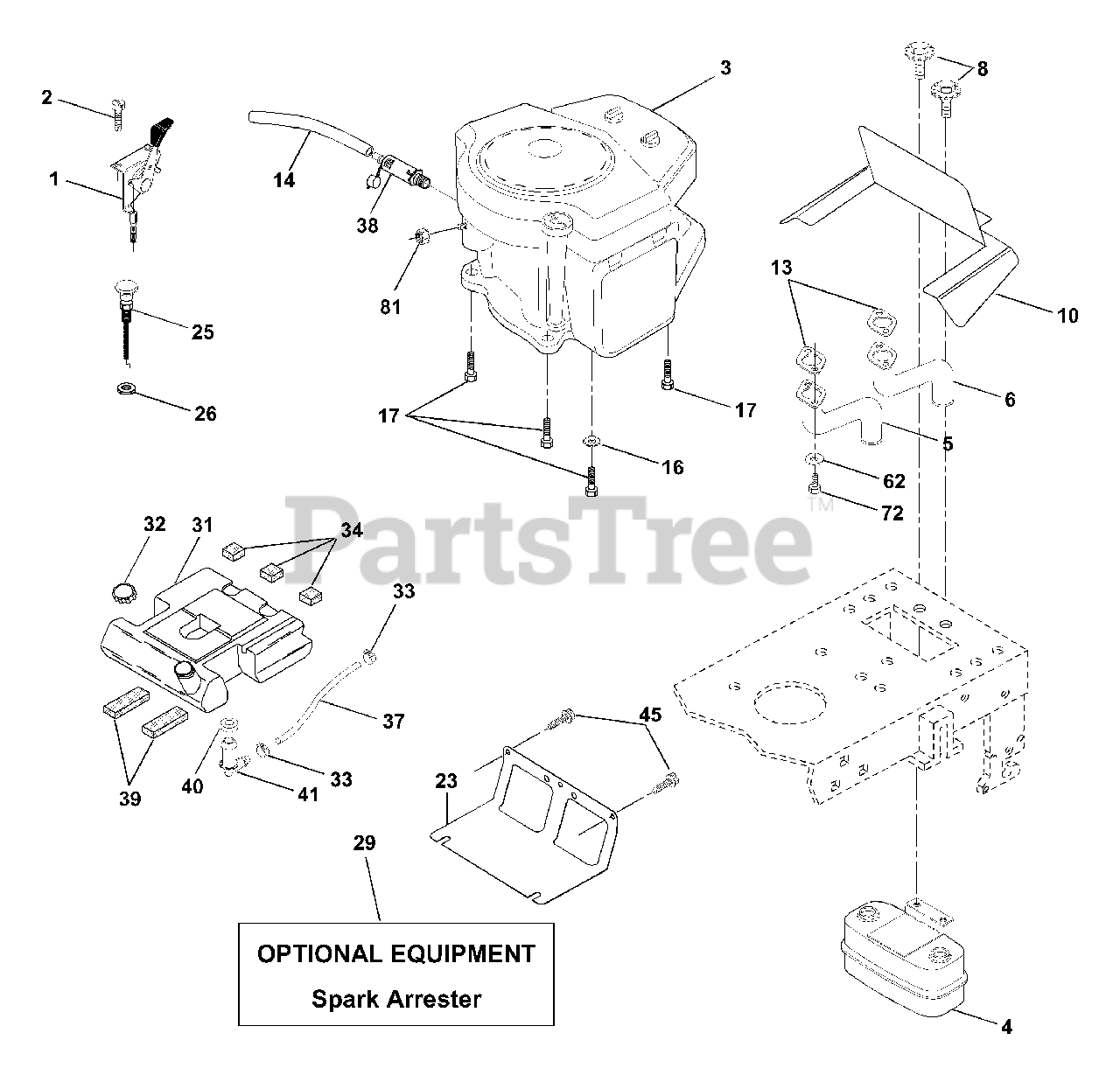

Engine Parts Diagram

  • Title
1

Husqvarna 532170771

Control Throt Flg 180 LH

$

$

Not available

2

Husqvarna 817720410

Screw Hex Thd Cut 1/4-20x5/8 T
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

3

Engine B&S

Note: Model 407777; (Order Parts from Engine Manufacturer)

$

$

Not available

4

Husqvarna 532149723

Muffler Asm Twin Lo-Tone

$74.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532159955

Exhaust Tube LH
(Superseded to 581881101)

$44.99

$

In Stock, only 1 left!

0

6

Husqvarna 532160589

Exhaust Tube RH
(Superseded to 581881001)

$27.99

$

In Stock, only 1 left!

0

8

Husqvarna 532171877

Bolt 5/16-18unc x 3/4 W/Sems

$7.49

$

In Stock, Qty 5

0

10

Husqvarna 532162797

Shield Browning B&S Intek II
(Superseded to 532146629)

$15.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532165391

Gasket Muffler

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532148456

Tube Drain Oil Easy

$6.99

$

In Stock, only 3 left!

0

16

Husqvarna 811050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

17

Husqvarna 817490624

Screw Thdrol 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532169837

Shield Browning

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532145996

Choke Control 37"

$

$

Not available

26

Husqvarna 873920600

Nut, Keps 3/8-24 Unf

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

Kit Spark Arrestor (Flat Scrn)

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532151346

Tank Fuel 3 50 Rear

$96.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532140527

Cap Asm Fuel Top N/Lany Vented
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

Clamp Hose Blk

$7.49

$

In Stock, only 1 left!

0

34

Husqvarna 532106082

Pad, Spacer

$

$

Not available

37

Husqvarna 532142158

Line Fuel
(Superseded to 587044854)

$17.99

$

In Stock, only 2 left!

0

38

Husqvarna 532148315

Plug Drain Oil Easy
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

39

Husqvarna 532109227

Pad, Idler

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532124952

Bushing
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532139277

Stem Tank Fuel

$8.99

$

In Stock, Qty 7

0

45

Husqvarna 817000612

Screw Hexwsh Thdr 3/8-16 x 3/4

$4.99

$

Usually ships in 3-10 days

0

62

Husqvarna 810040500

Washer Lock Hvy Hlcl Spr 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

72

Husqvarna 871070512

Screw Hex Hd Cap 5/16-18 x 3/4
(Superseded to 532192334)

$

$

Not available

81

Husqvarna 873510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0
