YTH 2042 (960430315-00) - Husqvarna 42" Yard Tractor (2019-07) MOWER DECK / CUTTING DECK Parts Diagram

42" Yard Tractor

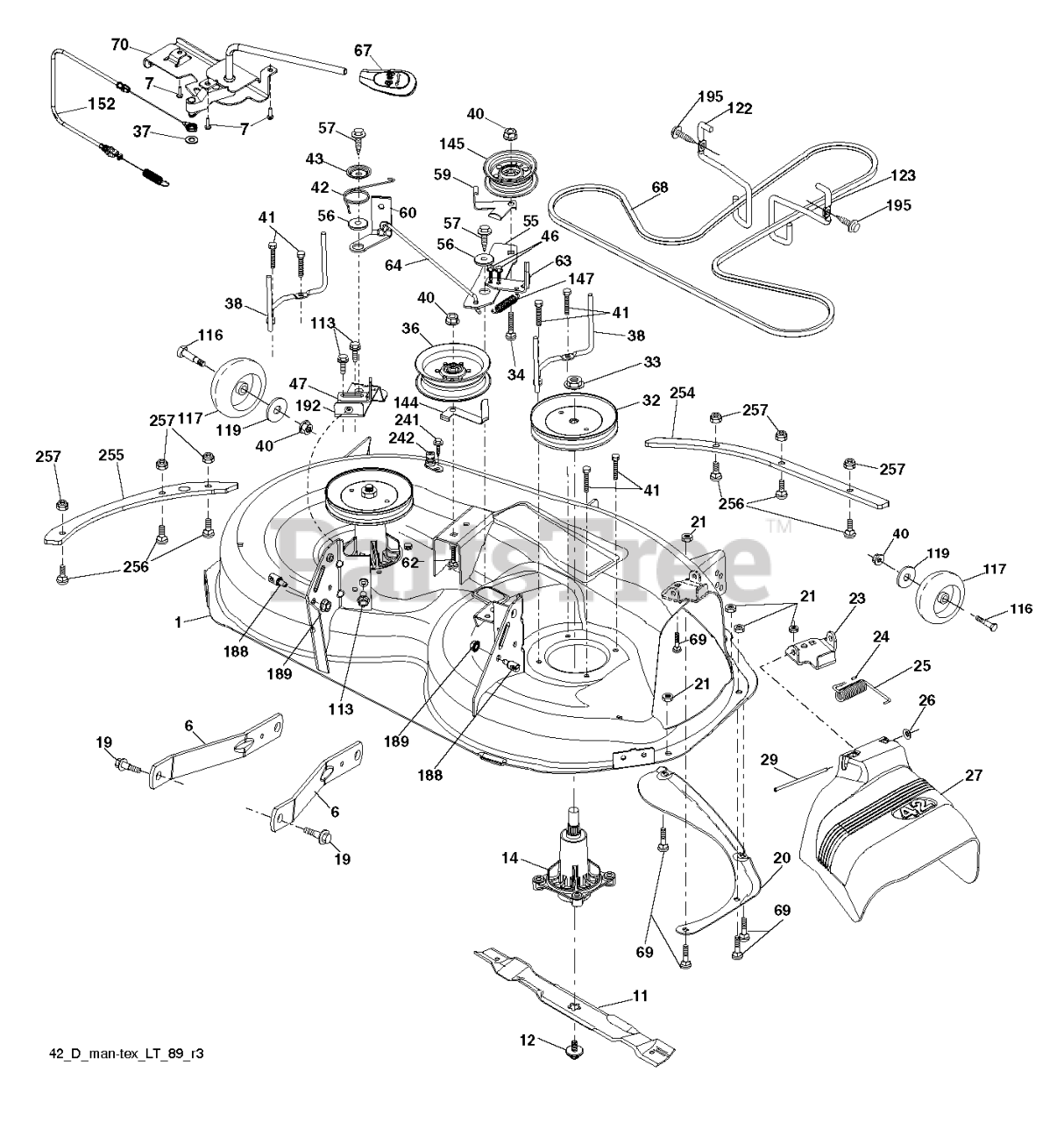

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

55

Husqvarna 532437110

IDLER.ARM.42"

$

$

Not available

147

Husqvarna 532401971

RETURN SPRING

$5.99

$

In Stock, Qty 6

0

47

Husqvarna 532197250

BRKT.CLUTCH.CABLE

$6.49

$

Usually ships in 3-10 days

0

192

Husqvarna 532197260

BRKT.BRAKE.STAND.LH.

Note: LH

$

$

Not available

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 596136301

Bolts

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 5

0

25

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 15

0

12

Husqvarna 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

195

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532159770

BAFFLE.VORTEX

$

$

Not available

33

Husqvarna 596134801

Nuts

$4.99

$

In Stock, Qty 15

0

60

Husqvarna 532197261

ARM BRAKE MOWER
(Superseded to 597074201)

$14.99

$

In Stock, Qty 14

0

38

Husqvarna 589676102

KEEPER.BLT.PNT.MNDRL.PULL.6.25
(Superseded to 589676103)

$7.99

$

In Stock, Qty 12

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, only 2 left!

0

188

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

69

Husqvarna 596136401

Bolts

$3.99

$

In Stock, Qty 20+

0

--

Husqvarna 532447893

DECK ASM SVC.42".CC.2GWB.ORANG
(Superseded to 598602801)

$398.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

34

Husqvarna 596136101

GSPW Bolts

$3.99

$

In Stock, Qty 5

0

56

Husqvarna 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

145

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, only 3 left!

0

241

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

68

Husqvarna 532429636

BELT.DECK.DRIVE.42"
(Superseded to 598559101)

$51.99

$

In Stock, Qty 19

0

113

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

37

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 532138971

42" HI-LIFT BLADE

Note: FOR BAGGING OR DISCHARGING

$20.99

$

In Stock, Qty 20+

0

70

Husqvarna 532199972

CLUTCH.ASM.MANUAL.YT.PREDATORQ

$87.99

$

In Stock, Qty 8

0

117

Husqvarna 589527401

WHEEL.GAUGE.RALLY.NARROW

$11.99

$

In Stock, Qty 10

0

189

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, only 2 left!

0

1

Husqvarna 532447895

REPAIR KIT KIT.SRV.WLDMENT.42
(Superseded to 598602801)

$398.99

$

Usually ships in 3-10 days

0

116

Husqvarna 596434402

Bolts

$4.99

$

In Stock, only 3 left!

0

122

Husqvarna 532197258

KEEPER BELT ENGINE LH
(Superseded to 531169501)

Note: LH

$7.49

$

In Stock, Qty 6

0

29

Husqvarna 595297001

Rods

$5.99

$

In Stock, Qty 20+

0

42

Husqvarna 532198410

SPRING.TORSION.BRAKE

$6.49

$

In Stock, Qty 8

0

43

Husqvarna 532197256

SRPING.TORSION.RETAINE

$6.49

$

In Stock, Qty 8

0

64

Husqvarna 532199918

LINKAGE.BRAKE.ASM.ZINC

$24.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 20+

0

14

Husqvarna 587819701

KIT.MANDREL.NONGREASE.TALL

$56.99

$

In Stock, Qty 20+

0

41

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

119

Husqvarna 596134901

GSPH

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

257

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

6

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 5

0

256

Husqvarna 592807801

BOLT CUP HEAD SQUARE NECK 1/4-

$4.99

$

In Stock, only 3 left!

0

21

Husqvarna 596040501

Hardware

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 532403004

SHIELD.DEFLECTOR.MOWER.42"BLAC

$44.99

$

Usually ships in 3-10 days

0

144

Husqvarna 532199204

KEEPER.BELT.MOWER

$6.49

$

Usually ships in 3-10 days

0

123

Husqvarna 532197259

KEEPER BELT RH

Note: RH

$

$

Not available

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

32

Husqvarna 532197473

PULLEY.MANDREL.5.438.PD
(Superseded to 532195945)

$14.99

$

In Stock, Qty 20+

0

242

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 10

0

67

Husqvarna 532403012

HANDLE.CLUTCH.CABLE.LT

$12.99

$

In Stock, only 1 left!

0

255

Husqvarna 585317005

PLATES.RENFRCE.42DECK.X431SIDE

$13.99

$

Usually ships in 3-10 days

0

7

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 15

0

254

Husqvarna 585316805

PLATES.RENFRC.42DECK.PT431FRNT

$13.99

$

In Stock, only 1 left!

0

152

Husqvarna 584243501

CABLE.MECHANICAL.CLUTCH

$34.99

$

In Stock, Qty 10

0

63

Husqvarna 532199477

ARM BRAKE MOWER
(Superseded to 532199478)

$17.99

$

In Stock, Qty 20+

0
