YTH 2042 (960430122-00) - Husqvarna 42" Yard Tractor (2010-10) ENGINE Parts Diagram

42" Yard Tractor

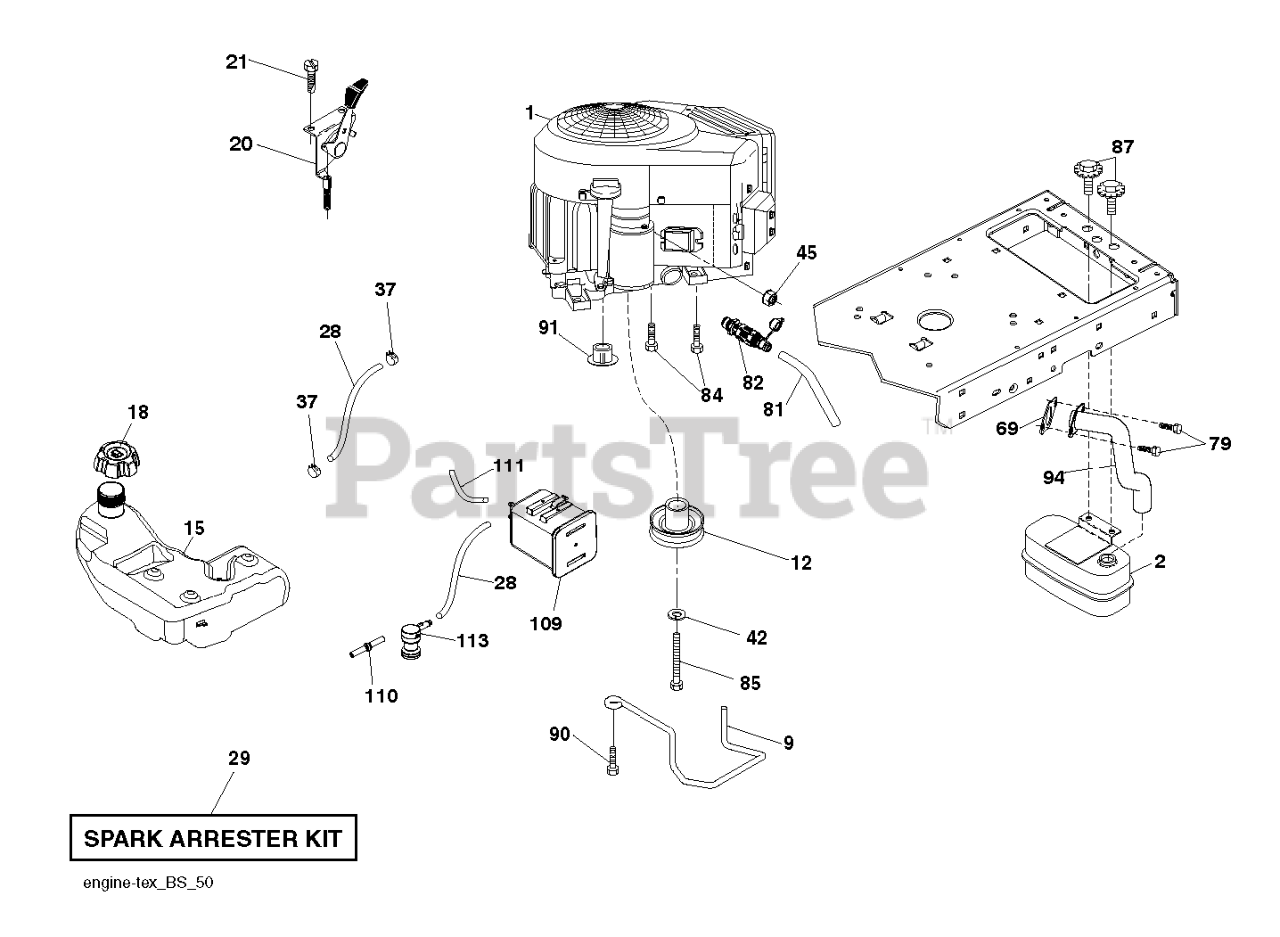

ENGINE Parts Diagram

  • Title

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$20.99

$

In Stock, only 2 left!

0

1

000000000

Note: ENGINE BRIGGS MODEL NO. 331777-1457-G1

$

$

Not available

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

15

Husqvarna 532414151

TANK.ASM.FUEL.3GA.CARB

$

$

Not available

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 2 left!

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

20

Husqvarna 532401508

CONTROL.TH/CK.COBRA.KO

$34.99

$

In Stock, only 1 left!

0

111

Husqvarna 532414119

RP PURGE LINE
(Superseded to 532448562)

$

$

Not available

109

Husqvarna 532414114

CANNISTER, CARBON

$62.99

$

Usually ships in 3-10 days

0

94

Husqvarna 581880901

EXHAUST.TUBE.B&S.28/31

$31.99

$

In Stock, only 3 left!

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

69

Husqvarna 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532439208

CAP.ASM.FL.RITCH.3"E10.SYM.498

$53.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532405471

PULLY ENGINE
(Superseded to 586478501)

$40.99

$

In Stock, only 1 left!

0

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 7

0

87

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, only 4 left!

0

110

Husqvarna 532414118

VALVE.ASM.ANTI-SLOSH

$27.99

$

Usually ships in 3-10 days

0

113

Husqvarna 532414127

VALVE.SLANT.CARTRDG.90 DEG.TEX

$

$

Not available

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 584908001)

$

$

Not available

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 5

0

2

Husqvarna 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$45.99

$

In Stock, only 3 left!

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 2 left!

0
