YTH 2042 (960130006-00) - Husqvarna 42" Yard Tractor (2005-10) Steering Assembly Parts Diagram

42" Yard Tractor

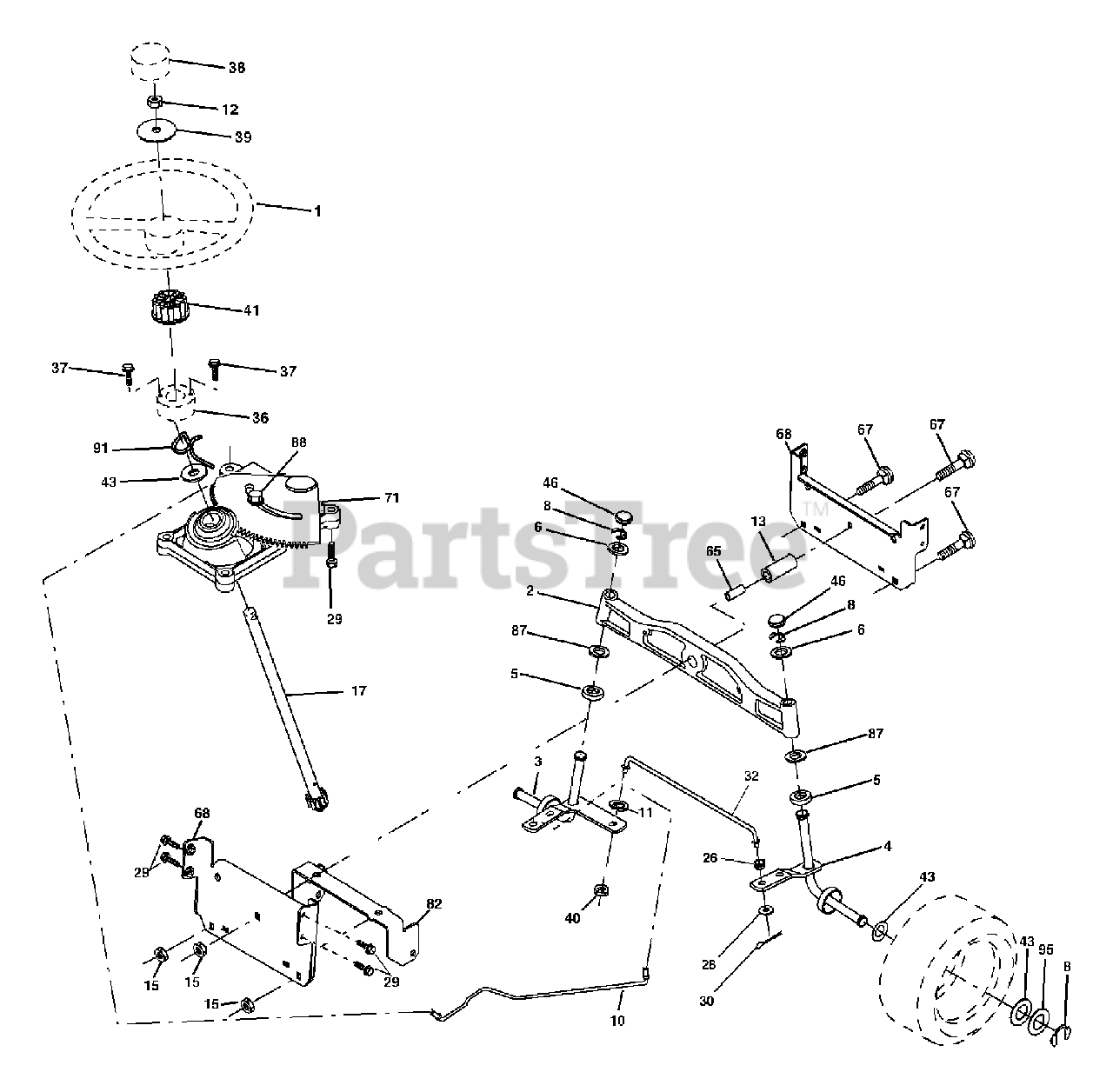

Steering Assembly Parts Diagram

  • Title

1

Husqvarna 532193943

Wheel Steering
(Superseded to 532186093)

$

$

Not available

2

Husqvarna 532184706

Axle Asm Cast Iron LT
(Superseded to 532193542)

$169.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532169840

Spindle Asm LH
(Superseded to 596873901)

$18.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532169839

Spindle Asm RH
(Superseded to 596873801)

$31.99

$

In Stock, only 1 left!

0

5

Husqvarna 532124931

Bearing Race Thrust Harden
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

6

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 812000029

Ring Klip #t5304-75

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532175121

Link Drag

$68.99

$

In Stock, only 2 left!

0

11

Husqvarna 810040600

Washer Lock Hvy Hlcl Spr 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 873940800

Nut Hex Jam Toplock 1/2-20 unf

$7.49

$

In Stock, only 4 left!

0

13

Husqvarna 532136518

Spacer Brg Axle Front

$9.99

$

In Stock, only 1 left!

0

15

Husqvarna 532145212

Nut Hex Flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532177883

Shaft Asm Steering

$120.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532126847

Bushing Link Drag

$5.99

$

In Stock, only 2 left!

0

28

Husqvarna 819131416

Washer 13/32 x 7/8 x 16 Ga.
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

29

Husqvarna 817000612

Screw 3/8-16 x .75

$4.99

$

In Stock, only 2 left!

0

30

Husqvarna 876020412

Pin Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

32

Husqvarna 532192757

Rod Tie

$34.99

$

In Stock, only 2 left!

0

36

Husqvarna 532155105

Bushing Strg
(Superseded to 532155108)

$7.99

$

In Stock, only 1 left!

0

37

Husqvarna 532152927

Screw

$7.49

$

In Stock, only 2 left!

0

38

Husqvarna 532193652

Insert Cap Strg Wh

$13.99

$

In Stock, Qty 5

0

39

Husqvarna 819183812

Washer 9/16 ID x 2-3/8 OD x 12 Ga.

$9.49

$

Usually ships in 3-10 days

0

40

Husqvarna 873540600

Crownlock nut

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532186737

Adapter Wheel
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

43

Husqvarna 532121749

Washer 25/32 x 1 1/4 x 16 Ga.

$3.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532180640

Extension Steering Shaft
(Superseded to 532407600)

$

$

Not available

46

Husqvarna 532121232

Cap Spindle Fr Top Blk

$4.99

$

In Stock, Qty 9

0

65

Husqvarna 532160367

Spacer Brace Axle
(Superseded to 532414736)

$6.99

$

In Stock, Qty 5

0

67

Husqvarna 872110618

Bolt RDHD SANK 3/8-16 x 2 1/4

$6.49

$

In Stock, only 2 left!

0

71

Husqvarna 532175146

Steering Asm

$182.99

$

In Stock, only 3 left!

0

68

Husqvarna 532169827

Axle, Brace

$21.99

$

Usually ships in 3-10 days

0

82

Husqvarna 532169835

Bracket Susp Chassis Front
(Superseded to 532199978)

$15.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532173966

Washer Flat .781 x 1-1/2 x .14

$7.49

$

Usually ships in 3-10 days

0

88

Husqvarna 532175118

Bolt Shoulder 7/16-20 unc

$6.49

$

Usually ships in 3-10 days

0

91

Husqvarna 532175553

Clip Steering

$13.99

$

In Stock, only 1 left!

0

95

Husqvarna 532188967

Washer Harden .739 x 1.637 x 060

$4.99

$

In Stock, Qty 20+

0
