YTH 2042 (960130006-00) - Husqvarna 42" Yard Tractor (2005-10) Mower Deck Parts Diagram

42" Yard Tractor

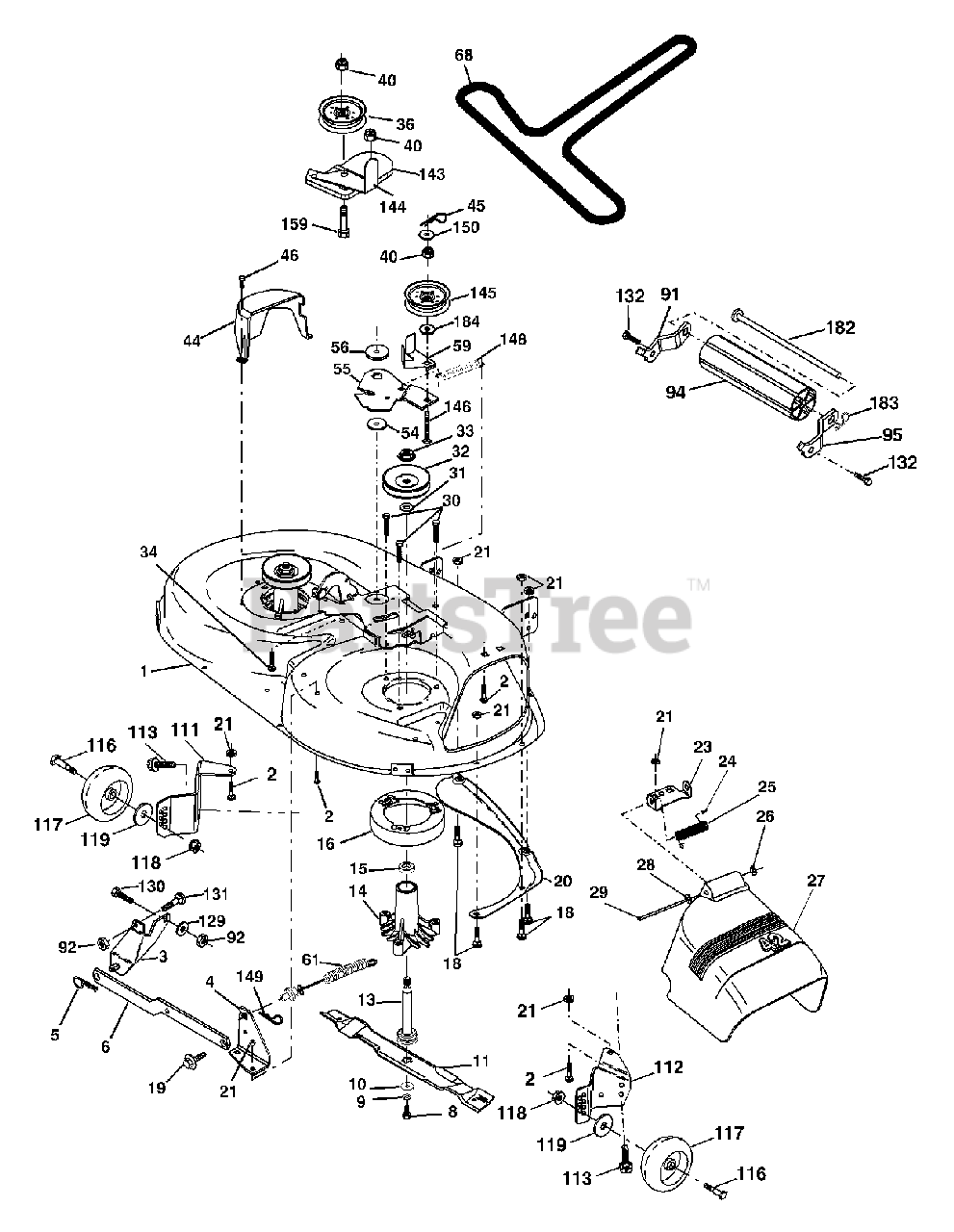

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532165892

Mower Deck Assembly, 42"
(Superseded to 532176027)

$399.99

$

Usually ships in 3-10 days

0

2

Husqvarna 872140506

Bolt
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 532138017

Bracket Asm Fr. Sway Bar 3/42

$12.99

$

In Stock, only 1 left!

0

4

Husqvarna 532165460

Bracket Asm Deck 42" Sway Bar

$13.99

$

In Stock, only 1 left!

0

5

Husqvarna 532124670

Retainer Spring

$

$

Not available

6

Husqvarna 532178024

Bar Sway Deck

$8.99

$

In Stock, only 4 left!

0

8

Husqvarna 800850857

Bolt 3/8-24 x 1.25 Gr. 8 patched
(Superseded to 532850857)

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 810030600

Washer, Lock
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532140296

Washer, Hardened

Note: (The following Blades are available)

$6.99

$

In Stock, only 1 left!

0

11

Husqvarna 532138971

Blade Mower 42" Hi-Lift

Note: (for bagging and discharging)

$20.99

$

In Stock, Qty 20+

0

11

Husqvarna 532134149

Blade, Mulching 42" Std
(Superseded to 594892701)

Note: (for mulching mowers only)

$

$

Not available

11

Husqvarna 532139775

Blade Mulching 42" Premium
(Superseded to 594893101)

Note: (For better wear when mulching)

$

$

Not available

13

Husqvarna 532137645

Shaft Assembly, Mandrel, Vented
(Superseded to 532137646)

$34.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532128774

Housing, Mandrel, Vented

$34.99

$

In Stock, only 1 left!

0

15

Husqvarna 532110485

Bearing, Ball, Mandrel

$13.99

$

In Stock, Qty 6

0

16

Husqvarna 532174493

Stripper, Mandrel Deck

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 872140505

Bolt, Carriage 5/16-18 x 5/8
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532132827

Bolt, Shoulder

$

$

Not available

20

Husqvarna 532159770

Baffle, Vortex

$

$

Not available

21

Husqvarna 873680500

Nut
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532177563

Bracket, Deflector Mower 42"

$

$

Not available

24

Husqvarna 532105304

Cap, Sleeve 80 x 1/2 Blk Mower

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532123713

Spring, Torsion, Deflector 2 52

$7.99

$

In Stock, only 3 left!

0

26

Husqvarna 532110452

Nut, Push Phos & Oil

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532171859

Shield, Deflector 42" Blk
(Superseded to 532130968)

$39.99

$

In Stock, Qty 12

0

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga.

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532131491

Rod, Hinge 42" 6 75 W/G
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

Screw Thdrol
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532187690

Washer, Spacer Mower Vented

$4.99

$

In Stock, only 2 left!

0

32

Husqvarna 532173436

Pulley, Mandrel

$17.99

$

In Stock, Qty 20+

0

33

Husqvarna 532178342

Nut, Toplock
(Superseded to 596134801)

$4.99

$

In Stock, Qty 18

0

34

Husqvarna 872110612

Bolt Carr SH 3/8-16 x 1-1/2 Gr.5

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532173438

Pulley, Idler, Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

40

Husqvarna 873900600

Nut Lock 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

44

Husqvarna 532140088

Guard, Mandrel, LH

$34.99

$

In Stock, Qty 10

0

45

Husqvarna 532124788

Retainer
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

46

Husqvarna 532137729

Screw, Thdrol 1/4-20 x 5/8 T

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 532178515

Washer, Hardened

$6.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532155046

Arm, Idler
(Superseded to 531166601)

$17.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532122052

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

59

Husqvarna 532141043

Guard TUV Idler
(Superseded to 531165901)

$5.99

$

In Stock, only 3 left!

0

61

Husqvarna 532174882

Spring Ext Elect. Clutch

$26.99

$

In Stock, only 2 left!

0

68

Husqvarna 532174883

V-Belt, 42" Mower

$45.99

$

In Stock, only 2 left!

0

91

Husqvarna 532180532

Bracket Roller Nose RH

$4.99

$

Usually ships in 3-10 days

0

92

Husqvarna 873800600

Nut Lock Hex W/lns 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

94

Husqvarna 532132264

Roller Nose

$44.99

$

In Stock, Qty 20+

0

95

Husqvarna 532180533

Bracket Roller Nose RH

$6.49

$

Usually ships in 3-10 days

0

111

Husqvarna 532179292

Bracket Wheel Gauge LH
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

112

Husqvarna 532179293

Bracket Wheel Gauge RH
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

113

Husqvarna 817000510

Screw 5/16-18

$7.49

$

In Stock, Qty 12

0

116

Husqvarna 532193406

Bolt, Shoulder
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Husqvarna 532174873

Wheel, Gauge
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

118

Husqvarna 873930600

Nut Centerlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Husqvarna 819121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

129

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

130

Husqvarna 874780616

Bolt Fin HEx 3/8-16 unc x 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

131

Husqvarna 872140608

Bolt RDHD SANK 3/8-16 unc x 1
(Superseded to 872110608)

$4.99

$

In Stock, only 2 left!

0

132

Husqvarna 817000612

Screw Hexwsh Thdrol

$4.99

$

In Stock, only 4 left!

0

143

Husqvarna 532157109

Bracket Arm Idler 42"

$6.49

$

Usually ships in 3-10 days

0

144

Husqvarna 532173441

Keeper Belt 42" Clutch Cable

$9.99

$

In Stock, only 1 left!

0

145

Husqvarna 532173437

Pulley Idler Flat

$28.99

$

In Stock, only 3 left!

0

146

Husqvarna 532173443

Bolt Carriage Idler

$7.49

$

In Stock, Qty 8

0

148

Husqvarna 532169022

Spring Return Idler

$5.99

$

In Stock, Qty 9

0

149

Husqvarna 532165898

Retainer Spring Yellow

$7.49

$

Usually ships in 3-10 days

0

150

Husqvarna 819091210

Washer 9/32 x 3/4 x 10 Ga.

$6.99

$

Usually ships in 3-10 days

0

159

Husqvarna 872140614

Bolt Rdhd Sqn 3/8-16 unc x 1-3/4

$4.99

$

Usually ships in 3-10 days

0

182

Husqvarna 532179126

Rod Roller Nose

$

$

Not available

183

Husqvarna 532163552

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

184

Husqvarna 819131410

Washer 13/32 x 7/8 x 10 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

Husqvarna 532130794

Mandrel Assembly

Note: (Includes Housing Shaft and Shaft Hardware Only - Pulley Not Included)

$56.99

$

In Stock, Qty 7

0

Husqvarna 532176789

Replacement Mower, Complete
(Superseded to 532176207)

Note: (Std. deck Order separately gauge wheel componants Key Nos. 116-119)

$789.99

$

Usually ships in 3-10 days

0
