YTH 2042 (960130006-00) - Husqvarna 42" Yard Tractor (2005-10) Engine Parts Diagram

42" Yard Tractor

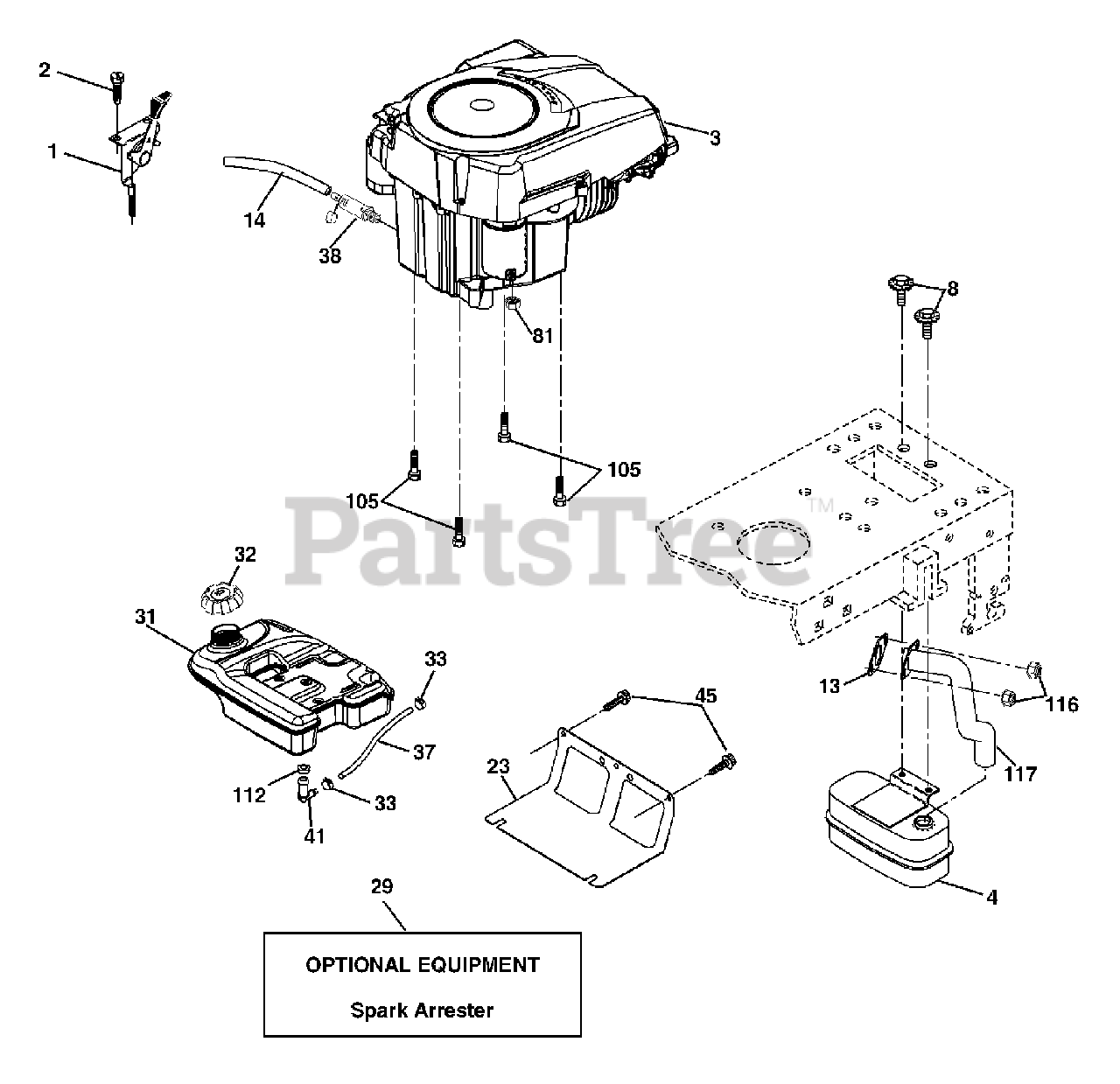

Engine Parts Diagram

  • Title

1

Husqvarna 532170805

Control, Throttle/Choke

$

$

Not available

2

Husqvarna 817720408

Screw Hex Thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

3

Engine Kohler Model SV600

Note: (Order Parts from Engine Mfg.)

$

$

Not available

4

Husqvarna 532188655

Muffler

$45.99

$

In Stock, only 2 left!

0

8

Husqvarna 532171877

Bolt 5/16-18 unc x 3/4 w/Sems

$7.49

$

In Stock, Qty 5

0

13

Husqvarna 532185909

Muffler Gasket

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532148456

Tube Oil Drain

$6.99

$

In Stock, only 4 left!

0

23

Husqvarna 532169837

Shield, Browning/Debris Guard

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

Arrester, Spark

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532179022

Tank, Fuel

$

$

Not available

32

Husqvarna 532181803

Cap, Fuel
(Superseded to 532179124)

$37.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

Clamp, Hose Blk

$7.49

$

In Stock, only 4 left!

0

37

Husqvarna 532142145

Line, Fuel

$

$

Not available

38

Husqvarna 532181654

Plug Drain Oil Easy
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

41

Husqvarna 532139277

Stem Tank Fuel

$8.99

$

In Stock, Qty 7

0

45

Husqvarna 817000612

Screw Hex Wsh Thdrol 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

81

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

105

Husqvarna 817120616

Screw 3/8-16 x 1

$5.99

$

In Stock, Qty 17

0

112

Husqvarna 532124952

Bushing
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

116

Husqvarna 532184362

Nut Hex Flange Toplock M8-1.25

$6.49

$

In Stock, only 1 left!

0

117

Husqvarna 532188654

Exhaust Tube
(Superseded to 583955301)

$34.99

$

In Stock, only 2 left!

0
