YTH 2042 (917287520) - Husqvarna 42" Yard Tractor (2007-01) MOWER DECK / CUTTING DECK Parts Diagram

42" Yard Tractor

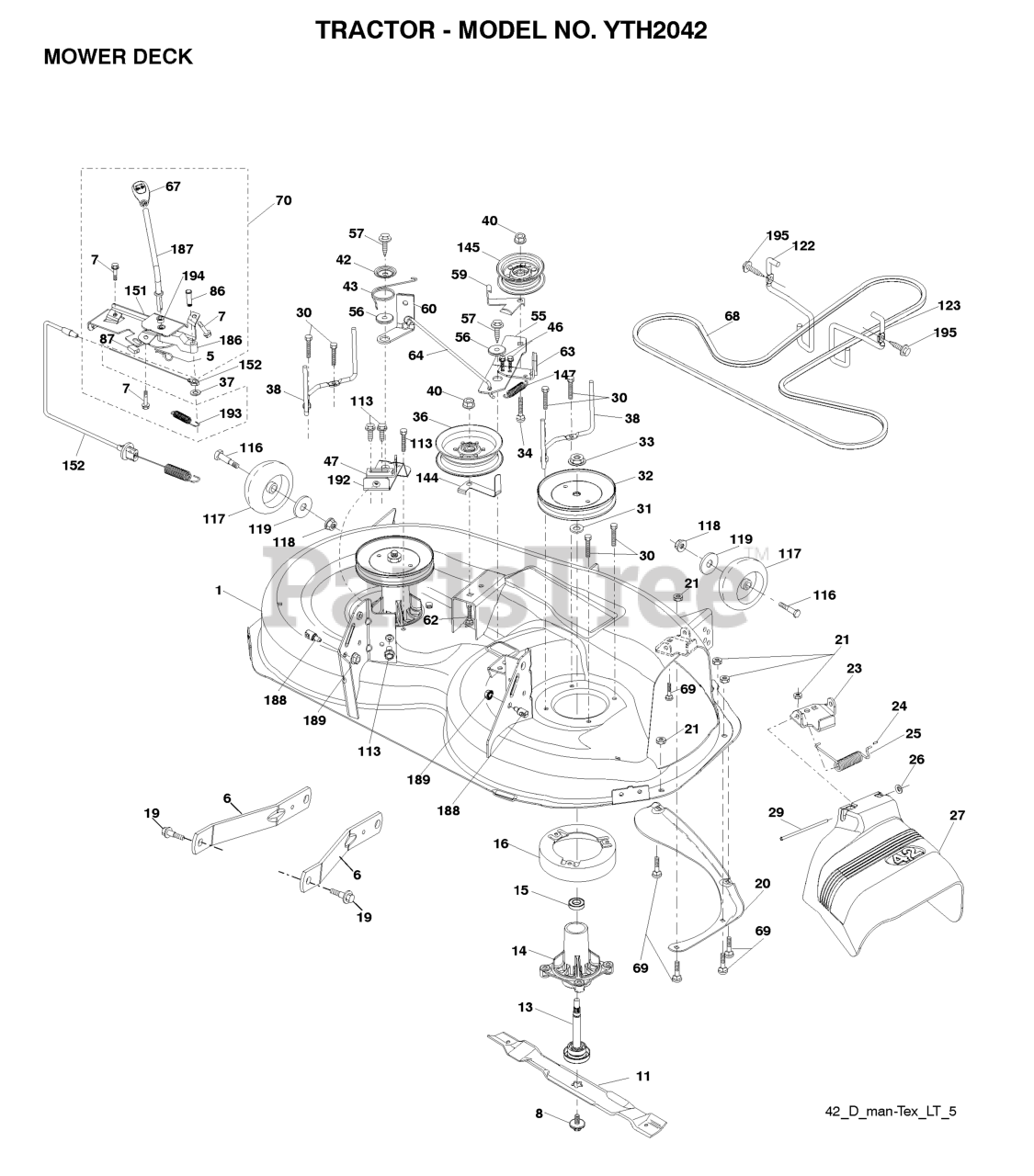

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
56

Husqvarna 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 12

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

86

Husqvarna 532197798

PIN ATTACHMENT CABLE
(Superseded to 532406563)

$

$

Not available

115

Husqvarna 872110505

BOLT.CARR.5/16-18X5/8.SHORT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

36

Husqvarna 532196106

PULLEY.IDLER.2006

$39.99

$

In Stock, Qty 20+

0

152

Husqvarna 532408319

CABLE CLUTCH MANUAL W/SPR.
(Superseded to 532435110)

$37.99

$

In Stock, Qty 9

0

55

$

$

Not available

123

Husqvarna 532197259

KEEPER BELT RH

$

$

Not available

7

Husqvarna 532191611

SCREW
(Superseded to 532416358)

$

$

Not available

122

Husqvarna 532197258

KEEPER BELT ENGINE LH
(Superseded to 531169501)

$7.49

$

In Stock, Qty 9

0

64

Husqvarna 532199918

LINKAGE.BRAKE.ASM.ZINC

$24.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532134149

BLADE.42".MULCH
(Superseded to 594892701)

$

$

Not available

8

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532199189

KEEPER.BELT.LH.MANDREL
(Superseded to 589676103)

$7.99

$

In Stock, Qty 16

0

145

Husqvarna 532177968

PULLEY.IDLER.FLAT

$31.99

$

In Stock, Qty 7

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532197802

SWITCH.INTRLCK.CLUTCH.

$18.99

$

In Stock, Qty 7

0

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

113

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

147

Husqvarna 532401971

RETURN SPRING

$5.99

$

In Stock, Qty 8

0

27

Husqvarna 532403004

SHIELD.DEFLECTOR.MOWER.42"BLAC

$44.99

$

Usually ships in 3-10 days

0

57

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 2 left!

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

$6.49

$

Usually ships in 3-10 days

0

15

$13.99

$

In Stock, Qty 7

0

116

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

68

Husqvarna 532197253

BELT.DRIVE.MOWER.TEX.42"
(Superseded to 592855001)

$39.99

$

In Stock, only 4 left!

0

192

Husqvarna 532197260

BRKT.BRAKE.STAND.LH.

$

$

Not available

20

Husqvarna 532159770

BAFFLE.VORTEX

$

$

Not available

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 19

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 532197250

BRKT.CLUTCH.CABLE

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532199478

ARM.BRAKE.ZINC

$17.99

$

In Stock, Qty 9

0

16

Husqvarna 532174493

STRIPPER.MANDREL.ROUND.BLACK

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532187281

RP.HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, only 3 left!

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

189

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

13

Husqvarna 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

25

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 17

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

1

Husqvarna 532402999

DECK.WELDMENT.42"PAINT
(Superseded to 598602801)

$398.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532197402

ARM BRAKE MOWER
(Superseded to 597074201)

$14.99

$

In Stock, only 4 left!

0

32

Husqvarna 532195945

PULLEY.MANDREL.5.438.P

$14.99

$

In Stock, Qty 20+

0

34

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532197256

SRPING.TORSION.RETAINE

$6.49

$

In Stock, Qty 8

0

118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

186

Husqvarna 532197799

ARM ACTUATOR
(Superseded to 532406563)

$

$

Not available

193

Husqvarna 532197801

SPRING.PLUNGER.ACTUATOR
(Superseded to 532406563)

$

$

Not available

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532138971

42" HI-LIFT BLADE

$20.99

$

In Stock, Qty 20+

0

117

Husqvarna 532174873

RP WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

188

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

23

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 6

0

70

Husqvarna 532406563

CLUTCH.ASM.CABLE.HUSQ.TEX

$

$

Not available

119

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

- -

Husqvarna 532139775

BLADE.42"MULCH.PREMIUM
(Superseded to 594893101)

$

$

Not available

195

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 4 left!

0

37

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

144

Husqvarna 532199204

KEEPER.BELT.MOWER

$6.49

$

Usually ships in 3-10 days

0

67

Husqvarna 532403012

HANDLE.CLUTCH.CABLE.LT

$12.99

$

In Stock, only 1 left!

0

194

Husqvarna 532197797

BEARING.CONTROL.LEVER.CLUTCH
(Superseded to 532406563)

$

$

Not available

- -

Husqvarna 532402022

DECK.SVC.42"HP.CC.2GWB.GREY
(Superseded to 598602801)

$398.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532198410

SPRING.TORSION.BRAKE

$6.49

$

In Stock, Qty 8

0

69

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0
