YTH 200 (954170048-C) - Husqvarna Yard Tractor (2002-09) CHASSIS & ENCLOSURES Parts Diagram

Yard Tractor

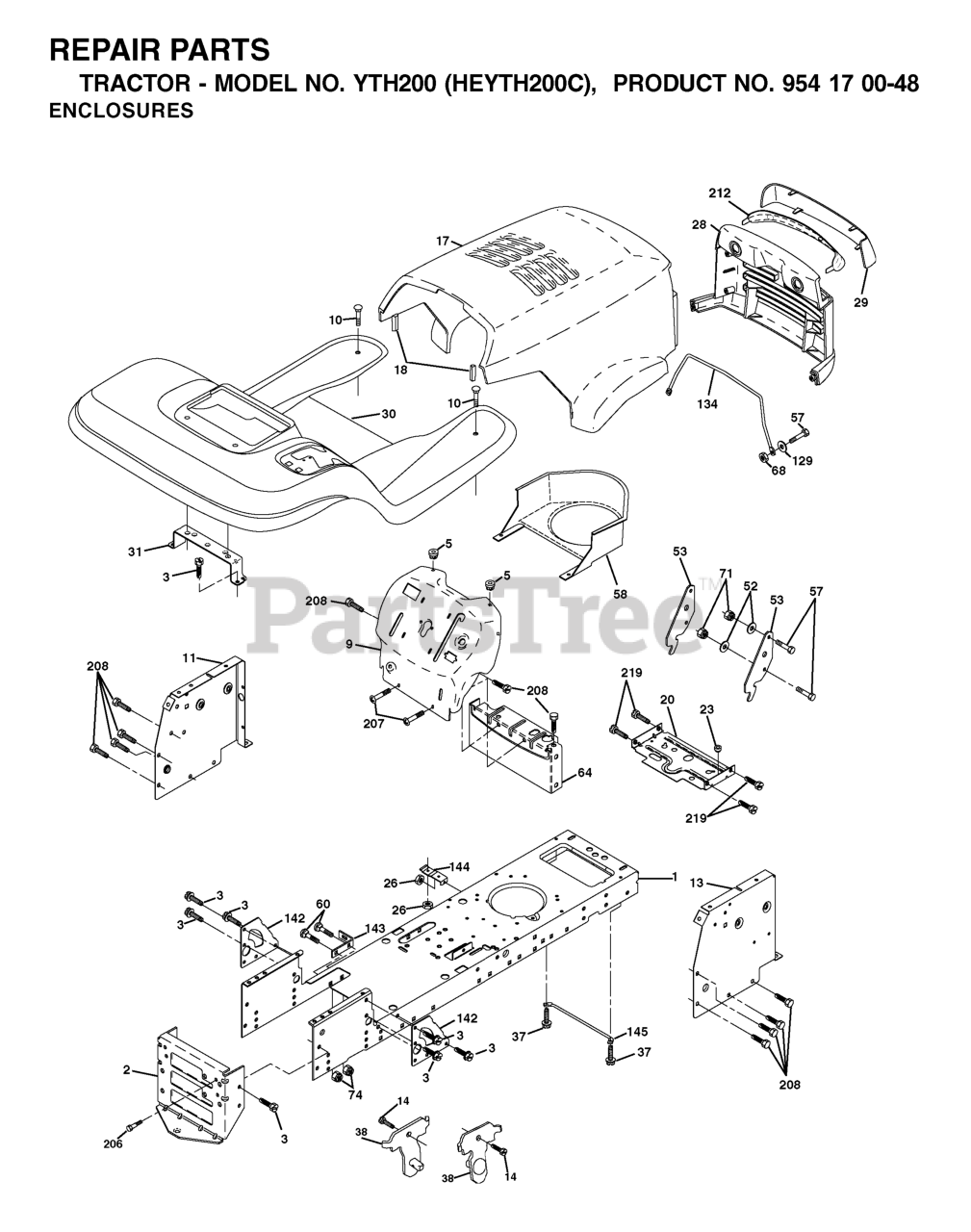

CHASSIS & ENCLOSURES Parts Diagram

  • Title

13

Husqvarna 532172106

PANEL ASM, DASH RH

$18.99

$

Usually ships in 3-10 days

0

14

Husqvarna 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532150067

BRACKET PNT PICK OFF LT/PL

$

$

Not available

208

Husqvarna 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, only 3 left!

0

9

Husqvarna 532171924

DASH(SUBS)
(Superseded to 532168345)

$

$

Not available

207

Husqvarna 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0

71

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

143

Husqvarna 532154966

BRACKET, SWAY BAR
(Superseded to 532186689)

$6.99

$

In Stock, only 2 left!

0

129

Husqvarna 819091016

WASHER

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532165378

HOOD
(Superseded to 532156051)

$519.99

$

Usually ships in 3-10 days

0

219

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

26

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

64

Husqvarna 532154798

DASH LOWER

$20.99

$

Usually ships in 3-10 days

0

144

Husqvarna 532175582

BRKT, FOOT REST

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532126938

BUMPER HOOD T

$

$

Not available

23

Husqvarna 532124028

BUSHING.SNAP.NYL.BLK.

$5.99

$

In Stock, only 3 left!

0

30

Husqvarna 532180507

FENDER FOOTREST
(Superseded to 532192813)

$

$

Not available

31

Husqvarna 532139976

BRACKET.SUPPORT.FENDER

$17.99

$

Usually ships in 3-10 days

0

68

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

142

Husqvarna 532175702

PLATE REINFORCEMENT

$9.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532174930

DUCT, INTAKE AIR

$

$

Not available

37

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 532180679

PLATE MTG.BATTERY/FUEL TANK

$11.99

$

Usually ships in 3-10 days

0

60

Husqvarna 872140606

Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4

$

$

Not available

74

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

134

Husqvarna 532160219

ROD SUPPORT HOOD LT/PL HUS.

$7.99

$

Usually ships in 3-10 days

0

52

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

212

Husqvarna 532156195

INSERT LENS REFLECTOR

$

$

Not available

2

Husqvarna 532176554

DRAWBAR, 12GA

$43.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532165379

GRILL
(Superseded to 532156880)

$

$

Not available

11

Husqvarna 532174996

PANEL.DASH.LH.LTX

$

$

Not available

57

Husqvarna 874780412

BOLT
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

145

Husqvarna 532156524

ROD PIVOT CHASSIS/HOOD
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

29

Husqvarna 532165380

LENS
(Superseded to 532149777)

$

$

Not available

206

Husqvarna 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, only 3 left!

0

38

Husqvarna 532175710

BRACKET.ASM.PIVOT.MOWER.REAR

$11.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532174619

CHASSIS STAMPING
(Superseded to 579841401)

$433.99

$

Usually ships in 3-10 days

0
