YTH 18K46 (960430218-00) - Husqvarna 46" Yard Tractor (2015-11) MOWER DECK / CUTTING DECK Parts Diagram

46" Yard Tractor

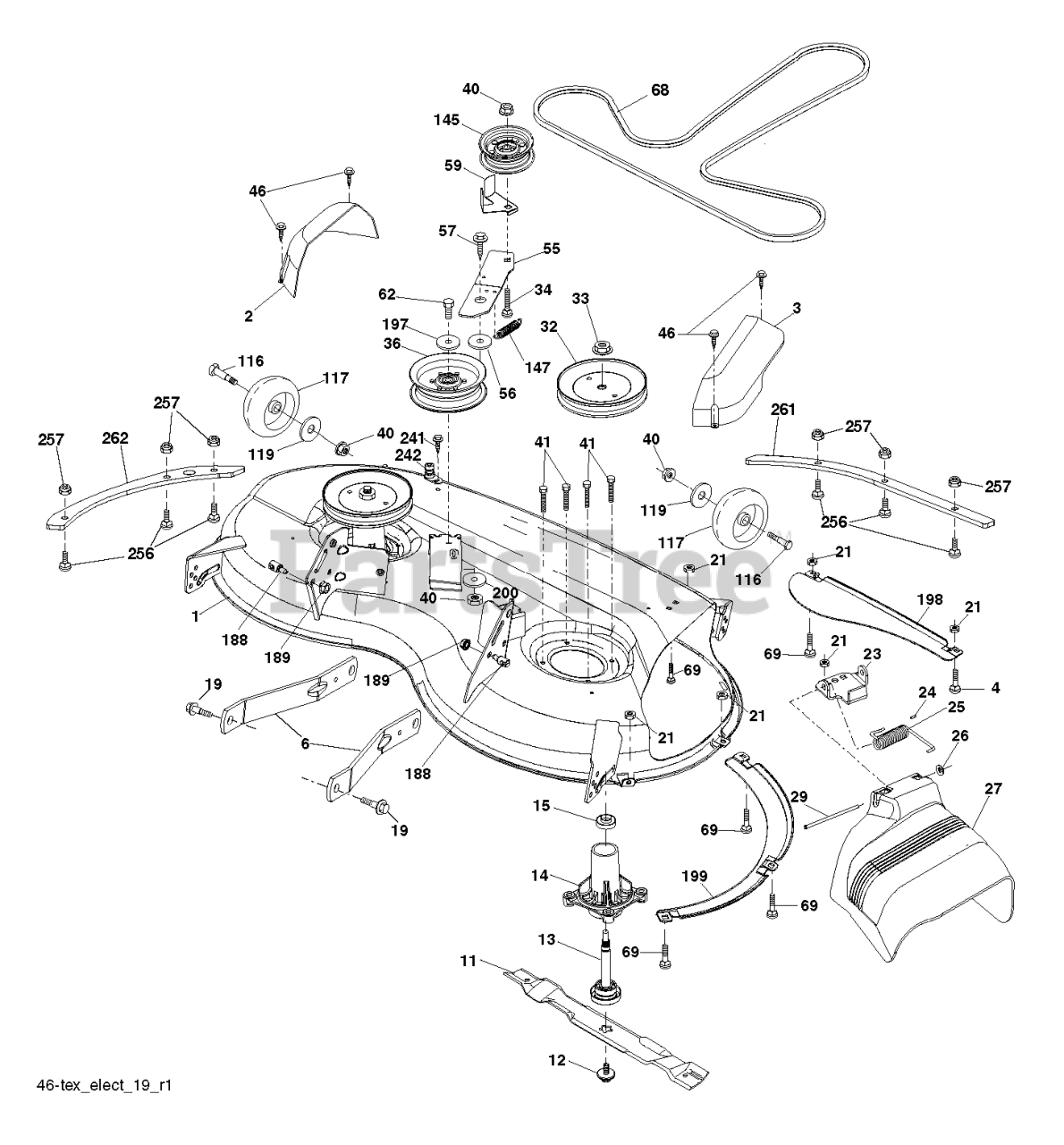

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

198

Husqvarna 532403149

BAFFLE CENTER FRONT

$

$

Not available

11

Husqvarna 532405380

BLADE.MOWER.46".HI.LIFT

$

$

Not available

116

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

257

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

25

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 15

0

19

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

Husqvarna 587253301

MANDREL.NONGREASEABLE.TALL
(Superseded to 587819701)

Note: MANDREL ASSEMBLY (Includes Housing (Key # 14), Shaft Assembly (Key # 13) and Bearing Only (Key # 15) - Pulley/Nut/Washer and Blade Bolt/Washers Not Included)

$56.99

$

In Stock, Qty 20+

0

Husqvarna 532416405

COUPLING.QUICK CONNECT

Note: NOT SHOWN

$10.99

$

In Stock, Qty 6

0

1

Husqvarna 589535303

DECK.PNT.TR.WLDMNT.46".2GA.ORG
(Superseded to 591111601)

$512.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532197249

IDLER.ARM

$

$

Not available

Husqvarna 586352201

DECK.ASM SVC.46"HP.E.2GW.WP.TX

Note: NOT SHOWN

$970.99

$

Usually ships in 3-10 days

0

256

Husqvarna 539109800

RHSNB, 1/4-20 X 1, GR5
(Superseded to 592807801)

$4.99

$

In Stock, only 3 left!

0

3

Husqvarna 532405506

COVER.MANDREL.RH.46"

Note: LH

$47.99

$

In Stock, only 4 left!

0

200

Husqvarna 532413524

WASHER.13/32 X 1 X 1/2.11GUARD

$

$

Not available

27

Husqvarna 532405357

SHIELD.DEFLECTOR.MOWER.46"BLAC

$74.99

$

In Stock, Qty 7

0

62

Husqvarna 874520636

BOLT-HEX EAK

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532405507

COVER.MANDREL.LH.46"

Note: RH

$47.99

$

In Stock, only 3 left!

0

119

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 587256501

SHAFT ASM.MNDRL.N/GREASEABLE
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

147

Husqvarna 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$11.99

$

In Stock, only 2 left!

0

15

Husqvarna 585323901

BEARING.MANDREL.TOP.EXTENDED

$14.99

$

In Stock, only 2 left!

0

241

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

6

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

12

Husqvarna 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

189

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

197

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 5

0

261

Husqvarna 589481805

PLATE.REINF.DECK.46".FRONT.BLK

$20.99

$

In Stock, only 4 left!

0

32

Husqvarna 532197473

PULLEY.MANDREL.5.438.PD
(Superseded to 532195945)

$14.99

$

In Stock, Qty 20+

0

34

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

199

Husqvarna 532403150

BAFFLE FRONT RH

Note: RH

$

$

Not available

57

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

56

Husqvarna 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

145

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, Qty 5

0

117

Husqvarna 589527301

WHEEL.GAUGE.RALLY

$10.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532187281

RP.HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

4

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

242

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 12

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

36

Husqvarna 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 20+

0

41

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

262

Husqvarna 589482005

PLATE.REINF.DECK.46".SIDE.BLK

$20.99

$

Usually ships in 3-10 days

0

69

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

188

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

Note: 94

$5.99

$

In Stock, only 3 left!

0

68

Husqvarna 532405143

V-BELT
(Superseded to 584453101)

$56.99

$

In Stock, Qty 20+

0
