YTH 1848 XP (960130003-01) - Husqvarna 48" Yard Tractor (2005-03) Engine Parts Diagram

48" Yard Tractor

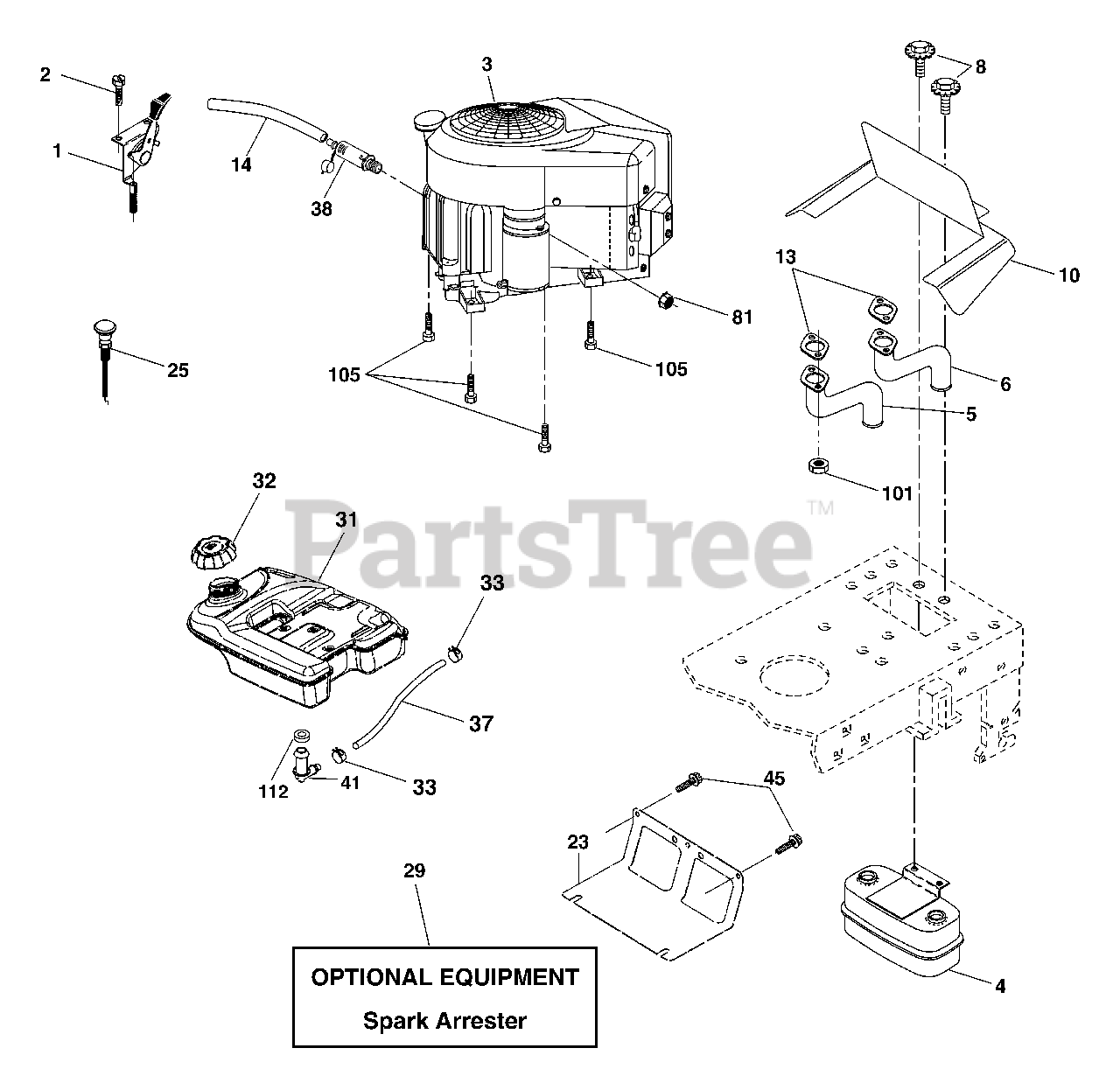

Engine Parts Diagram

  • Title
1

Husqvarna 532170803

Control, Throttle

$30.99

$

In Stock, only 1 left!

0

2

Husqvarna 817720408

Screw Hex Thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

3

Engine Kawa Model FH531V

Note: (Order Parts from Engine Mfg.)

$

$

Not available

$74.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532176067

Exhaust Tube LH

$113.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532176068

Exhaust Tube RH

$113.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532171877

Bolt5/16-18 unc x 3/4 w/Sems

$7.49

$

In Stock, only 4 left!

0

10

Husqvarna 532146629

Shield Heat Muffler
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

13

Muffler Gasket

Note: (Order from Eng. Mfgr.)

$

$

Not available

14

Husqvarna 532148456

Tube Oil Drain

$6.99

$

In Stock, only 4 left!

0

23

Husqvarna 532169837

Shield, Browning/Debris Guard

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532191964

Control Choke
(Superseded to 532190784)

$27.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

Arrester, Spark

$182.99

$

In Stock, only 1 left!

0

31

$

$

Not available

32

Husqvarna 532181803

Cap Gauge, Fuel
(Superseded to 532179124)

$37.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

Clamp, Hose Blk

$7.49

$

In Stock, only 4 left!

0

37

Husqvarna 532142158

Line, Fuel
(Superseded to 587044854)

$17.99

$

In Stock, only 2 left!

0

38

Plug Drain Oil Easy

Note: (Order from Eng. Mfgr.)

$

$

Not available

41

Husqvarna 532139277

Stem Tank Fuel

$8.99

$

In Stock, Qty 8

0

45

Husqvarna 817000612

Screw Hex Wsh Thdrol 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

81

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

101

Husqvarna 532184362

Nut Flange Toplock M8-1.25

$6.49

$

In Stock, only 3 left!

0

105

Husqvarna 817120616

Screw 3/8-16 x 1

$5.99

$

In Stock, Qty 19

0

112

Husqvarna 532124952

Bushing
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0
