YTH 1848 XP (954567260-E) - Husqvarna 48" Yard Tractor (2002-02) Engine Parts Diagram

48" Yard Tractor

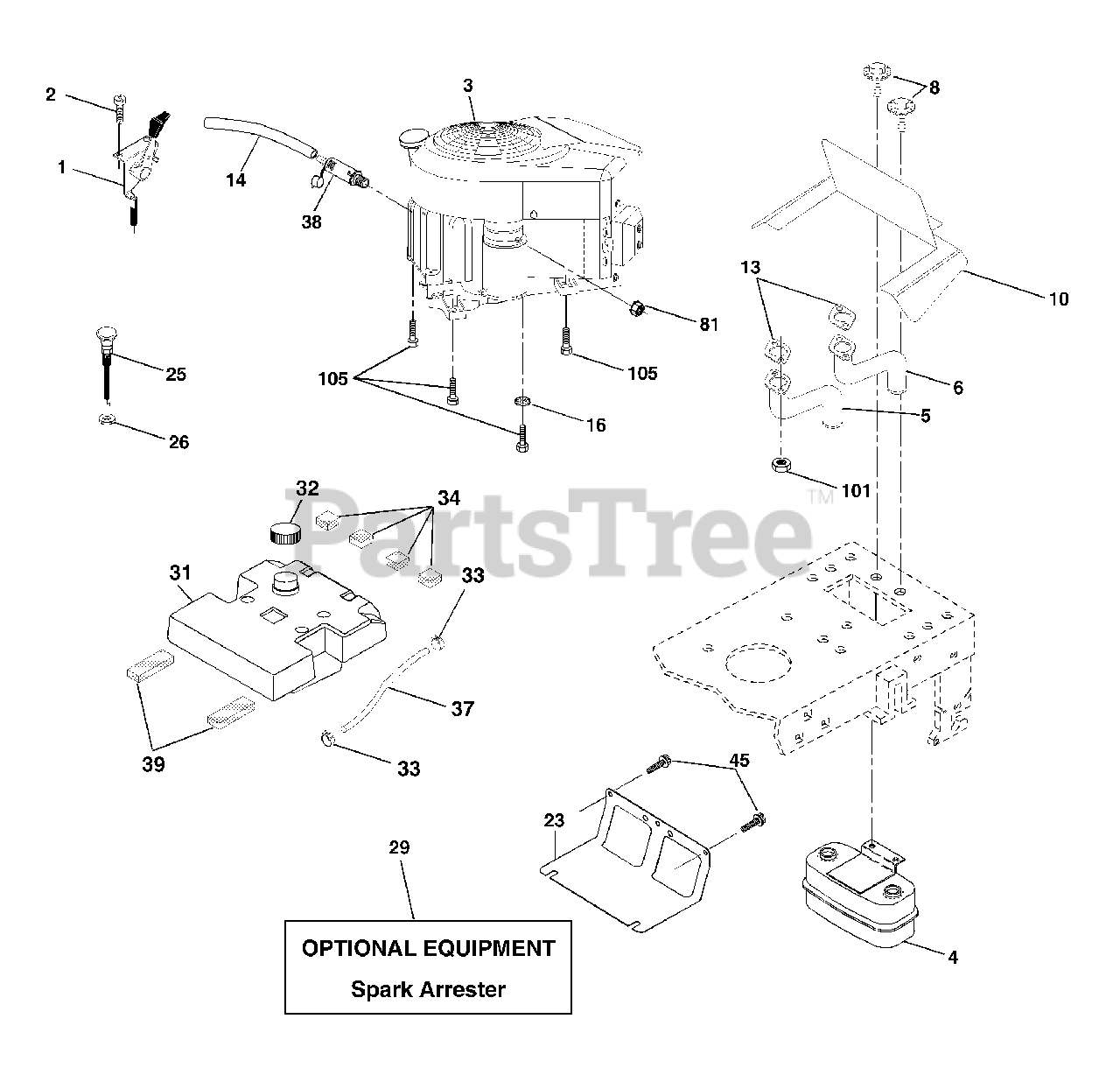

Engine Parts Diagram

  • Title
1

Husqvarna 532170803

Control Throt Flg

$30.99

$

In Stock, only 1 left!

0

2

Husqvarna 817720408

Screw Hex Thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

3

Engine KAWA FH531V

$

$

Not available

4

Husqvarna 532149723

Muffler Asm Twin Lo-Tone

$74.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532176067

Exhaust Tube

$113.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532176068

Exhaust Tube

$113.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532171877

Bolt 5/16-18unc x 3/4 W/Sems

$7.49

$

In Stock, only 4 left!

0

10

Husqvarna 532146629

Shield Browning
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

13

Gasket Muffler

$

$

Not available

14

Husqvarna 532148456

Tube Drain Oil Easy

$6.99

$

In Stock, only 4 left!

0

16

Husqvarna 811050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 532169837

Shield Browning

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532132782

Choke Control
(Superseded to 532132781)

$

$

Not available

26

Husqvarna 873920600

Nut, Keps 3/8-24 Unf

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

Kit Spark Arrestor

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532157103

Tank Fuel 3 50 Rear

$

$

Not available

32

Husqvarna 532161696

Cap Asm Fuel

$

$

Not available

33

Husqvarna 532123487

Clamp Hose Blk

$7.49

$

In Stock, only 4 left!

0

34

Husqvarna 532106082

Pad, Spacer

$

$

Not available

37

Husqvarna 532142158

Line Fuel
(Superseded to 587044854)

$17.99

$

In Stock, only 2 left!

0

38

Plug Drain Oil

$

$

Not available

39

Husqvarna 532109227

Pad, Idler

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 817000612

Screw Hexwsh Thdr 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

81

Husqvarna 873510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

101

Husqvarna 532163305

Nut Flange M8-1.25
(Superseded to 873030800)

$

$

Not available

105

Husqvarna 817120616

Screw 3/8-16 x 1

$5.99

$

In Stock, Qty 19

0
