YTH 1848 XP (954567260-E) - Husqvarna 48" Yard Tractor (2002-02) Chassis And Enclosures Parts Diagram

48" Yard Tractor

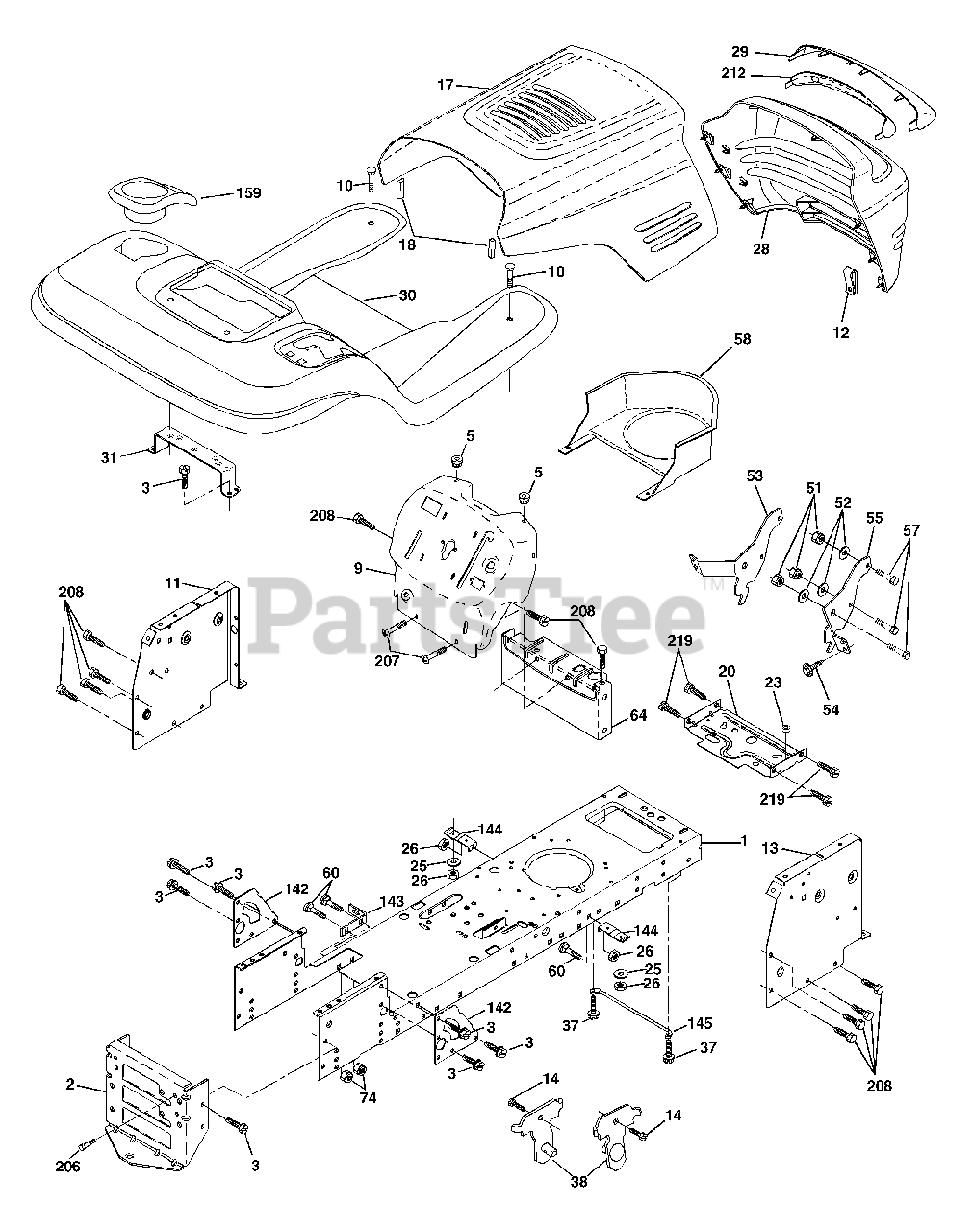

Chassis And Enclosures Parts Diagram

  • Title

1

Husqvarna 532174619

Chassis Stamping
(Superseded to 579841401)

$433.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532176554

Drawbar

$43.99

$

Usually ships in 3-10 days

0

3

Husqvarna 817060612

Screw 3/8-16x3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

5

Husqvarna 532155272

Bumper

$7.49

$

In Stock, only 3 left!

0

9

Husqvarna 532171682

Dashboard
(Superseded to 532168346)

$

$

Not available

10

Husqvarna 872140608

Bolt Rdhd Sqnk 3/8-16 Unc x 1
(Superseded to 872110608)

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532174996

Panel Dash Lh

$

$

Not available

12

Husqvarna 532145660

Clip Tinnerman Grille

$3.49

$

In Stock, only 1 left!

0

13

Husqvarna 532172106

Panel Dash Rh

$18.99

$

Usually ships in 3-10 days

0

14

Husqvarna 817490608

Screw Thdrol 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532162237

Hood
(Superseded to 532159639)

$61.99

$

In Stock, only 2 left!

0

18

Husqvarna 532126938

Bumper

$

$

Not available

20

Husqvarna 532180679

Plate Mtg Battery/Fuel Tank

$11.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532124028

Bushing

$5.99

$

In Stock, only 3 left!

0

25

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 873800600

Nut Lock w/Insert 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532179845

Grille Lens Asm

$

$

Not available

29

Husqvarna 532176645

Lens
(Superseded to 532146654)

$

$

Not available

30

Husqvarna 532181001

Fender
(Superseded to 583713401)

$303.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532139976

Bracket

$17.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532175710

Bracket Asm Pivot Mower Rear

$11.99

$

Usually ships in 3-10 days

0

51

Husqvarna 873800400

Nut Lock w/Insert 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

52

Husqvarna 819091416

Washer 9/32 x 7/8 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532144697

Bracket Grille Lh

$

$

Not available

54

Husqvarna 532161464

Screw Hex Wshd 8-18 x 7/8

$

$

Not available

55

Husqvarna 532144696

Bracket Grille Rh

$

$

Not available

57

Husqvarna 874780412

Bolt Fin Hex 1/4-20 Unc x 3/4
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532174930

Duct Air

$

$

Not available

60

Husqvarna 872140606

Bolt RDHD SQNK 3/8-16 x 3/4

$

$

Not available

64

Husqvarna 532154798

Dash Lower Stlt

$20.99

$

Usually ships in 3-10 days

0

74

Husqvarna 873680600

Nut Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

142

Husqvarna 532175702

Plate Reinforcement

$9.49

$

Usually ships in 3-10 days

0

143

Husqvarna 532154966

Bracket Swaybar Chassis
(Superseded to 532186689)

$6.99

$

In Stock, only 2 left!

0

144

Husqvarna 532175582

Bracket Ft Rest

$7.49

$

Usually ships in 3-10 days

0

145

Husqvarna 532156524

Rod Pivot Chassis Hood
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

159

Husqvarna 532166508

Cupholder YTGT Grey
(Superseded to 532155123)

$

$

Not available

206

Husqvarna 532170165

Bolt Shoulder 5/16-18 TT

$4.99

$

In Stock, Qty 7

0

207

Husqvarna 817670508

Screw Thdrol 5/16-18 x 1/2 TYTT

$9.49

$

In Stock, only 2 left!

0

208

Husqvarna 817670608

Screw Thdrol 3/8-16 x 1/2 Ty-TT

$6.49

$

Usually ships in 3-10 days

0

212

Husqvarna 532156229

Insert Lens Reflect
(Superseded to 532174503)

$26.99

$

Usually ships in 3-10 days

0

219

UNKNOWN

$

$

Not available
