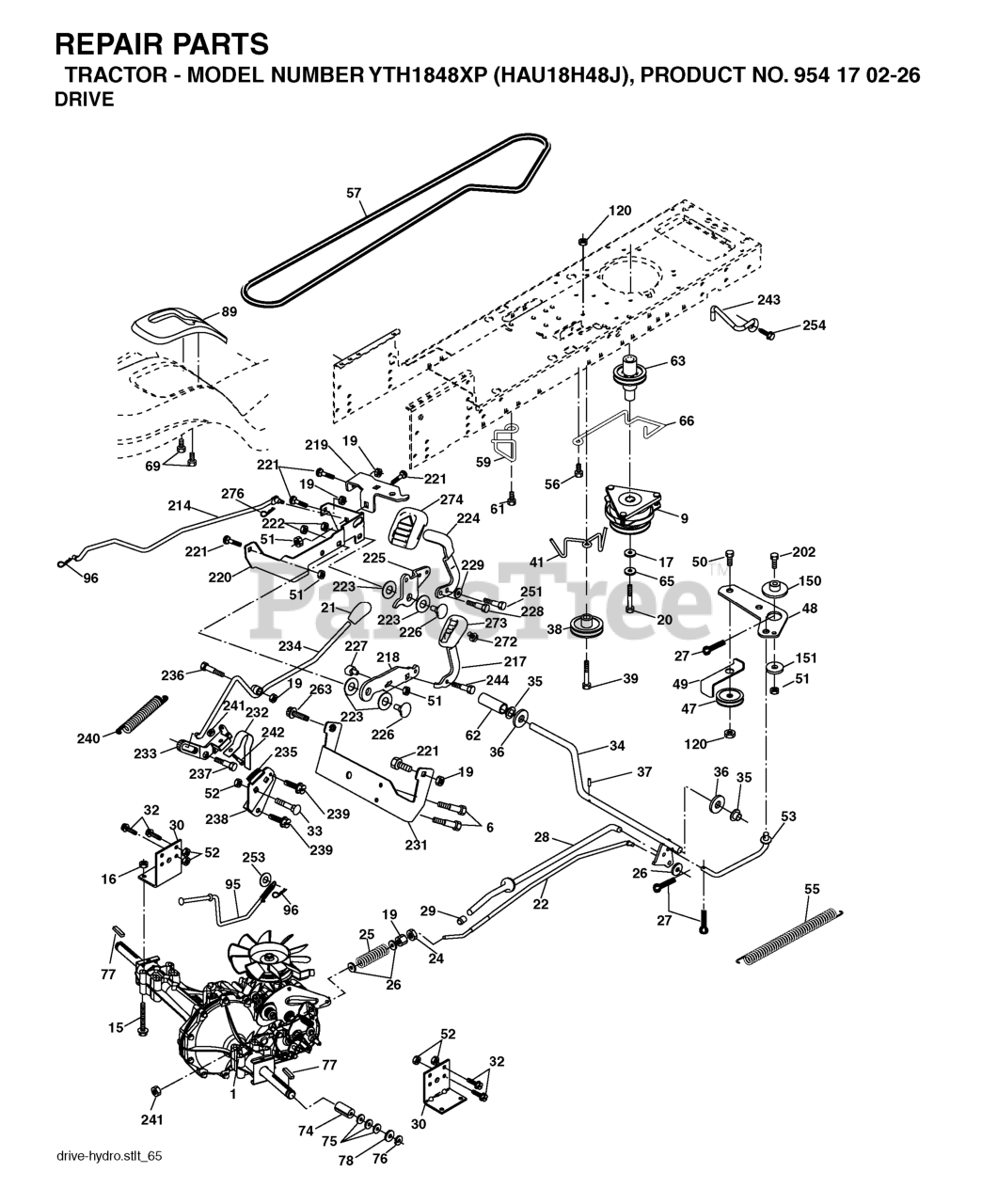

YTH 1848 XP (954170226-J) - Husqvarna 48" Yard Tractor (2004-09) DRIVE Parts Diagram

48" Yard Tractor

DRIVE Parts Diagram

  • Title
539 10 10-80

Husqvarna 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

539 10 93-68

Husqvarna 539109368

PLASTIC BUSHING

$4.99

$

Usually ships in 3-10 days

0

539 10 35-47

$0.99

$

In Stock, only 2 left!

0

539 11 23-13

Husqvarna 539112313

BRAKE SHAFT

$122.99

$

Usually ships in 3-10 days

0

539 99 06-27

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

539 97 69-98

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

539 99 03-16

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

539 99 06-92

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

539 99 10-34

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539 11 20-88

Husqvarna 539112088

CONTROL ARM

$

$

Not available

539 11 20-96

Husqvarna 539112096

CONTROL WELDMENT, LEFT

$728.99

$

Usually ships in 3-10 days

0

539 11 08-27

Husqvarna 539110827

LT DRIVE LEVER WLDMT

$60.99

$

Usually ships in 3-10 days

0

539 10 25-93

Husqvarna 539102593

WASHER, 3/8 DISC SPRING SPEC

$3.99

$

In Stock, only 4 left!

0

539 10 25-92

$

$

Not available

539 99 05-85

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

539 11 23-00

Husqvarna 539112300

DAMPENER BRACKET

$40.99

$

Usually ships in 3-10 days

0

539 10 27-20

$66.99

$

In Stock, only 3 left!

0

539 97 69-88

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

539 99 06-55

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

539 97 69-79

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539 11 23-06

Husqvarna 539112306

PIVOT SHAFT

$24.99

$

Usually ships in 3-10 days

0

539 11 20-95

Husqvarna 539112095

CONTROL WELDMENT, RIGHT

$607.99

$

Usually ships in 3-10 days

0

539 99 10-34

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

539 99 06-55

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

539 11 08-26

Husqvarna 539110826

RT DRIVE LEVER WLDMT

$60.99

$

Usually ships in 3-10 days

0

539 97 69-79

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539 11 31-07

Husqvarna 539113107

RIVET, NYLON PUSH-IN

$4.99

$

Usually ships in 3-10 days

0
