YTH 1848 XP (954170057-C) - Husqvarna 48" Yard Tractor (2003-01) MOWER LIFT / DECK LIFT Parts Diagram

48" Yard Tractor

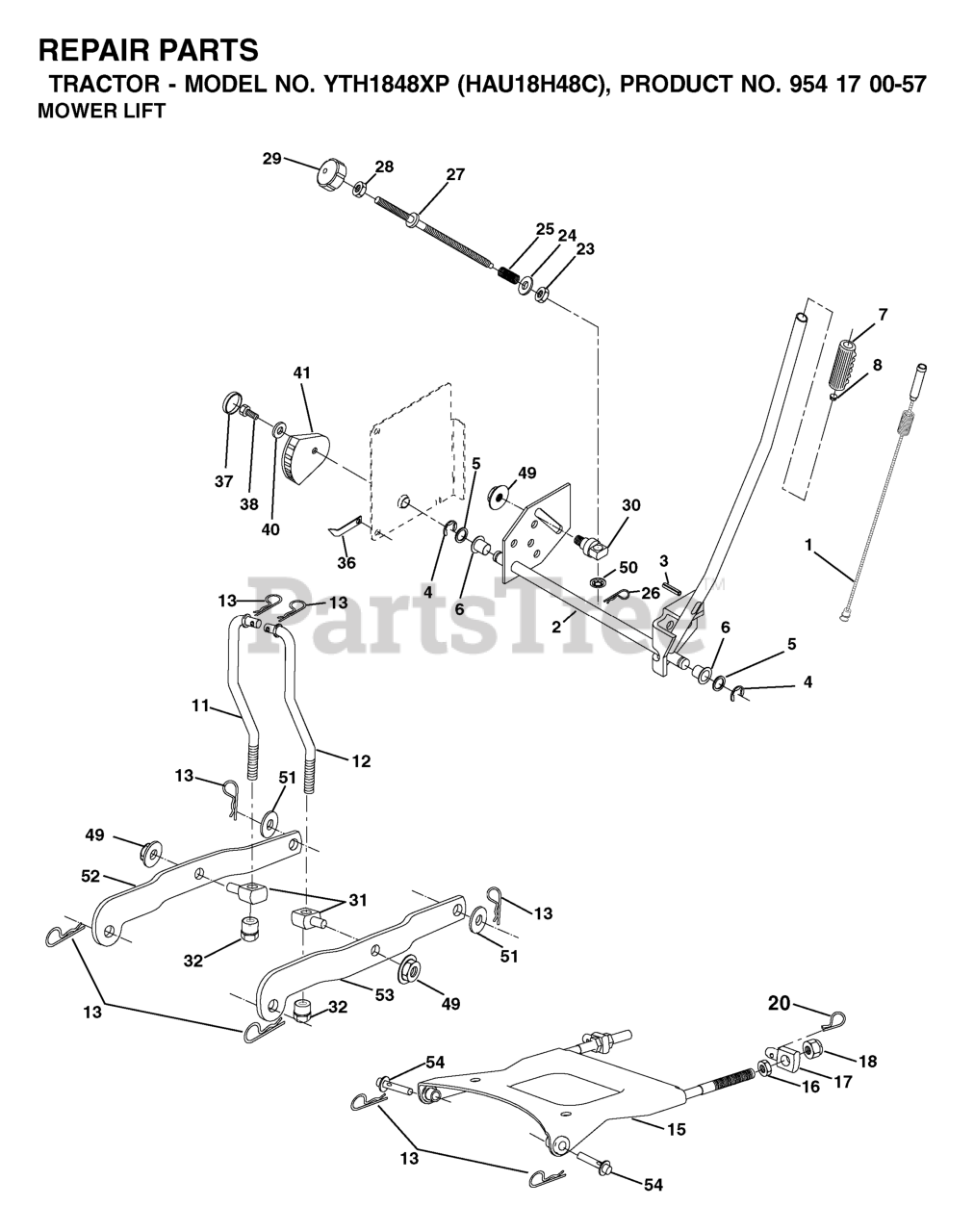

MOWER LIFT / DECK LIFT Parts Diagram

  • Title
27

Husqvarna 532126971

ROD ADJ LIFT

$

$

Not available

16

Husqvarna 873350800

NUT.HEX.JAM.1/2-13

$

$

Not available

50

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532155098

IND. HEIGHT STLT

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 532175378

ARM SUSP. REAR LH

$

$

Not available

49

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 532138057

KNOB INF 3/8-16

$8.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

54

Husqvarna 532175560

PIN.FLANGE

$13.99

$

In Stock, only 2 left!

0

$6.49

$

In Stock, Qty 5

0

17

$

$

Not available

8

Husqvarna 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

30

$12.99

$

Usually ships in 3-10 days

0

37

$5.99

$

Usually ships in 3-10 days

0

51

Husqvarna 819171416

Washer 1 17/32 X 7/8 X 16 Ga

$4.99

$

In Stock, Qty 8

0

20

Husqvarna 532163552

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 532155097

POINTER, HEIGHT INDICATOR(2 2)

$

$

Not available

26

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

15

Husqvarna 532175562

PLATE ASM SUSP FRONT

$109.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532125631

GRIP HANDLE

$7.99

$

In Stock, only 1 left!

0

53

Husqvarna 532175802

ARM SUSP REAR RH

$103.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, only 2 left!

0

25

Husqvarna 532124874

SPRING**
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532159471

SHAFT ASM R HANDLE

$54.99

$

Usually ships in 3-10 days

0

28

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

1

Husqvarna 532159460

WIRE ASM INNER W/ PLUNGER LT

$26.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532175371

LIFT LINK RH

$14.99

$

In Stock, only 1 left!

0

13

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532105767

PIN GROOVE.

$6.49

$

In Stock, only 3 left!

0

31

$7.99

$

In Stock, Qty 5

0

38

Husqvarna 817060516

SCREW 5/16-18X1

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 812000002

RETAINING RING LT

$7.49

$

In Stock, only 1 left!

0

$

$

Not available

18

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532175994

NUT, LIFT LINK 7/16-20
(Superseded to 589464902)

$4.99

$

In Stock, Qty 5

0

11

Husqvarna 532175370

LIFT LINK LH

$

$

Not available
