YTH 1848 XP (954170057-A) - Husqvarna 48" Yard Tractor (2003-01) MOWER DECK / CUTTING DECK Parts Diagram

48" Yard Tractor

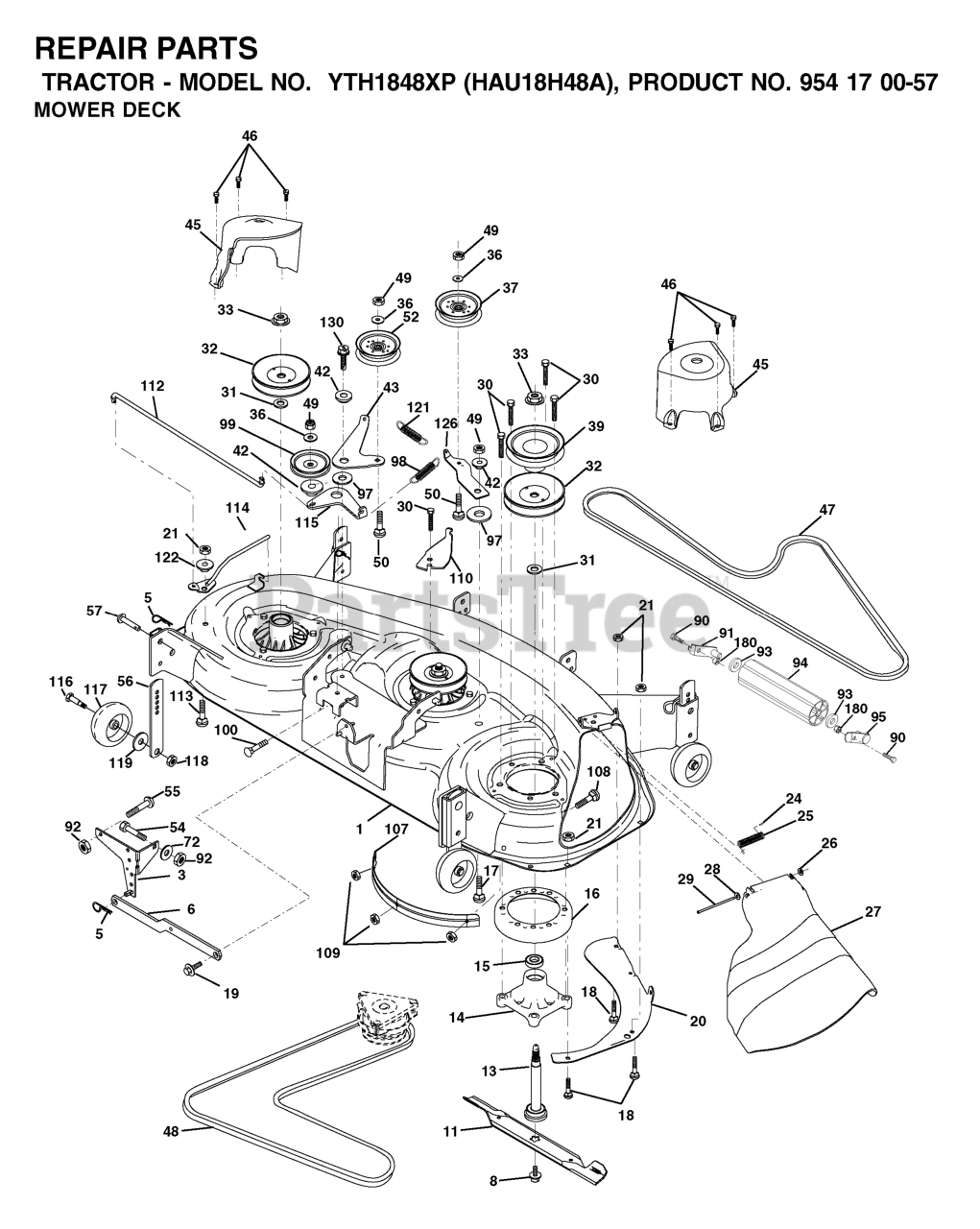

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

121

Husqvarna 532174371

SPRING.DRIVE.SECONDARY.48".DEC

$

$

Not available

39

Husqvarna 532174375

PULLEY.DRIVEN.DECK.48'

$39.99

$

In Stock, Qty 6

0

13

Husqvarna 532174360

SHAFT ASM W/LOWER BEARING

$66.99

$

In Stock, only 1 left!

0

3

Husqvarna 532138017

BRKT ASM SWAY BAR

$12.99

$

Usually ships in 3-10 days

0

118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

92

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

- -

Husqvarna 532174356

MANDREL ASM
(Superseded to 587125201)

$56.99

$

In Stock, only 4 left!

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

126

Husqvarna 532174372

ARM, IDLER PRIMARY DECK

$

$

Not available

48

Husqvarna 532174368

V-BELT PRIMARY 48"

$56.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 532174343

COVER, MANDREL DECK
(Superseded to 532180806)

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

112

Husqvarna 532174387

LEVER, TENSION RELIEF LINK

$

$

Not available

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 13

0

93

Husqvarna 819171416

Washer 1 17/32 X 7/8 X 16 Ga

$4.99

$

In Stock, Qty 8

0

109

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

52

Husqvarna 532175820

PULLEY.IDLER.FLAT.46.PR.DR.

$

$

Not available

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

16

Husqvarna 532174493

STRIPPER.MANDREL.ROUND.BLACK

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 532174365

BOLT 7/16 ASM BLADE
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

90

Husqvarna 874760516

BOLT RB
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532157722

SCREW THDROL ROLLING WASHER HD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

72

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

114

Husqvarna 532174384

LEVER ASM, TENSION RELIEF

$

$

Not available

91

Husqvarna 532175384

BRKT ASM NOSEROLLER(L)48"

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532173920

BLADE
(Superseded to 532180054)

$22.99

$

In Stock, Qty 20+

0

110

Husqvarna 532175016

ARM, SPRING SECONDARY

$

$

Not available

37

Husqvarna 532177968

PULLEY.IDLER.FLAT

$31.99

$

In Stock, Qty 9

0

33

Husqvarna 532178342

NUT, FLG TOPLOCK 9/16"
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

49

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532181028

Tension Asm Relief Lever

$

$

Currently unavailable

122

Husqvarna 532174606

BUSHING, PIVOT TENSION RELIEF

$4.99

$

In Stock, only 2 left!

0

42

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

117

Husqvarna 532133957

WHEEL GAGE DONUT

$13.99

$

In Stock, Qty 10

0

98

Husqvarna 532179479

SPRING PRIMARY DRIVE

$

$

Not available

99

Husqvarna 532175080

PULLEY,IDLER"V"
(Superseded to 532189993)

$66.99

$

In Stock, Qty 10

0

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

43

Husqvarna 532174373

ARM, IDLER SECONDARY

$

$

Not available

6

Husqvarna 532130832

REAR SUSP ARM
(Superseded to 532130833)

$8.99

$

In Stock, only 4 left!

0

180

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532177865

PULLEY, MANDREL
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

116

Husqvarna 532137644

BOLT, SHOULDER
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

56

Husqvarna 532155986

BAR.ADJUST.WHEEL.ANTI.SCALP.BL

$20.99

$

In Stock, Qty 10

0

20

Husqvarna 532174378

BAFFLE, VORTEX MWR

$14.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532156941

RIVET.PIN.HEAD.YELLOW.

$

$

Not available

15

$13.99

$

In Stock, Qty 11

0

130

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

55

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

17

Husqvarna 872110610

BOLT
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

113

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532174358

HOUSING, MANDREL 48"

$56.99

$

In Stock, only 3 left!

0

$6.49

$

Usually ships in 3-10 days

0

115

Husqvarna 532174609

ARM, SPRING TENSION RELIEF

$5.99

$

In Stock, only 1 left!

0

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532178102

SPRING, TORSION
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

107

Husqvarna 532175294

BAFFLE.VAC.EDGE.MOWER.48"

$

$

Not available

97

Husqvarna 532133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532181031

SHIELD, DEFLECTOR MOWER
(Superseded to 532180655)

$45.99

$

In Stock, only 4 left!

0

- -

Husqvarna 532177146

DECK 48"
(Superseded to 532181591)

$

$

Not available

47

Husqvarna 532174369

V-BELT, MWR SECONDARY
(Superseded to 532180808)

$56.99

$

In Stock, Qty 6

0

95

Husqvarna 532175996

BRKT, ASM NOSEROLLER(R)48

$

$

Not available

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available
