YTH 1846 (917223840) - Husqvarna 46" Yard Tractor (2017-12) MOWER DECK / CUTTING DECK Parts Diagram

46" Yard Tractor

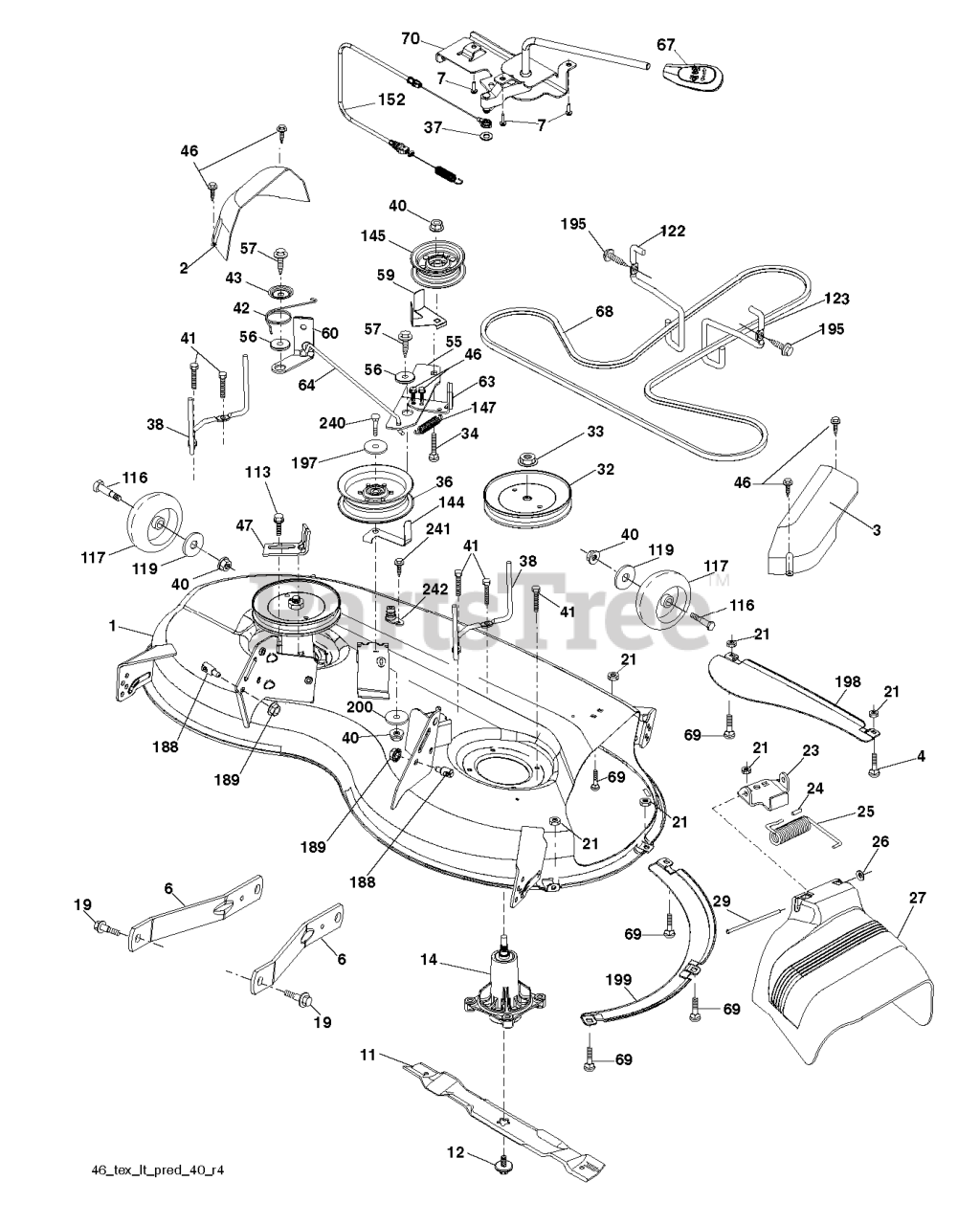

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

37

Husqvarna 596565301

WASHER PLAIN WASHER 3/8 X 0.08

$3.99

$

In Stock, Qty 20+

0

197

Husqvarna 596133201

Washers

$6.99

$

In Stock, Qty 5

0

2

Husqvarna 532405506

COVER.MANDREL.RH.46"

$47.99

$

In Stock, only 4 left!

0

33

Husqvarna 596134801

Nuts

$4.99

$

In Stock, Qty 12

0

38

Husqvarna 589676102

KEEPER.BLT.PNT.MNDRL.PULL.6.25
(Superseded to 589676103)

$7.99

$

In Stock, Qty 12

0

47

Husqvarna 532197250

BRKT.CLUTCH.CABLE

$6.49

$

In Stock, only 2 left!

0

188

Husqvarna 593824001

STUD.W/"D"ANTI-ROTATION

$4.99

$

In Stock, Qty 20+

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 14

0

29

Husqvarna 595297001

Rods

$5.99

$

In Stock, Qty 20+

0

3

Husqvarna 532405507

COVER.MANDREL.LH.46"

$47.99

$

In Stock, only 2 left!

0

--

Husqvarna 593801101

DECK.SVC.46HP.C.2GW.SAD.WP.498

$848.99

$

Usually ships in 3-10 days

0

242

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 17

0

123

Husqvarna 532197259

KEEPER BELT RH

Note: RH

$

$

Not available

122

Husqvarna 532197258

KEEPER BELT ENGINE LH
(Superseded to 531169501)

Note: LH

$7.49

$

In Stock, only 4 left!

0

14

Husqvarna 587819701

KIT.MANDREL.NONGREASE.TALL

$56.99

$

In Stock, Qty 17

0

198

Husqvarna 532403149

BAFFLE CENTER FRONT

$

$

Not available

67

Husqvarna 532403012

HANDLE.CLUTCH.CABLE.LT

$12.99

$

In Stock, only 1 left!

0

241

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

69

Husqvarna 596136401

Bolts

$3.99

$

In Stock, Qty 20+

0

144

Husqvarna 532199204

KEEPER.BELT.MOWER

$6.49

$

Usually ships in 3-10 days

0

34

Husqvarna 596136101

GSPW Bolts

$3.99

$

In Stock, Qty 5

0

240

Husqvarna 874520636

BOLT-HEX EAK

$3.99

$

Usually ships in 3-10 days

0

152

Husqvarna 584243501

CABLE.MECHANICAL.CLUTCH

$34.99

$

In Stock, Qty 8

0

189

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, only 2 left!

0

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 6

0

11

Husqvarna 532405380

BLADE.MOWER.46".HI.LIFT

Note: FOR BAGGING OR DISCHARGING

$18.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 15

0

119

Husqvarna 596134901

GSPH

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532197249

IDLER.ARM

$

$

Not available

70

Husqvarna 532199972

CLUTCH.ASM.MANUAL.YT.PREDATORQ

$87.99

$

In Stock, Qty 8

0

25

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 20+

0

116

Husqvarna 596434402

Bolts

$4.99

$

In Stock, only 3 left!

0

145

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, Qty 9

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, only 2 left!

0

117

Husqvarna 589527401

WHEEL.GAUGE.RALLY.NARROW

$11.99

$

In Stock, Qty 8

0

1

Husqvarna 532408486

RP DECK.WELDMENT.46"(2GA.WHL)
(Superseded to 591111601)

$512.99

$

Usually ships in 3-10 days

0

147

Husqvarna 532401872

SPRING RETURN

$5.99

$

In Stock, Qty 7

0

23

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 8

0

12

Husqvarna 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

113

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

27

Husqvarna 532405357

SHIELD.DEFLECTOR.MOWER.46"BLAC

$74.99

$

In Stock, Qty 5

0

60

Husqvarna 532199471

ARM BRAKE MOWER RH 38"
(Superseded to 532400132)

$17.99

$

In Stock, only 3 left!

0

57

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

19

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

195

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

42

Husqvarna 532198410

SPRING.TORSION.BRAKE

$6.49

$

In Stock, Qty 6

0

64

Husqvarna 532405138

LINKAGE BRAKE
(Superseded to 532405139)

$37.99

$

In Stock, Qty 19

0

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

200

Husqvarna 532413524

WASHER.13/32 X 1 X 1/2.11GUARD

$

$

Not available

43

Husqvarna 532197256

SRPING.TORSION.RETAINE

$6.49

$

In Stock, Qty 7

0

56

Husqvarna 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

63

Husqvarna 532199477

ARM BRAKE MOWER
(Superseded to 532199478)

$17.99

$

In Stock, Qty 16

0

21

Husqvarna 596040501

Hardware

$3.99

$

In Stock, Qty 20+

0

68

Husqvarna 532405143

V-BELT
(Superseded to 584453101)

$56.99

$

In Stock, Qty 20+

0

4

Husqvarna 596030501

SCREW HEXAGON HEAD SCREW 5/16-

$4.99

$

In Stock, Qty 20+

0

199

Husqvarna 532403150

BAFFLE FRONT RH

$

$

Not available

32

Husqvarna 532197473

PULLEY.MANDREL.5.438.PD
(Superseded to 532195945)

$14.99

$

In Stock, Qty 16

0

41

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 16

0
