YTH 1842 - Husqvarna 42" Yard Tractor (Original) ENGINE Parts Diagram

42" Yard Tractor

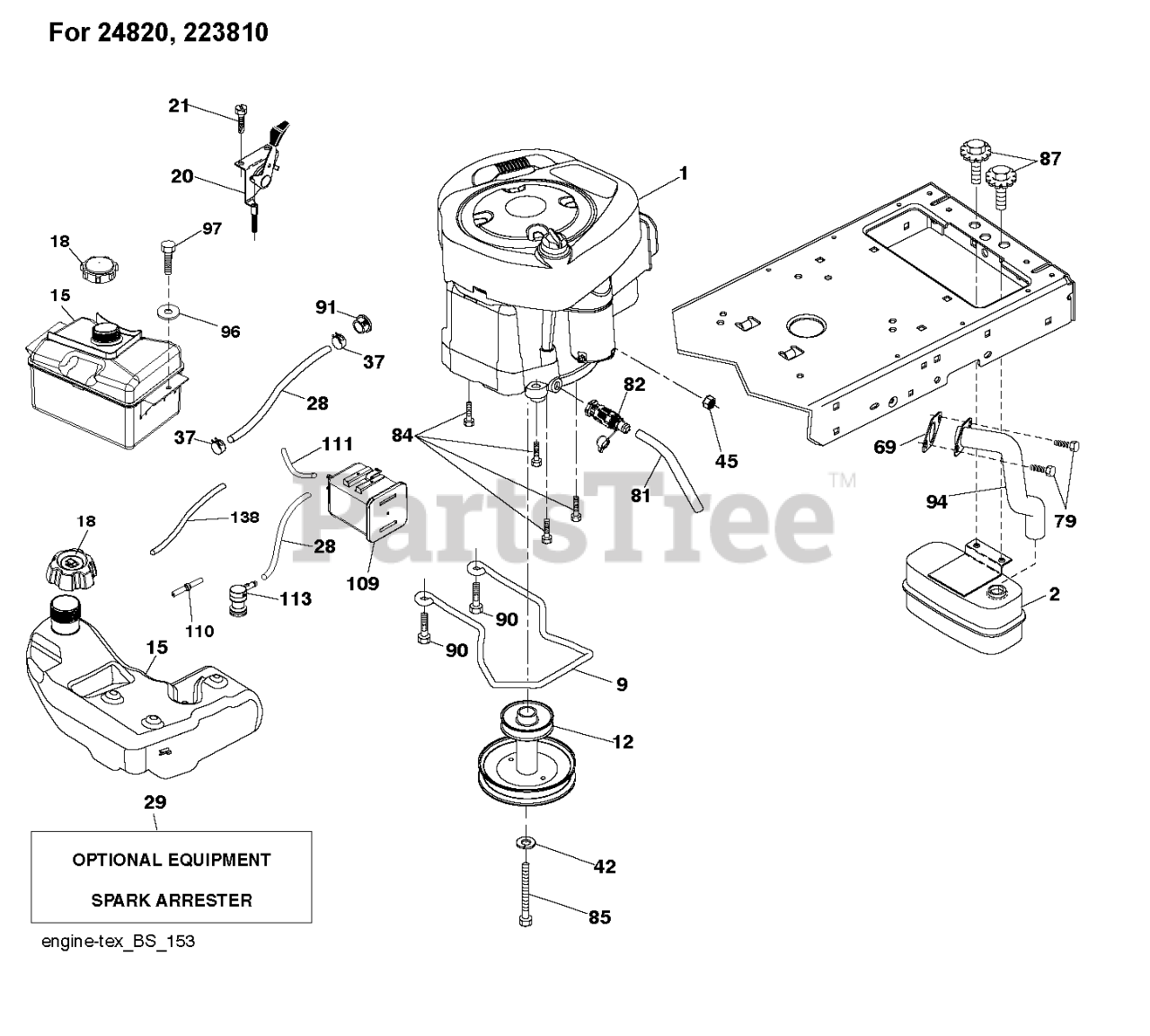

ENGINE Parts Diagram

  • Title

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

15

Husqvarna 597954502

FUEL TANKS

Note: Fits 2.75" filler neck. For 223810

$125.99

$

Usually ships in 3-10 days

0

96

Husqvarna 596135301

Washers

Note: For 223810

$3.99

$

In Stock, Qty 6

0

69

Husqvarna 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

Note: For 223810

$6.49

$

In Stock, only 2 left!

0

21

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 15

0

12

Husqvarna 586478501

ENGINE.PULLEY

$40.99

$

In Stock, only 1 left!

0

18

Husqvarna 581176101

CAP.FUEL.2 WAY VENT

Note: Fits 2.75" filler neck. For 223810

$53.99

$

In Stock, only 1 left!

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$20.99

$

In Stock, only 2 left!

0

85

Husqvarna 501606501

BOLT.HEX.7/16-20X4.GR5.1.5BLUE

$4.99

$

In Stock, only 1 left!

0

110

Husqvarna 532414118

VALVE.ASM.ANTI-SLOSH

$27.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 5

0

113

Husqvarna 532414127

VALVE.SLANT.CARTRDG.90 DEG.TEX

$

$

Not available

111

Husqvarna 596941501

TUBE.PURGE.FUEL.1875

$2.49

$

Usually ships in 3-10 days

0

18

Husqvarna 599502201

Fuel Caps

Note: Fits 2.75" filler neck. For 243820

$60.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, only 4 left!

0

138

Husqvarna 596941501

TUBE.PURGE.FUEL.1875

Note: For 223810

$2.49

$

Usually ships in 3-10 days

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 2 left!

0

2

Husqvarna 590645301

MUFFLER.ASM.SINGLE
(Superseded to 590645302)

$45.99

$

Usually ships in 3-10 days

0

15

Husqvarna 599837601

FUEL TANKS

Note: Fits 2.75" filler neck. For 243820

$364.99

$

Usually ships in 3-10 days

0

79

Husqvarna 596134201

Screws

$3.99

$

In Stock, Qty 7

0

45

Husqvarna 596133601

Hardware

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

42

Husqvarna 596238901

Washers

$3.99

$

In Stock, Qty 20+

0

109

Husqvarna 532414114

CANNISTER, CARBON

$62.99

$

Usually ships in 3-10 days

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 2 left!

0

9

Husqvarna 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431

$

$

Not available

15

Husqvarna 597954503

FUEL TANK

Note: Fits 2.75" filler neck For 223810

$

$

Not available

94

Husqvarna 581880901

EXHAUST.TUBE.B&S.28/31

$31.99

$

In Stock, only 3 left!

0

15

Husqvarna 597954501

FUEL TANKS

Note: Fits 2.75" filler neck. For 223810

$

$

Not available

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

1

000000000

Note: ENGINE B&S MODEL NO. 33R777-0009-G1 (588640901)

$

$

Not available

20

Husqvarna 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

$37.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

18

Husqvarna 529989703

FUEL CAP

Note: Fits 2.00" filler neck

$14.99

$

Usually ships in 3-10 days

0
