YTH 1842 (960130002-01) - Husqvarna 42" Yard Tractor (2005-01) Mower Lift Parts Diagram

42" Yard Tractor

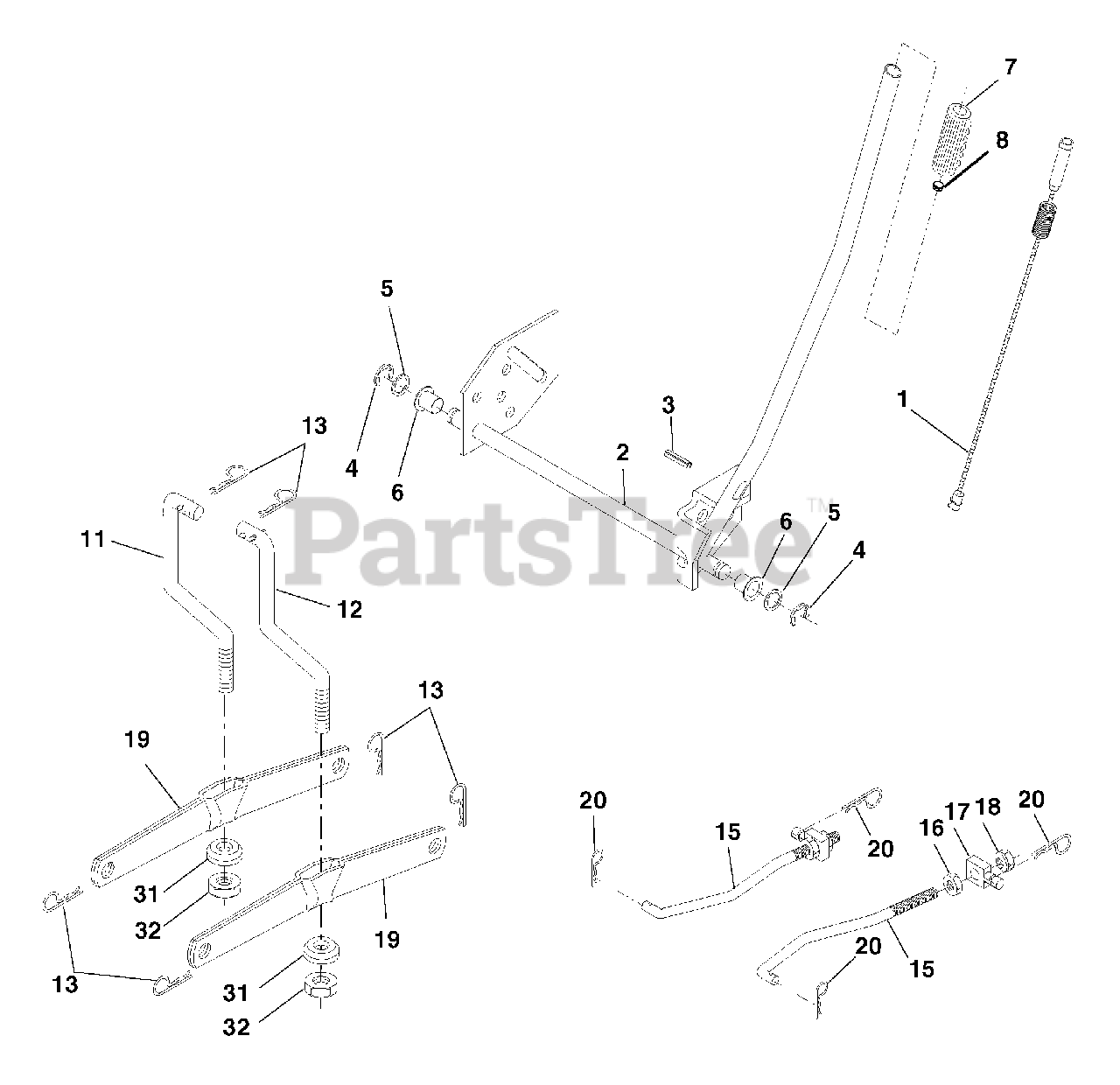

Mower Lift Parts Diagram

  • Title

1

Husqvarna 532159460

Plunger Asm.

$26.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532159471

Shaft Asm Lift RH w/Inf

$54.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532105767

Pin Groove

$6.49

$

In Stock, only 3 left!

0

4

Husqvarna 812000002

E Ring #5133-62

$7.49

$

In Stock, only 1 left!

0

5

Husqvarna 819211621

Washer 21/32 x 1 x 21 Ga.

$6.49

$

In Stock, only 2 left!

0

6

Husqvarna 532120183

Bearing Nylon Blk 629 Id

$6.99

$

In Stock, only 3 left!

0

7

Husqvarna 532125631

Grip Handle

$7.99

$

In Stock, only 1 left!

0

8

Husqvarna 532124526

Button Plunger
(Superseded to 532125925)

$

$

Not available

11

Husqvarna 532139865

Link Lift LH Fixed Length
(Superseded to 532145537)

$26.99

$

In Stock, only 1 left!

0

12

Husqvarna 532139866

Link Lift RH Fixed Length
(Superseded to 532145536)

$26.99

$

In Stock, only 3 left!

0

13

Husqvarna 532124670

Retainer Spring

$

$

Not available

15

Husqvarna 532173288

Link Front

$13.99

$

In Stock, only 2 left!

0

16

Husqvarna 873350800

Nut Jam Hex 1/2-13 unc

$

$

Not available

17

Husqvarna 532175689

Trunnion

$

$

Not available

18

Husqvarna 873800800

Nut Lock W/Wsh 1/2-13 unc
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 532139868

Arm Suspension Rear

$15.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532163552

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 532169865

Bearing Pvt Lift

$

$

Not available

32

Husqvarna 873540600

Nut Crownlock 3/8 - 24

$4.99

$

Usually ships in 3-10 days

0
