YTH 1842 (954569790-A) - Husqvarna 42" Yard Tractor (2003-01) Mower Deck Parts Diagram

42" Yard Tractor

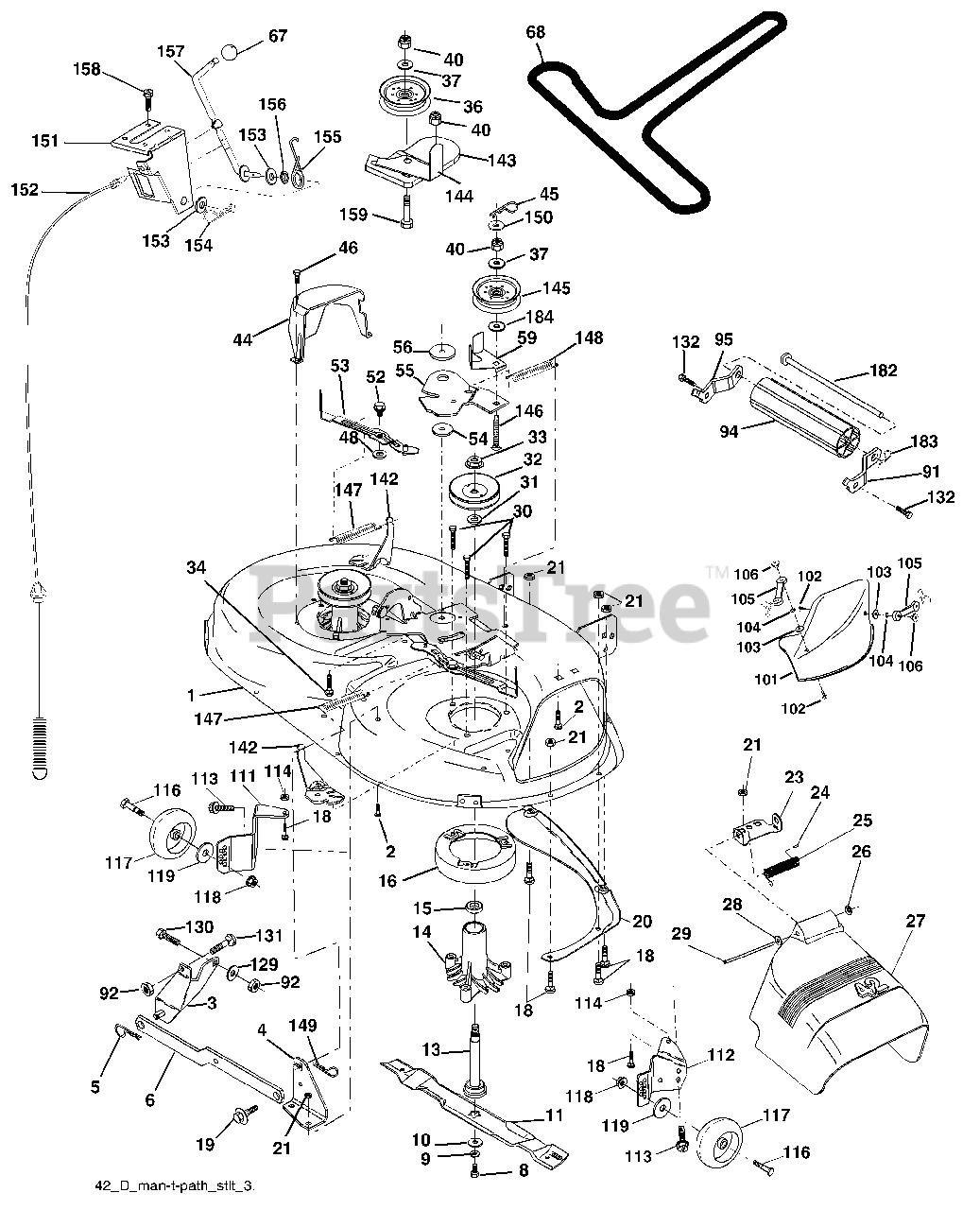

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532165892

Deck Asm MWR 42"weldment
(Superseded to 532176027)

$399.99

$

Usually ships in 3-10 days

0

2

Husqvarna 872140506

Bolt Rdhd Sqnk 5/16-18unc X3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 532138017

Bracket Asm Fr Sway Bar 38/42

$12.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532165460

Bracket Asm Deck 42"sway Bar

$13.99

$

In Stock, only 1 left!

0

5

Husqvarna 532124670

Retainer Spring

$

$

Not available

6

Husqvarna 532178024

Deck Sway Bar

$8.99

$

In Stock, only 4 left!

0

8

Husqvarna 532850857

Bolt 3/8 - 24 X 1.25 Gr 8

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 810030600

Washer Lock Hvy 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532140296

Washer Hard Blade Mower Vented

Note: (The following blades are available)

$6.99

$

In Stock, only 2 left!

0

11

Husqvarna 532134149

Blade, 42" Mulching Std
(Superseded to 594892701)

Note: (For mulching mowers only)

$

$

Not available

11

Husqvarna 532139775

Blade, 42" Mulching Premium
(Superseded to 594893101)

Note: (For better wear when mulching

$

$

Not available

11

Husqvarna 532138971

Blade, 42" Hi-Lift

Note: (For bagging or discharging)

$20.99

$

In Stock, Qty 20+

0

13

Husqvarna 532137645

Shaft Asm W/lower Bearing
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

14

Husqvarna 532128774

Housing Mandrel Vented

$34.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532110485

Bearing Ball Mandrel

$13.99

$

In Stock, Qty 6

0

16

Husqvarna 532174493

Stripper Mower

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 872140505

Bolt Rdhd Sqnk 5/16-18 X 5/8
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532132827

Bolt Shoulder

$

$

Not available

20

Husqvarna 532159770

Baffle Vortex 42

$

$

Not available

21

Husqvarna 873680500

Nut Crownlock 5/16-18 UNC
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532177563

Bracket Deflector Mower 42"

$

$

Not available

24

Husqvarna 532105304

Cap Sleeve 80x 112 Blk Mower

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532123713

Spring Torsion Deflector 2 52

$7.99

$

In Stock, only 2 left!

0

26

Husqvarna 532110452

Nut Push Phos & Oil

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532171859

Shield Deflector Mower 42" Blk
(Superseded to 532130968)

$39.99

$

In Stock, Qty 11

0

28

Husqvarna 819111016

Washer 11/32 X 5/8 X 16 Ga

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532131491

Rod Hinge 42"6 75 Wlg
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

Screw Thd Rolling
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532129963

Washer Spacer Mower Vented
(Superseded to 532187690)

$4.99

$

In Stock, Qty 9

0

32

Husqvarna 532153535

Pulley Mandrel 42"
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Husqvarna 532178342

Nut Toplock Flng
(Superseded to 596134801)

$4.99

$

In Stock, Qty 16

0

34

Husqvarna 872110614

Bolt Rdhd 3/8-16uncx1-3/4 Gr5

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532131494

Pulley Idler Flat 3 060
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

37

Husqvarna 819131316

Washer 13/32 X 13/16 X 16
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 873680600

Nut Crownlock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532140088

Guard Mandrel LH Black

$34.99

$

In Stock, Qty 10

0

45

Husqvarna 532124788

Spring Retainer 1" Zinc/cad
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

46

Husqvarna 532137729

Screw Hex Thd Cut 1/4-20 x 5/8 T

$4.99

$

In Stock, Qty 20+

0

48

Husqvarna 532133944

Washer Hardened Smaller

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 532139888

Bolt Shoulder 5/16-18 Unc Blkz

$6.49

$

In Stock, only 1 left!

0

53

Husqvarna 532184907

Arm Asm Pad Brake

$14.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532178515

Washer Hardened

$6.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532155046

Arm Idler 42"mower LT/YT
(Superseded to 531166601)

$17.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532165723

Spacer Retainer Mower

$6.99

$

In Stock, only 2 left!

0

59

Husqvarna 532141043

Guard TUV Idler
(Superseded to 531165901)

$5.99

$

In Stock, only 3 left!

0

67

Husqvarna 532106932

Knob Rd 3/8-16 Plstc Thds Blk

$7.99

$

In Stock, Qty 5

0

68

Husqvarna 532144959

V-Belt Mower 42"

$43.99

$

In Stock, Qty 20+

0

91

Husqvarna 532180532

Bracket Roller Nose LH

$4.99

$

Usually ships in 3-10 days

0

92

Husqvarna 873800600

Nut Lock Hex w/Ins. 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

94

Husqvarna 532132264

Roller Nose

$44.99

$

In Stock, Qty 20+

0

95

Husqvarna 532180533

Bracket Roller Nose RH

$6.49

$

Usually ships in 3-10 days

0

101

Husqvarna 532136420

Cover Mulch 42"

$29.99

$

In Stock, only 3 left!

0

102

Husqvarna 871081010

Screw Pan Head Phillip 10-24 x 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

103

Husqvarna 819061216

Washer #10

$4.99

$

Usually ships in 3-10 days

0

104

Husqvarna 810071000

Washer Lock #10

$4.99

$

In Stock, Qty 11

0

105

532160793

Latch Asm. Mulch

$

$

Not available

106

Husqvarna 532125004

Nut Weld #10-24
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

111

Husqvarna 532179292

Bracket Wheel Gauge LH 42" Deck
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

112

Husqvarna 532179293

Bracket Gauge Wheel RH 42" Deck
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

113

Husqvarna 817060510

Screw Tapping 3/8-16 x .625

$

$

Not available

114

Husqvarna 873510500

Nut Keps 5/16-18 Unc
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

116

Husqvarna 532124842

Bolt Shoulder
(Superseded to 532004898)

$

$

Not available

117

Husqvarna 532165746

Wheel Gauge

$

$

Not available

118

Husqvarna 873930600

Nut Centerlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Husqvarna 819121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

129

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

130

Husqvarna 872140608

Bolt Rd Hd Sqnk 3/8-16 Unc x 1
(Superseded to 872110608)

$4.99

$

Usually ships in 3-10 days

0

131

Husqvarna 874780616

Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

132

Husqvarna 817000612

Screw Hex Wsh Thdr. 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

142

Husqvarna 532165890

Arm Spring Brake Mower

$4.99

$

Usually ships in 3-10 days

0

143

Husqvarna 532157109

Bracket Arm Idler 42"

$6.49

$

Usually ships in 3-10 days

0

144

Husqvarna 532158634

Keeper Belt 42" Clutch
(Superseded to 532173441)

$9.99

$

In Stock, only 1 left!

0

145

Husqvarna 532165888

Pulley Idler Flat
(Superseded to 532173437)

$28.99

$

In Stock, only 3 left!

0

146

Husqvarna 532171977

Bolt Carriage Idler
(Superseded to 532173443)

$7.49

$

In Stock, Qty 7

0

147

Husqvarna 532131335

Spring Extension
(Superseded to 532179748)

$5.99

$

In Stock, Qty 9

0

148

Husqvarna 532169022

Spring Return Idler

$5.99

$

In Stock, Qty 9

0

149

Husqvarna 532165898

Retainer Spring Yellow

$7.49

$

Usually ships in 3-10 days

0

150

Husqvarna 819091216

Washer 9/32 x 3/4 x 16 Ga.

$

$

Not available

151

Husqvarna 532169670

Bracket Clutch Cable

$

$

Not available

152

Husqvarna 532169676

Clutch Cable 42"
(Superseded to 532175067)

$45.99

$

In Stock, Qty 6

0

153

Husqvarna 532169674

Washer Flat 3/8" Type B
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

154

Husqvarna 532169675

Spring Retainer

$7.49

$

In Stock, only 2 left!

0

155

Husqvarna 532169671

Spring Retention Lvr Cltch Cab

$6.49

$

Usually ships in 3-10 days

0

156

Husqvarna 532169672

Spacer Clutch Cable

$6.49

$

Usually ships in 3-10 days

0

157

Husqvarna 532169669

Rod Clutch Cable 3/8"

$

$

Not available

158

Husqvarna 817720408

Screw Hex Thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

159

Husqvarna 872140614

Bolt Rdhd Sqn 3/8-16 Unc x 1-3/4

$4.99

$

Usually ships in 3-10 days

0

182

Husqvarna 532179126

Rod Roller Nose

$

$

Not available

183

Husqvarna 532163552

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

184

Husqvarna 819131410

Washer 13/32 x 7/8 x 10 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

Husqvarna 532130794

Mandrel Assembly

Note: (Includes Housing, Shaft and Shaft Hardware Only-Pulley not Included)

$56.99

$

In Stock, Qty 5

0

Husqvarna 532169583

Replacement Mower, Complete

$848.99

$

Usually ships in 3-10 days

0
