YTH 183 T (960410209-00) - Husqvarna Yard Tractor (2010-10) MOWER DECK / CUTTING DECK Parts Diagram

Yard Tractor

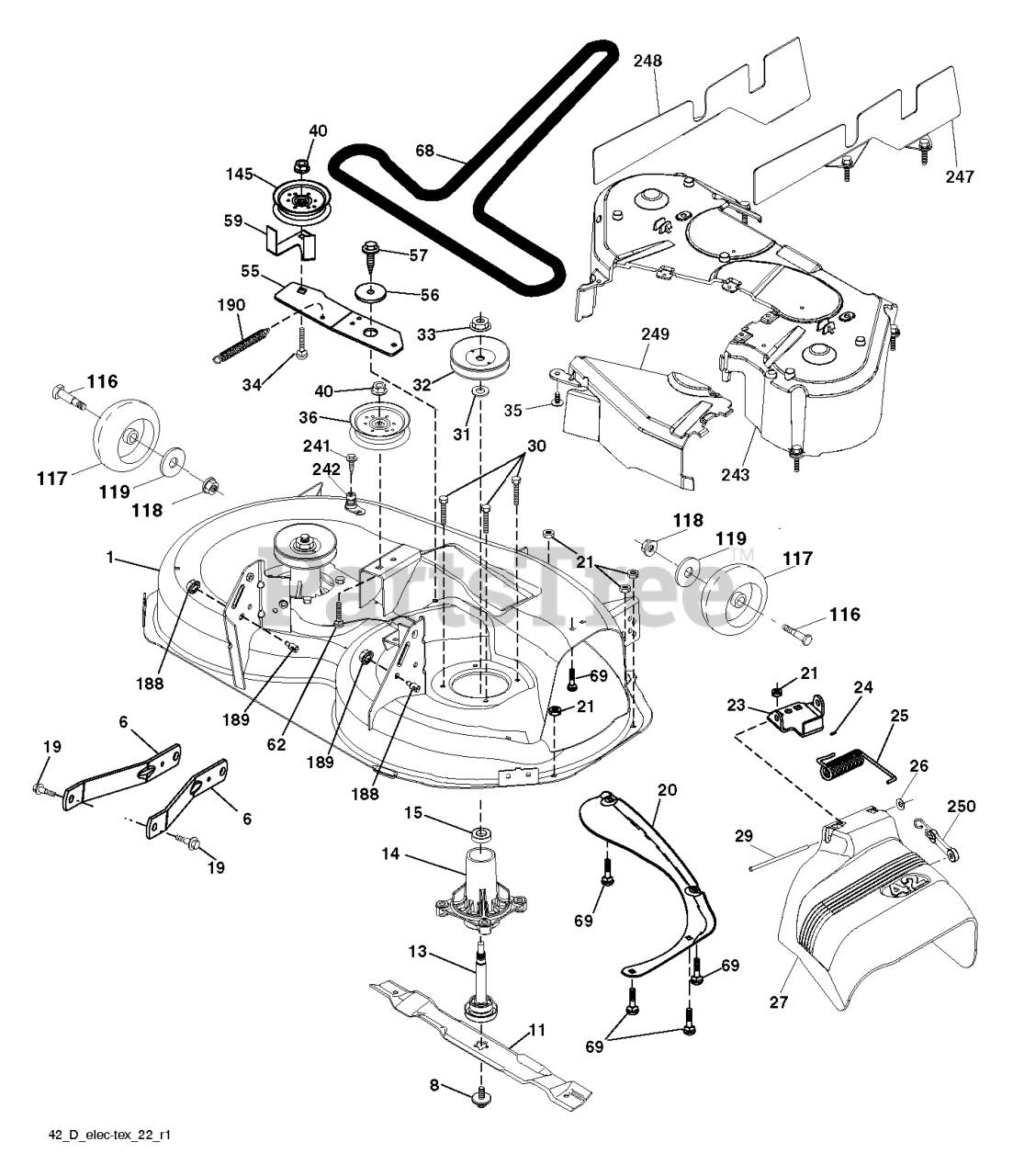

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
247

Husqvarna 532432393

SHIELD RIGHT
(Superseded to 583479701)

$30.99

$

Usually ships in 3-10 days

0

34

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

68

Husqvarna 532144959

BELT V SECONDARY

$43.99

$

In Stock, Qty 20+

0

57

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 2 left!

0

8

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 18

0

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

190

Husqvarna 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$11.99

$

In Stock, only 1 left!

0

250

Husqvarna 532436087

ELASTIC STRAP KIT
(Superseded to 583508201)

$14.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

$56.99

$

In Stock, Qty 19

0

188

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

249

Husqvarna 532406514

COVER CABLE CLUTCH
(Superseded to 583298901)

$20.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532187281

RP.HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 19

0

36

Husqvarna 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 20+

0

15

$13.99

$

In Stock, Qty 6

0

23

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 6

0

56

Husqvarna 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 12

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532199750

CUTTING DECK
(Superseded to 598602801)

$398.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 16

0

145

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, Qty 7

0

11

Husqvarna 532138971

42" HI-LIFT BLADE

$20.99

$

In Stock, Qty 20+

0

242

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 13

0

1

Husqvarna 532196495

DECK.WELDMENT.42"
(Superseded to 598602801)

$398.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532159770

BAFFLE.VORTEX

$

$

Not available

19

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

248

Husqvarna 532432392

SHIELD LEFT
(Superseded to 583479601)

$21.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

189

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

69

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, only 2 left!

0

118

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 532437110

IDLER.ARM.42"

$

$

Not available

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532133835

FASTENER.XMAS.TREE

$7.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532411485

DEFLECTOR ASM.42"TEX.FRENCH

$

$

Not available

32

Husqvarna 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

241

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

$6.49

$

Usually ships in 3-10 days

0

243

Husqvarna 532432394

COVER DECK
(Superseded to 583479801)

$60.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

117

Husqvarna 532188606

WHEEL.GAGE.HALF.SPOKED
(Superseded to 589527401)

$11.99

$

In Stock, Qty 8

0

6

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 19

0

116

Husqvarna 532124842

BOLT M
(Superseded to 532004898)

$

$

Not available

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, only 3 left!

0
