YTH 183 T (960410195-00) - Husqvarna Yard Tractor (2010-10) ENGINE Parts Diagram

Yard Tractor

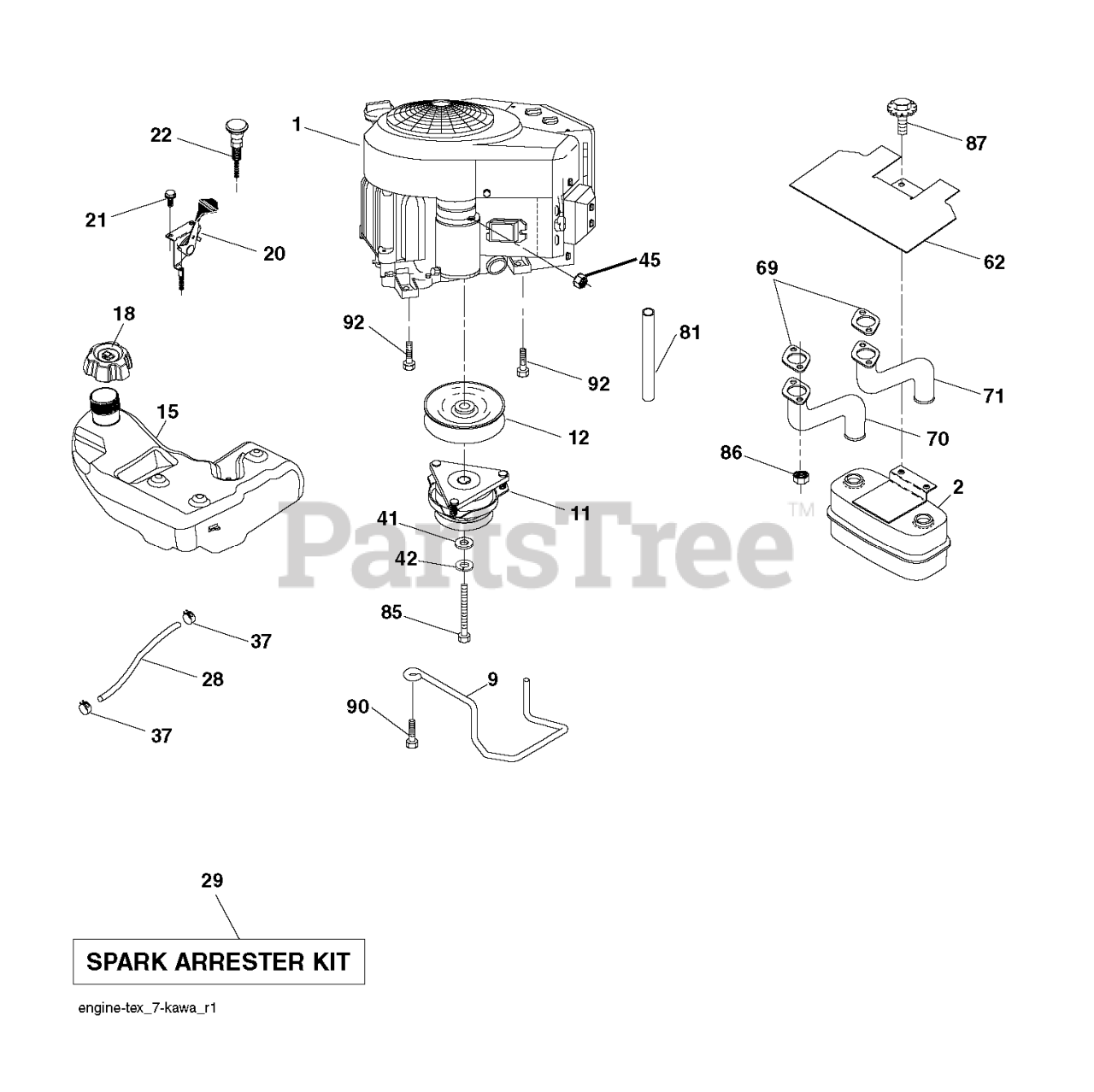

ENGINE Parts Diagram

  • Title
86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

In Stock, only 1 left!

0

22

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$40.99

$

In Stock, only 1 left!

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532424766

TUBE.EXHAUST.RH.FR961/FR730
(Superseded to 583955701)

$37.99

$

In Stock, only 1 left!

0

28

Husqvarna 532142158

REPL BY 532 00 85-43
(Superseded to 587044854)

$17.99

$

In Stock, only 1 left!

0

12

Husqvarna 532405097

PULLEY.ENGINE.TUFFTORQ

$100.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 584908001)

$

$

Not available

11

Husqvarna 532180505

RB.CLUTCH.OGURA.4.4.PD
(Superseded to 583389701)

$399.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

87

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 6

0

1

000000000

Note: ENGINE KAWA MODEL NO. FS541V-AS51 (437950)

$

$

Not available

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

$8.99

$

In Stock, only 3 left!

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

70

Husqvarna 532424765

TUBE.EXHAUST.LH.FR961/FR730
(Superseded to 583955601)

$37.99

$

In Stock, only 1 left!

0

$2.49

$

In Stock, Qty 20+

0

20

Husqvarna 532178385

THROTTLE CABLE
(Superseded to 532175437)

$44.99

$

In Stock, only 1 left!

0

18

Husqvarna 532439645

CAP.FL.R.3'N/CARB.H.CROWN.498
(Superseded to 584248702)

$17.99

$

In Stock, only 1 left!

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532193499

TANK.FUEL.4GAL

$145.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 6

0
