YTH 180 XP (960110119-00) - Husqvarna Yard Tractor (2006-01) MOWER DECK / CUTTING DECK Parts Diagram

Yard Tractor

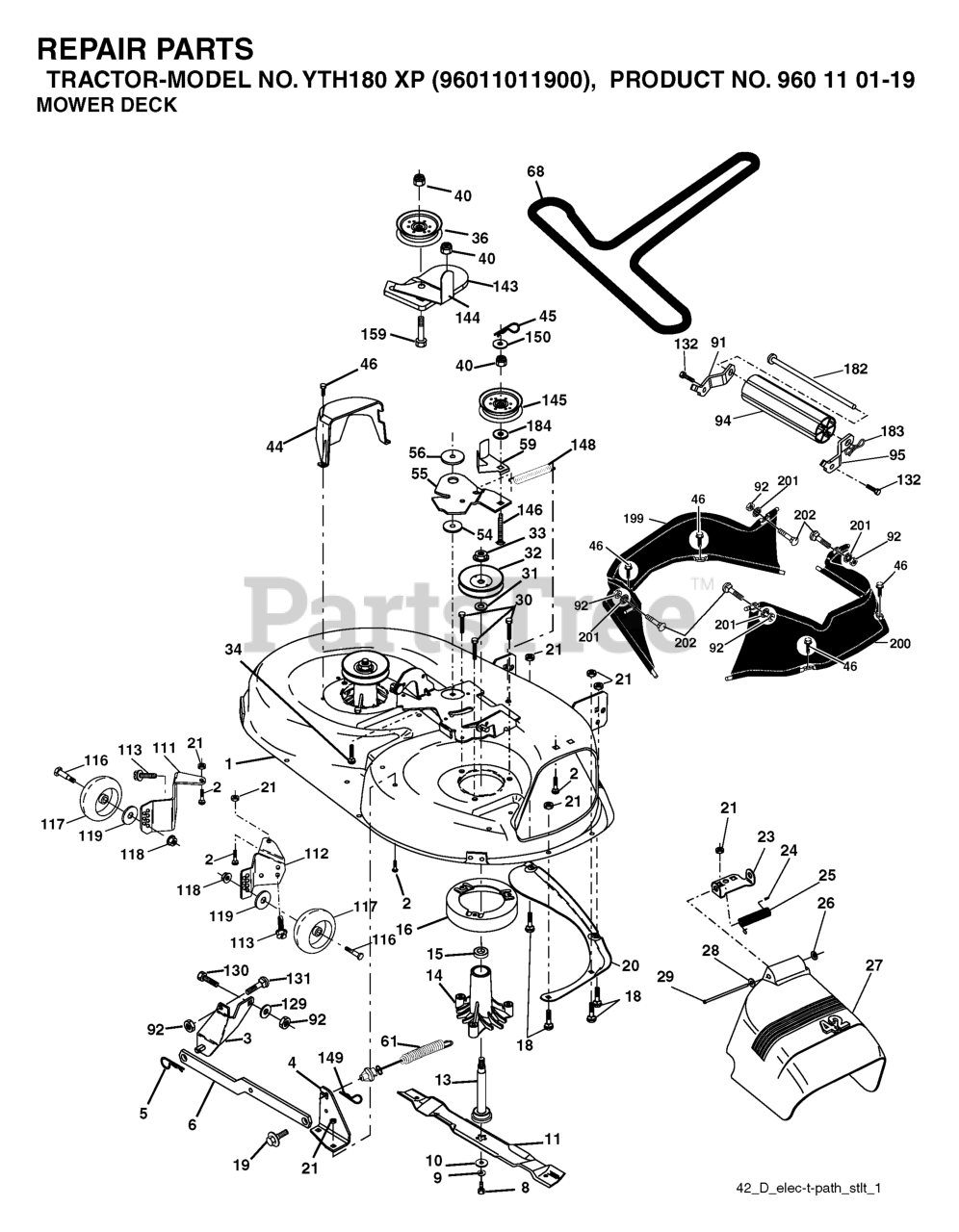

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

116

Husqvarna 532124842

BOLT M
(Superseded to 532004898)

$

$

Not available

112

Husqvarna 532179293

BRACKET, WHEEL
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 532138971

42" HI-LIFT BLADE

$20.99

$

In Stock, Qty 20+

0

32

Husqvarna 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

23

Husqvarna 532177563

BRKT, DEFL. MOWER

$

$

Not available

10

Husqvarna 532140296

WASHER.BLADE

$6.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532401431

SHIELD ASM.DFLCTR MOWER 42"BLK
(Superseded to 584465501)

$30.99

$

Usually ships in 3-10 days

0

184

Husqvarna 819131410

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, only 3 left!

0

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532187281

RP.HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 11

0

182

Husqvarna 532179126

ROD ROLLER NOSE STANDARD

$

$

Not available

- -

Husqvarna 532400834

NEEDS DESCRIPTION

$

$

Not available

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

143

Husqvarna 532157109

BRACKET, ARM IDLER

$6.49

$

Usually ships in 3-10 days

0

145

Husqvarna 532165888

PULLEY
(Superseded to 532173437)

$28.99

$

In Stock, only 3 left!

0

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 532138017

BRKT ASM SWAY BAR

$12.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

68

Husqvarna 532180260

NEEDS DESCRIPTION

$

$

Not available

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 16

0

4

Husqvarna 532165460

BRACKET SWAY BAR 42" DECK

$13.99

$

In Stock, only 1 left!

0

92

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532850857

BLADE BOLT

$4.99

$

In Stock, only 1 left!

0

202

Husqvarna 872110608

BOLT D
(Superseded to 596728201)

$4.99

$

Usually ships in 3-10 days

0

129

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

56

Husqvarna 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, only 2 left!

0

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

- -

Husqvarna 532130794

KIT.MANDREL.ASM.3.BOLT

$56.99

$

In Stock, Qty 5

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, only 2 left!

0

36

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

44

Husqvarna 532140088

GUARD MANDREL LH BLACK

$34.99

$

In Stock, Qty 10

0

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 532178024

BAR SWAY DECK

$8.99

$

In Stock, only 4 left!

0

$6.99

$

Usually ships in 3-10 days

0

117

Husqvarna 532188606

WHEEL.GAGE.HALF.SPOKED
(Superseded to 589527401)

$11.99

$

In Stock, Qty 10

0

20

Husqvarna 532159770

BAFFLE.VORTEX

$

$

Not available

13

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

148

Husqvarna 532169022

IDLER RETURN SPRING

$5.99

$

In Stock, Qty 9

0

150

$6.99

$

Usually ships in 3-10 days

0

132

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

95

Husqvarna 532180533

BRACKET ASM NOSEROLLER RH

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532165892

42" DECK KIT
(Superseded to 532176027)

$399.99

$

Usually ships in 3-10 days

0

199

Husqvarna 532400278

NEEDS DESCRIPTION

$

$

Not available

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532174882

SPRING EXT ELEC CLUTCH

$26.99

$

In Stock, only 2 left!

0

200

Husqvarna 532400279

NEEDS DESCRIPTION

$

$

Not available

91

Husqvarna 532180532

BRACKET ASM NOSEROLLER LH

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532174493

STRIPPER.MANDREL.ROUND.BLACK

$7.49

$

Usually ships in 3-10 days

0

55

Husqvarna 532155046

ARM IDLER 42" MOWER LT/YT
(Superseded to 531166601)

$17.99

$

Usually ships in 3-10 days

0

15

$13.99

$

In Stock, only 4 left!

0

149

Husqvarna 532165898

SPRING.RETAINER.YELLOW.ZINC

$7.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532123713

SPRING TORSION

$7.99

$

In Stock, only 2 left!

0

94

Husqvarna 532132264

NOSE ROLLER

$44.99

$

In Stock, Qty 20+

0

131

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

Usually ships in 3-10 days

0

183

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

In Stock, Qty 11

0

203

Husqvarna 532197262

NEEDS DESCRIPTION

$

$

Not available

144

Husqvarna 532158634

DNO KEEPER.BELT.42".CLUTCH.CBL
(Superseded to 532173441)

$9.99

$

In Stock, only 1 left!

0

113

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

146

Husqvarna 532171977

BOLT, CARRIAGE IDLER BLACK
(Superseded to 532173443)

$7.49

$

In Stock, Qty 7

0

$6.49

$

Usually ships in 3-10 days

0

111

Husqvarna 532179292

BRACKET, WHEEL
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

201

Husqvarna 532401220

PUSH.NUT.ROUND.3/8.DIAM

$2.99

$

Usually ships in 3-10 days

0
