YTH 180 (960410025-01) - Husqvarna Yard Tractor (2013-12) ENGINE Parts Diagram

Yard Tractor

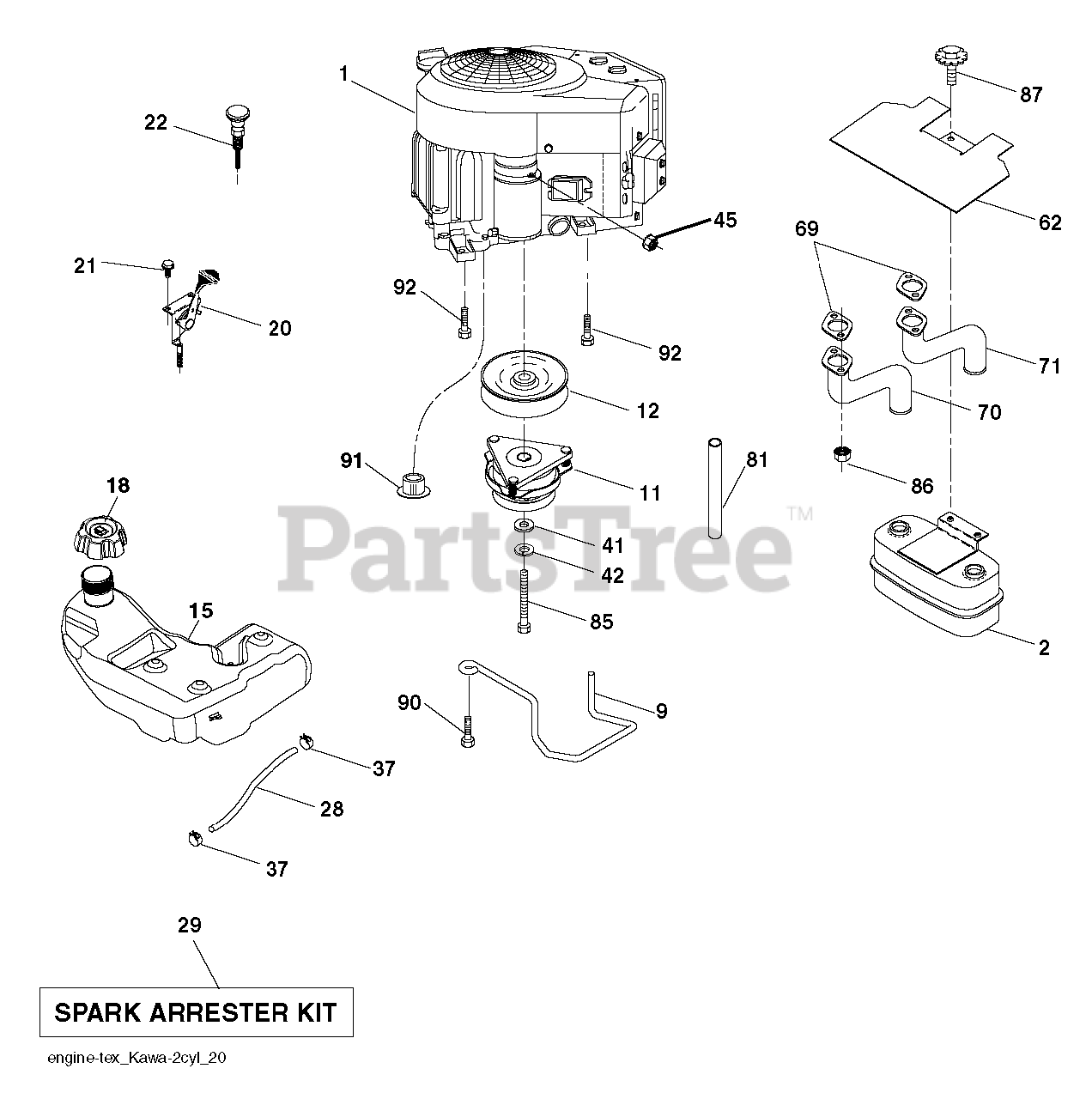

ENGINE Parts Diagram

  • Title

1

000000000

Note: Kawasaki Model FH531V-AS10 (184344)

$

$

Not available

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532194319

KEEPER.BELT.ENGINE.3.25 (3 2)

$13.99

$

In Stock, only 1 left!

0

11

Husqvarna 532180505

RB.CLUTCH.OGURA.4.4.PD
(Superseded to 583389701)

$399.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532194338

PULLEY.ASM.ENG.OGURA.3

$

$

Not available

15

Husqvarna 532193499

TANK.FUEL.4GAL

$145.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532439645

CAP.FL.R.3'N/CARB.H.CROWN.498
(Superseded to 584248702)

$17.99

$

In Stock, only 1 left!

0

20

Husqvarna 532178385

THROTTLE CABLE
(Superseded to 532175437)

$44.99

$

In Stock, only 1 left!

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

22

Husqvarna 532189541

CONTROL, CHOKE
(Superseded to 532187768)

$37.99

$

In Stock, only 2 left!

0

28

Husqvarna 532142158

REPL BY 532 00 85-43
(Superseded to 587044854)

$17.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, only 3 left!

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

000000000

Note: Exhaust Gasket (Order part from engine manufacturer )

$

$

Not available

70

Husqvarna 532176067

EXHAUST.TUBE.LH.KAWASAKI.

$113.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532176068

EXHAUST.TUBE.RH.KAWASAKI.

$113.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

In Stock, only 3 left!

0

87

Husqvarna 532198239

BOLT.5/16-18UNCX1.W/SEMS.BLK

$7.49

$

In Stock, only 4 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 19

0
