YTH 180 (960410025-00) - Husqvarna Yard Tractor (2007-02) CHASSIS & ENCLOSURES Parts Diagram

Yard Tractor

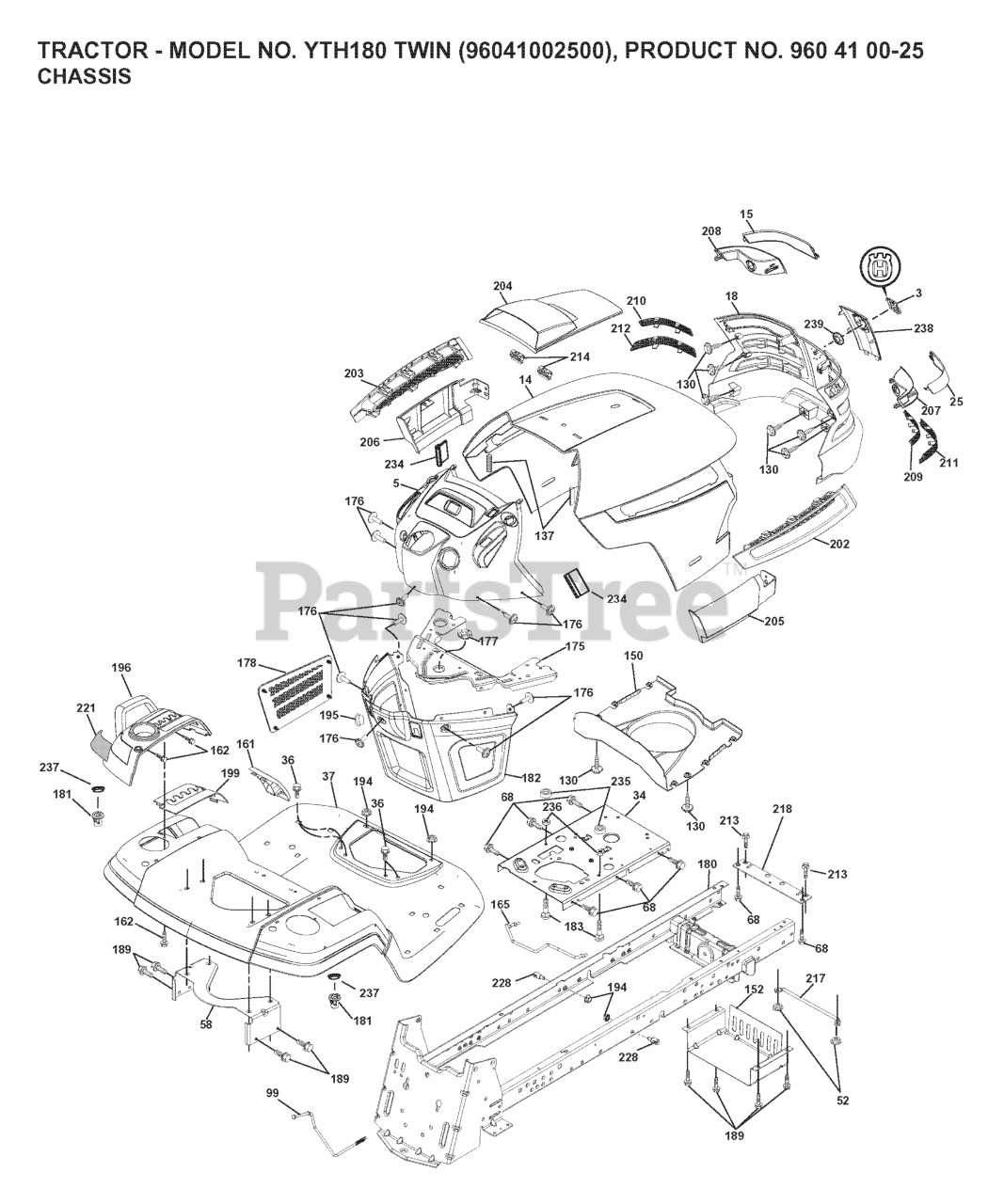

CHASSIS & ENCLOSURES Parts Diagram

  • Title

207

Husqvarna 532197198

BEZEL.RH.TEX.GT.HUSQ

$26.99

$

Usually ships in 3-10 days

0

205

Husqvarna 532401709

SKIRT.HOOD.SIDE.HUSQ.RH.GREY

$

$

Not available

195

Husqvarna 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$6.49

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, Qty 7

0

189

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

58

Husqvarna 532194314

BRKT.SUPPORT.FNDR/TANK

$45.99

$

Usually ships in 3-10 days

0

181

Husqvarna 532403025

BUSHING.MNT.FEND.CRGO.

$

$

Not available

194

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

199

Husqvarna 532198259

PLATE.DECK.LIFT.HUSQVARNA.GT

$26.99

$

Usually ships in 3-10 days

0

204

Husqvarna 532198904

VENT.TOP.HOOD.HUSQVARN
(Superseded to 532416615)

$19.99

$

Usually ships in 3-10 days

0

208

Husqvarna 532197199

BEZEL.LH.TEX.GT.HUSQ

$

$

Not available

211

Husqvarna 532199132

INSERT.HEX.GRILL.HUSQ.

$2.99

$

Usually ships in 3-10 days

0

217

Husqvarna 532156524

ROD PIVOT CHASSIS/HOOD
(Superseded to 532409167)

$13.99

$

In Stock, only 3 left!

0

196

Husqvarna 532400299

RP CONSOLE.ASM.DECKLFT.W/
(Superseded to 532439716)

$121.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532405917

ROD ASM BYPASS
(Superseded to 532415743)

$10.99

$

In Stock, Qty 11

0

5

Husqvarna 532408701

DASH.ASM.HUSQ.GT.E.RECT.W/CK

$

$

Not available

213

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532196125

PLATE.ENGINE.WELDED.CHASSIS
(Superseded to 580910801)

$74.99

$

Usually ships in 3-10 days

0

183

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

178

Husqvarna 532199782

CARGO.ASM.NET.TXGT.W/C

$39.99

$

Usually ships in 3-10 days

0

228

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

206

Husqvarna 532401711

SKIRT.HOOD.SIDE.HUSQ.LH.GREY

$

$

Not available

210

Husqvarna 532199131

INSERT.HEX.GRILL.HUSQ.

$

$

Not available

234

Husqvarna 532404742

BUMPER.HOOD.TEX.HUSQVARNA

$6.99

$

In Stock, only 2 left!

0

237

Husqvarna 532403704

PLUG.MOUNT.CARGO.BLK

$4.99

$

Usually ships in 3-10 days

0

177

Husqvarna 532195227

BUSHING, STEERING

$6.99

$

In Stock, Qty 20+

0

25

Husqvarna 532198906

LENS.RH.TEX.GT.HUSQ.CL

$44.99

$

Usually ships in 3-10 days

0

165

Husqvarna 532196826

SUPPORT.TANK.REAR.W/TEX

$31.99

$

Usually ships in 3-10 days

0

203

Husqvarna 532403076

VENT.SIDE.HOOD.HUSQ.LH.GRAY

$

$

Not available

182

Husqvarna 532194787

DASH.LOWER.COMMON.12V.
(Superseded to 532406859)

$113.99

$

In Stock, Qty 7

0

209

Husqvarna 532199130

INSERT.HEX.GRILL.HUSQ.GREY

$6.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532405012

RP LOGO
(Superseded to 532430771)

$8.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532408607

GRILL.ASM.HUSQ.TG/CRD.W/TRIM

$

$

Not available

235

Husqvarna 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532199535

SHIELD.BROWNING.W/TEX

$

$

Not available

221

Husqvarna 532198909

REFLECTOR.LH.TEX GT HU

$20.99

$

In Stock, only 2 left!

0

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

180

Husqvarna 532401559

CHASSIS.WLDMT.TX.GT.05
(Superseded to 582033001)

$341.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$6.49

$

In Stock, Qty 9

0

68

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

150

Husqvarna 532198513

AIR.DUCT.TEXGT.HUSQ.SV

$62.99

$

Usually ships in 3-10 days

0

202

Husqvarna 532403048

VENT.SIDE.HOOD.HUSQ.RH.GREY

$

$

Not available

130

Husqvarna 532191611

SCREW
(Superseded to 532416358)

$

$

Not available

238

Husqvarna 532408606

TRIM.HUSQ.TG/CRD.SERVICE

$26.99

$

Usually ships in 3-10 days

0

161

Husqvarna 532401826

CONSOLE.FUEL.WINDOW.HU

$9.49

$

In Stock, Qty 13

0

14

Husqvarna 532411046

HOOD
(Superseded to 532442396)

$

$

Not available

37

Husqvarna 532401825

FENDER.PNT.TX.GT.CH/FW.ORANGE
(Superseded to 532441208)

$262.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

137

Husqvarna 532407590

BUMPER DASH

$6.49

$

In Stock, Qty 14

0

239

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

212

Husqvarna 532199133

INSERT.HEX.GRILL.HUSQ.

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532198907

LENS.LH.TEX.GT.HUSQ.CL

$44.99

$

In Stock, Qty 5

0

218

Husqvarna 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

Usually ships in 3-10 days

0

162

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

175

Husqvarna 532196304

PLATE.CROSSMEMBER.HUSQ
(Superseded to 590607702)

$39.99

$

Usually ships in 3-10 days

0
