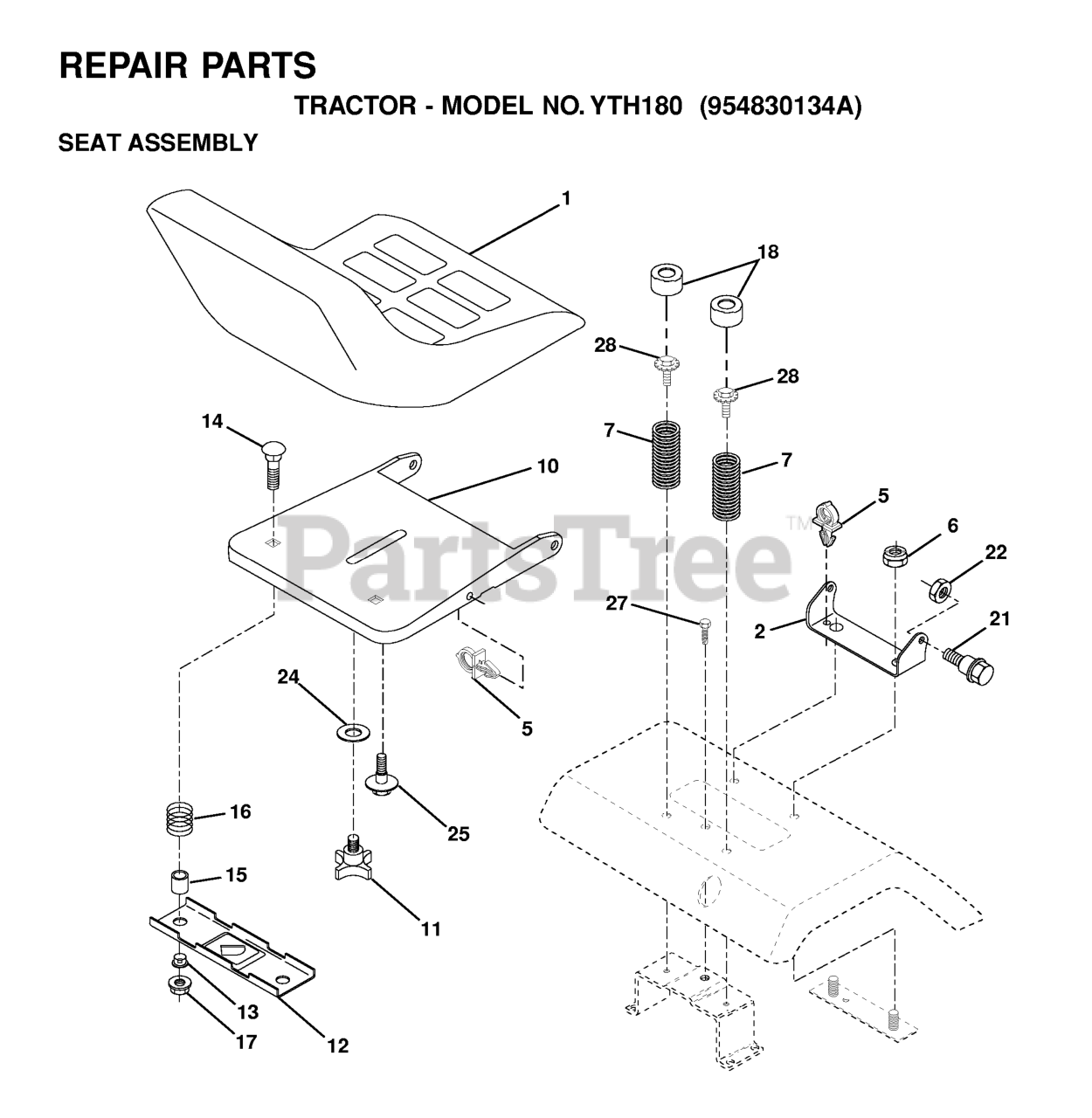

YTH 180 (954830134-A) - Husqvarna Yard Tractor (1995-10) SEAT Parts Diagram

Yard Tractor

SEAT Parts Diagram

  • Title

16

Husqvarna 532123740

SPRING COMPRESSED

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532124238

CAP SPRING

$

$

Not available

28

Husqvarna 532150176

BOLT HEX WASHER HD 5/16-18
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

10

Husqvarna 532140552

SEAT PAN
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532139888

BOLT.SHOULDER.5/16-18

$6.49

$

In Stock, only 1 left!

0

17

Husqvarna 532123976

NUT T
(Superseded to 873900400)

$4.99

$

In Stock, Qty 18

0

5

Husqvarna 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 872050411

Bolt Rdhd. Sht. Nk 1/4-20 x 1-3/8

$

$

Not available

11

Husqvarna 532120068

KNOB 1/2" YT
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

22

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 819171912

WASHER

$7.49

$

In Stock, only 1 left!

0

7

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

12

Husqvarna 532121246

BRKT SWITCH
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532121248

BUSHING

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532140840

SEAT, GRAY
(Superseded to 532401043)

$

$

Not available

15

Husqvarna 532121249

SPACER SPLIT

$6.49

$

In Stock, only 2 left!

0

6

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532140551

SEAT PIVOT BRKT

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532127018

BOLT,SHOULD

$7.49

$

Usually ships in 3-10 days

0
