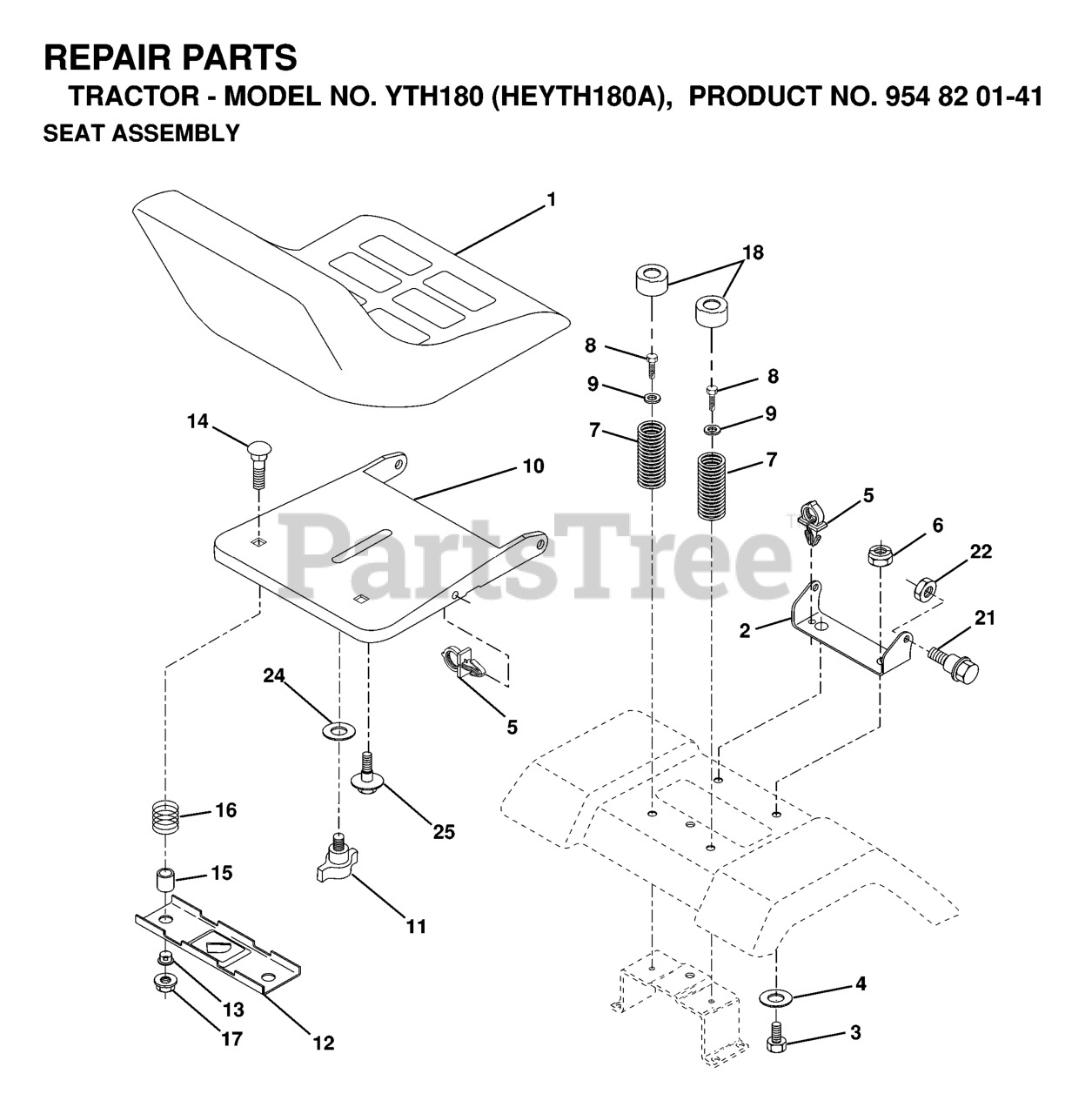

YTH 180 (954820141-A) - Husqvarna Yard Tractor (1998-12) SEAT Parts Diagram

Yard Tractor

SEAT Parts Diagram

  • Title

3

Husqvarna 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 819131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532123976

NUT T
(Superseded to 873900400)

$4.99

$

In Stock, Qty 18

0

16

Husqvarna 532123740

SPRING COMPRESSED

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532124238

CAP SPRING

$

$

Not available

8

Husqvarna 817490616

SCREW GTV
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0

2

Husqvarna 532140551

SEAT PIVOT BRKT

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 819131610

WASHER PM

$6.49

$

In Stock, Qty 7

0

24

Husqvarna 819171912

WASHER

$7.49

$

In Stock, only 1 left!

0

10

Husqvarna 532155925

PAN, SEAT
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

22

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532121248

BUSHING

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532120068

KNOB 1/2" YT
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

12

Husqvarna 532121246

BRKT SWITCH
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532153236

BOLT SHOULDER 5/16-18
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

14

Husqvarna 872050412

BOLT.ROUND.HEAD.SQUARE.NECK

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532121249

SPACER SPLIT

$6.49

$

In Stock, only 2 left!

0

1

Husqvarna 532140840

SEAT, GRAY
(Superseded to 532401043)

$

$

Not available

7

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

25

Husqvarna 532127018

BOLT,SHOULD

$7.49

$

Usually ships in 3-10 days

0
