YTH 180 (954140109-B) - Husqvarna Yard Tractor (1999-11) Engine Parts Diagram

Yard Tractor

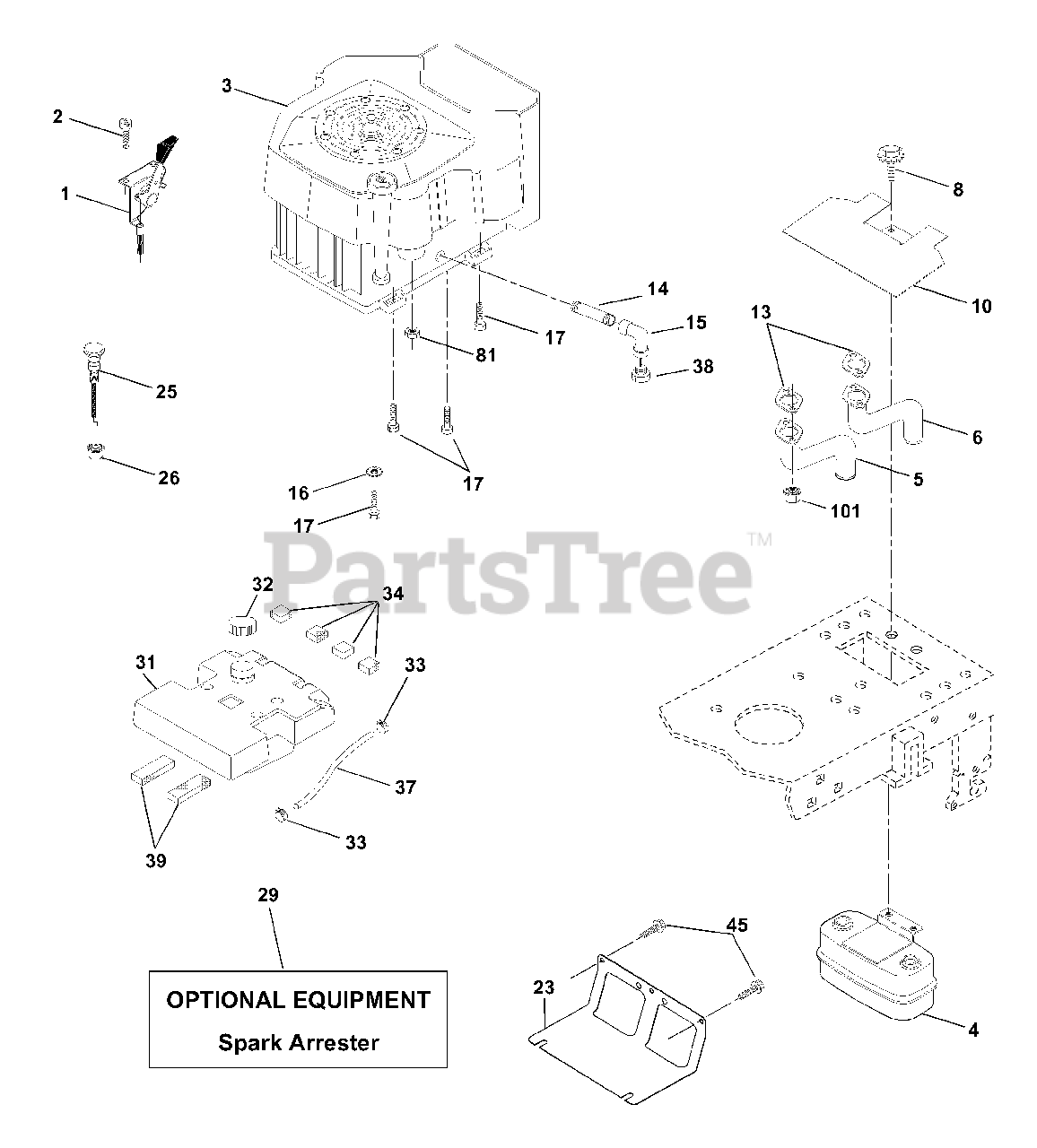

Engine Parts Diagram

  • Title
1

Husqvarna 532155274

Control Throt Flg 180 LH
(Superseded to 532170863)

$

$

Not available

2

Husqvarna 817720410

Screw Hex Thd Cut 1/4-20x5/8 T
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

3

Engine, Model Kohler CV18

Note: (Order Parts From Engine Manufacturer)

$

$

Not available

4

Husqvarna 532149723

Muffler Asm Twin Lo-Tone

$74.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532146699

Pipe Exhaust CV18/20 LH
(Superseded to 583954501)

$22.99

$

In Stock, only 1 left!

0

6

Husqvarna 532146700

Pipe Exhaust CV18/20 RH
(Superseded to 583954801)

$20.99

$

In Stock, only 1 left!

0

8

Husqvarna 532150176

Bolt 5/16-18unc x 3/4 W/Sems
(Superseded to 532171877)

$7.49

$

In Stock, Qty 6

0

10

Husqvarna 532146629

Shield Heat Muffler CV18/20
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532163307

Gasket Kohler CV18-CV26
(Superseded to 532186054)

$

$

Not available

14

Husqvarna 813280336

Nipple Pipe 3/8 Npt X 4-1/2"

$

$

Not available

15

Husqvarna 813200300

Elbow Std 90 Degree 3/8-18 Npt
(Superseded to 532428287)

$18.99

$

In Stock, Qty 5

0

16

Husqvarna 811050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

17

Husqvarna 817490624

Screw Thdrol 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532169837

Shield Browning

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532145996

Choke Control 37"

$

$

Not available

26

Husqvarna 873920600

Nut, Keps 3/8-24 Unf

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

Kit Spark Arrestor (Flat Scrn)

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532157103

Tank Fuel 3 50 Rear

$

$

Not available

32

Husqvarna 532140527

Cap Asm Fuel Top N/Lany Vented
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

Clamp Hose Blk

$7.49

$

In Stock, only 1 left!

0

34

Husqvarna 532106082

Pad, Spacer

$

$

Not available

37

Husqvarna 532124923

Line Fuel 7.5
(Superseded to 587044808)

$6.99

$

Usually ships in 3-10 days

0

38

Plug Oil Drain

Note: (Order From Engine Manufacturer)

$

$

Not available

39

Husqvarna 532109227

Pad, Idler

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 817060612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

81

Husqvarna 532128861

Nut Flange 1/4-20 Starter Nut
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

101

Husqvarna 532163305

Nut Flange M8-1.25 Non-Lk Zinc
(Superseded to 873030800)

$

$

Not available
