YTH 180 (954140010-D) - Husqvarna Yard Tractor (1997-01) ENGINE Parts Diagram

Yard Tractor

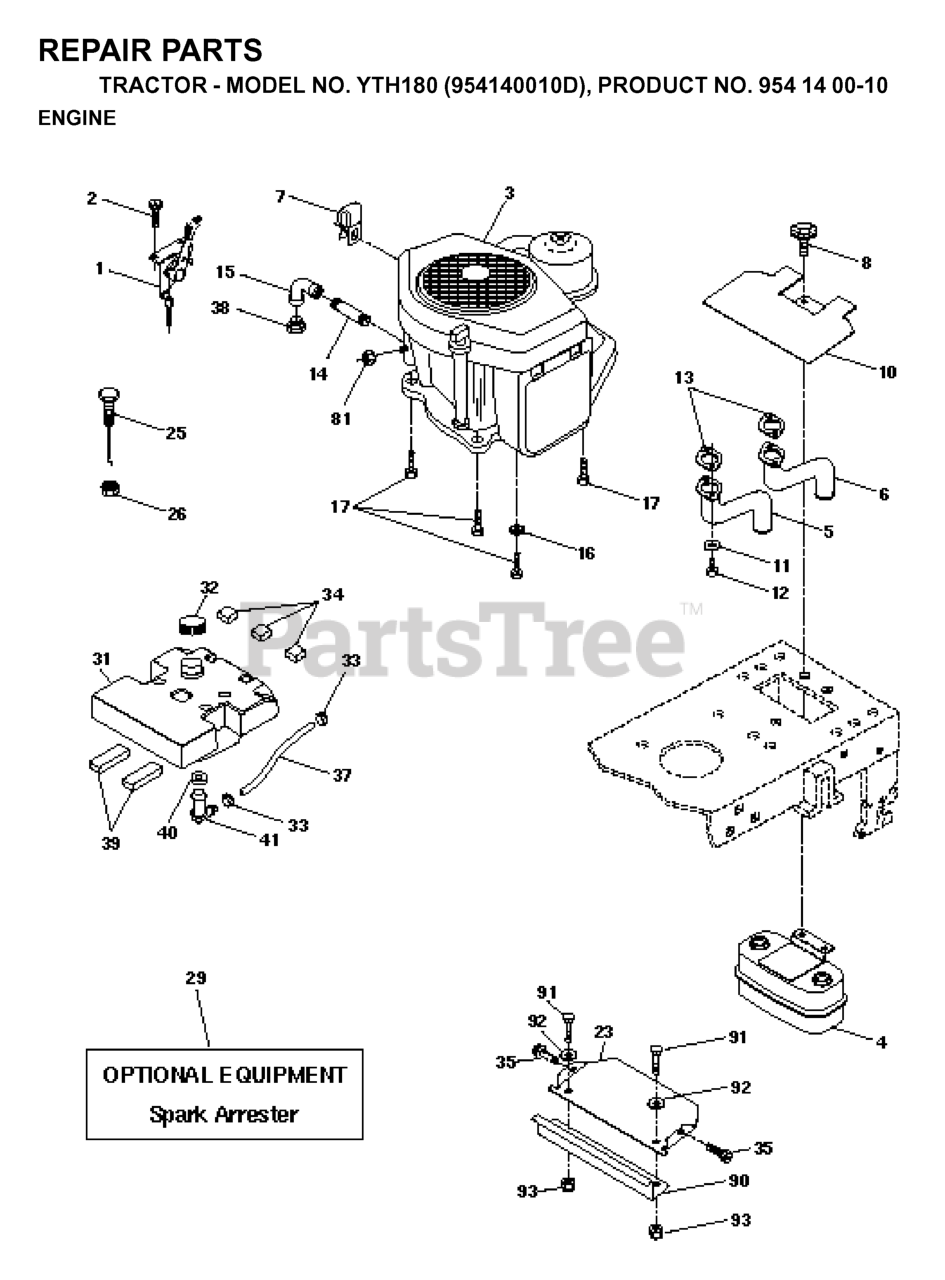

ENGINE Parts Diagram

  • Title
40

Husqvarna 532124952

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

91

Husqvarna 871110408

BOLT
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532155274

CONTROL THROTTLE
(Superseded to 532170863)

$

$

Not available

10

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532124923

HOSE T
(Superseded to 587044808)

$6.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532156123

SHIELD HEAT

$

$

Not available

4

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

16

Husqvarna 811050600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

26

Husqvarna 873920600

Nut Keps 3/8 - 24 UNF

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532139277

STEM FUEL TANK

$8.99

$

In Stock, Qty 8

0

81

Husqvarna 532128861

NUT FLANGE 1/4-20 STARTER NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

35

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532146699

RP.PIPE-EXHAUST LH
(Superseded to 583954501)

$22.99

$

In Stock, only 1 left!

0

25

Husqvarna 532145996

CONTROL, CHOKE

$

$

Not available

31

Husqvarna 532157103

TANK.FUEL(3.5.GAL)

$

$

Not available

17

Husqvarna 817490624

SCREW LT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available

93

Husqvarna 532123976

NUT T
(Superseded to 873900400)

$4.99

$

In Stock, Qty 18

0

15

Husqvarna 813200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

14

Husqvarna 813280336

Nipple, Pipe 3/8 NPT x 4-1/2

$

$

Not available

6

Husqvarna 532146700

RP.PIPE-EXHAUST RH
(Superseded to 583954801)

$20.99

$

In Stock, only 1 left!

0

33

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

2

Husqvarna 817720410

SCREW LT
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

34

Husqvarna 532106082

PAD-SPACER LT

$

$

Not available

32

Husqvarna 532140527

FUEL CAP
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532150176

BOLT HEX WASHER HD 5/16-18
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

39

Husqvarna 532109227

PAD IDLER TI

$4.99

$

In Stock, Qty 20+

0
