YTH 180 (954001172-A) - Husqvarna Yard Tractor (1994-07) Mower - 42" Parts Diagram

Yard Tractor

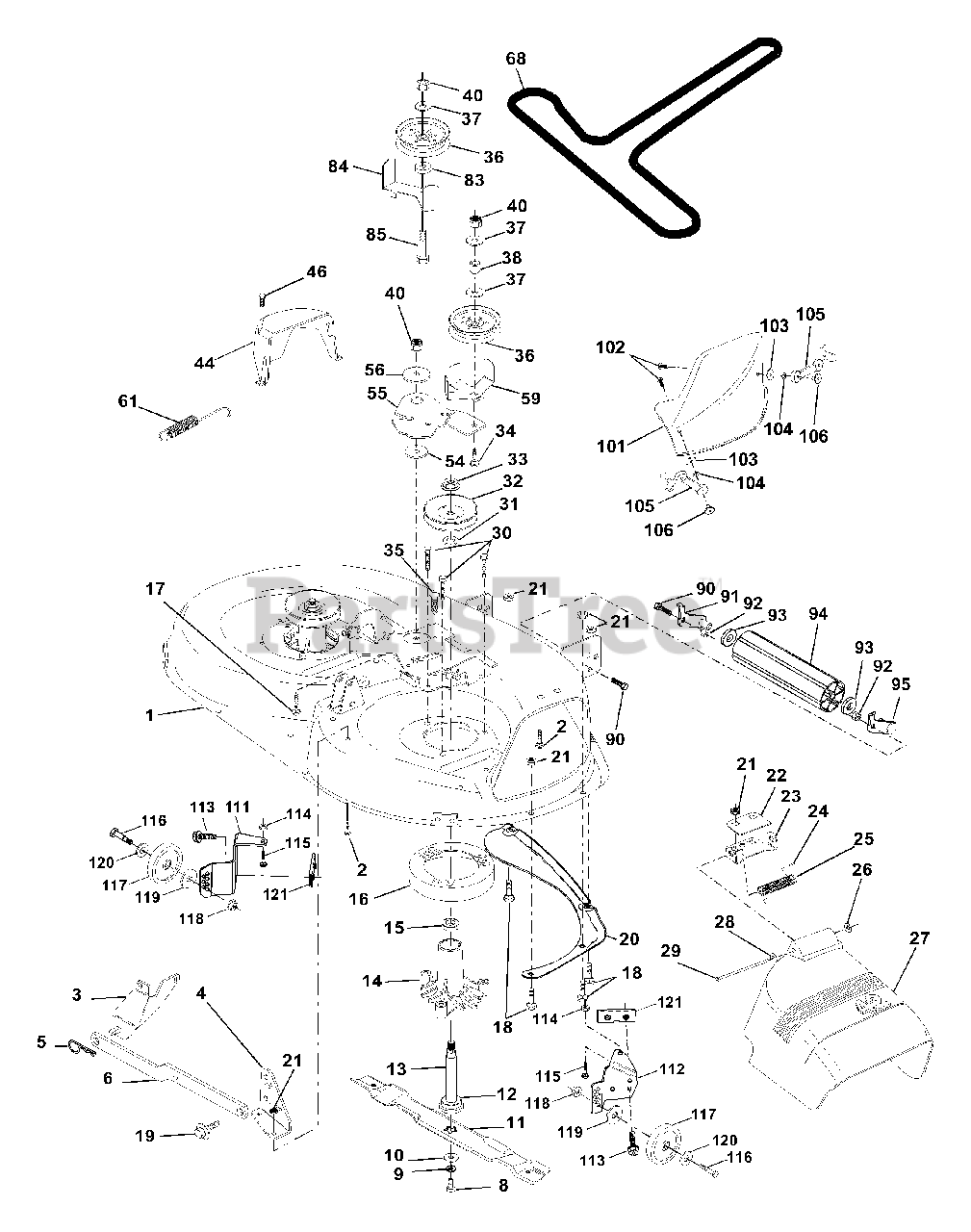

Mower - 42" Parts Diagram

  • Title

1

Husqvarna 532144393

Deck Asm MWR 42"weldment
(Superseded to 532176031)

$319.99

$

Usually ships in 3-10 days

0

2

Husqvarna 872140506

Bolt Rdhd Sqnk 5/16-18unc X3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 532138017

Bracket Asm Fr Sway Bar 38/42

$12.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532138440

Bracket Asm Deck 42"sway Bar

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532124670

Retainer Spring

$

$

Not available

6

Husqvarna 532130832

Arm Suspension Rear
(Superseded to 532130833)

$8.99

$

In Stock, only 4 left!

0

7

Husqvarna 873800500

Locknut-hex W/ins 5/16-18unc P

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532850857

Bolt 3/8-24x1 25 Gr8 Patched

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 810030600

Washer Lock Hvy 3/8 Unplated
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532140296

Washer Hard Blade Mower Vented

$6.99

$

In Stock, only 2 left!

0

11

Husqvarna 532134149

Blade Mower Mulching 42"
(Superseded to 594892701)

$

$

Not available

12

Husqvarna 532129895

Bearing Ball #6204 (Mandrel)

$11.99

$

In Stock, Qty 20+

0

13

Husqvarna 532137645

Shaft Asm W/lower Bearing
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

14

Husqvarna 532128774

Housing Mandrel Vented(machd)

$34.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532110485

Bearing Ball Mandrel

$13.99

$

In Stock, Qty 6

0

16

Husqvarna 532140329

Stripper Mower Vented
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 872110610

Bolt Rdhd Sqnk 3/8-16 X 1-1/4
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 872140505

Bolt Carr 5/16-18 X 5/8
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532132827

Bolt Shoulder

$

$

Not available

20

Husqvarna 532136888

Baffle Vortex 42
(Superseded to 532159770)

$

$

Not available

21

Husqvarna 873680500

Nut Crownlock 5/16-18 UNC
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532134753

Stiffener Bracket 42"deck
(Superseded to 532177563)

$

$

Not available

23

Husqvarna 532131267

Bracket Deflector Mower 42"
(Superseded to 532177563)

$

$

Not available

24

Husqvarna 532105304

Cap Sleeve 80x 112 Blk Mower

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532123713

Spring Torsion Deflector 2 52

$7.99

$

In Stock, only 2 left!

0

26

Husqvarna 532110452

Nut Push Phos & Oil

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532130968

Shield Deflector Mower 42" Blk

$39.99

$

In Stock, Qty 11

0

28

Husqvarna 819111016

Washer 11/32 X 5/8 X 16 Ga

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532131491

Rod Hinge 42"6 75 Wlg
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 532138776

Screw Thdrol Hex Hd Zinc Mwr.
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532129963

Washer Spacer Mower Vented
(Superseded to 532187690)

$4.99

$

In Stock, Qty 9

0

32

Husqvarna 532129861

Pulley Mandrel 42"
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Husqvarna 532137266

Nut 9/16top Lock Flng Cntr
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

34

Husqvarna 872110622

Bolt Rdhd 3/8-16uncx2-3/4 Gr5

$4.99

$

In Stock, Qty 9

0

35

Husqvarna 532133835

Fastner Christmas Tree

$7.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532131494

Pulley Idler Flat 3 060
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

37

Husqvarna 819131316

Washer 13/32 X 13/16 X 16 Ga
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 532132823

Spacer, Spring, Stop, Idler

$7.49

$

Usually ships in 3-10 days

0

40

Husqvarna 873680600

Nut Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532140088

Guard Mandrel LH Black

$34.99

$

In Stock, Qty 10

0

46

Husqvarna 532137729

Screw Thdrol 1/4-20x5/8

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 532133943

Washer Hardened
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532140084

Arm Idler 42"mower LT/YT
(Superseded to 532151785)

$40.99

$

In Stock, only 1 left!

0

56

Husqvarna 532122052

Spacer Retainer Pm Mower
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

59

Husqvarna 532141043

Guard, Belt
(Superseded to 531165901)

$5.99

$

In Stock, only 3 left!

0

61

Husqvarna 532131950

Spring Ext. Elect

$9.49

$

In Stock, Qty 5

0

68

Husqvarna 532144200

V-Belt Mower 42" 92 40

$45.99

$

Usually ships in 3-10 days

0

83

Husqvarna 532120958

Washer Sintered

$

$

Not available

84

Husqvarna 532144394

Keeper Belt Idler Fixed
(Superseded to 532156084)

$6.49

$

Usually ships in 3-10 days

0

85

Husqvarna 872140620

Bolt Carriage 3/8-16 x 2-1/2 Gr. 5

$3.99

$

Usually ships in 3-10 days

0

90

Husqvarna 874760616

Bolt Fin Hex 3/8-16UNC X 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

91

Husqvarna 532132274

Bracket Asm Noseroller LH
(Superseded to 532175746)

$9.49

$

In Stock, Qty 6

0

92

Husqvarna 873800600

Nut Lock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

93

Husqvarna 819171416

Washer 17/32 X 7/8 X 16 Ga

$4.99

$

In Stock, Qty 8

0

94

Husqvarna 532132264

Roller Nose 38 & 42

$44.99

$

In Stock, Qty 20+

0

95

Husqvarna 532132273

Bracket Asm Noseroller RH
(Superseded to 532175747)

$10.99

$

Usually ships in 3-10 days

0

101

Husqvarna 532136420

Cover Mulching 42" Blk

$29.99

$

In Stock, only 3 left!

0

102

Husqvarna 871161010

Screw
(Superseded to 871081010)

$3.99

$

In Stock, Qty 17

0

103

Husqvarna 810071000

Washer Lock #10

$4.99

$

In Stock, Qty 11

0

104

Husqvarna 819061216

Washer #10

$4.99

$

Usually ships in 3-10 days

0

105

Husqvarna 532130758

Latch Asm Bagger
(Superseded to 597000601)

$6.99

$

In Stock, Qty 7

0

106

Husqvarna 532125004

Nut Weld .327/.304 #10-24
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

111

Husqvarna 532140353

Bracket Wheel Gauge Lh 42" Deck
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

112

Husqvarna 532132262

Bracket Gauge Wheel Rh 42" Deck
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

113

Husqvarna 817490512

Screw Thdrol 5/16 - 18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

114

Husqvarna 873510500

Nut Keps 5/16 - 18 UNC
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

115

Husqvarna 872110504

Bolt Carriage 5/16 - UNC x 1/2
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

116

Husqvarna 532137644

Bolt Shld "A" 2.41 "B" 1.66
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Husqvarna 532105455

Wheel Gauge blk. 4.93

$18.99

$

In Stock, only 2 left!

0

118

Husqvarna 873930600

Nut Centerlock 3/8 - 16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Husqvarna 819121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

120

Husqvarna 819171512

Washer 17/32 x 15/16 x 12 Ga.

$3.99

$

Usually ships in 3-10 days

0

121

Husqvarna 532143723

Bracket

$

$

Not available

Husqvarna 532145452

Deck Serv 42" Elec Vent
(Superseded to 532176207)

Note: (Standard Deck - Order separately nose roller, gauge wheel and mulcher plate components Key Nos. 90-95, 101-106 and 111-121).

$789.99

$

Usually ships in 3-10 days

0

Husqvarna 532130794

Mandrel Assembly

Note: (Includes Key Numbers 8-10, 12-15, 31 and 33)

$56.99

$

In Stock, Qty 5

0
