YTH 180 (954001082-A) - Husqvarna Yard Tractor (1994-07) Engine Parts Diagram

Yard Tractor

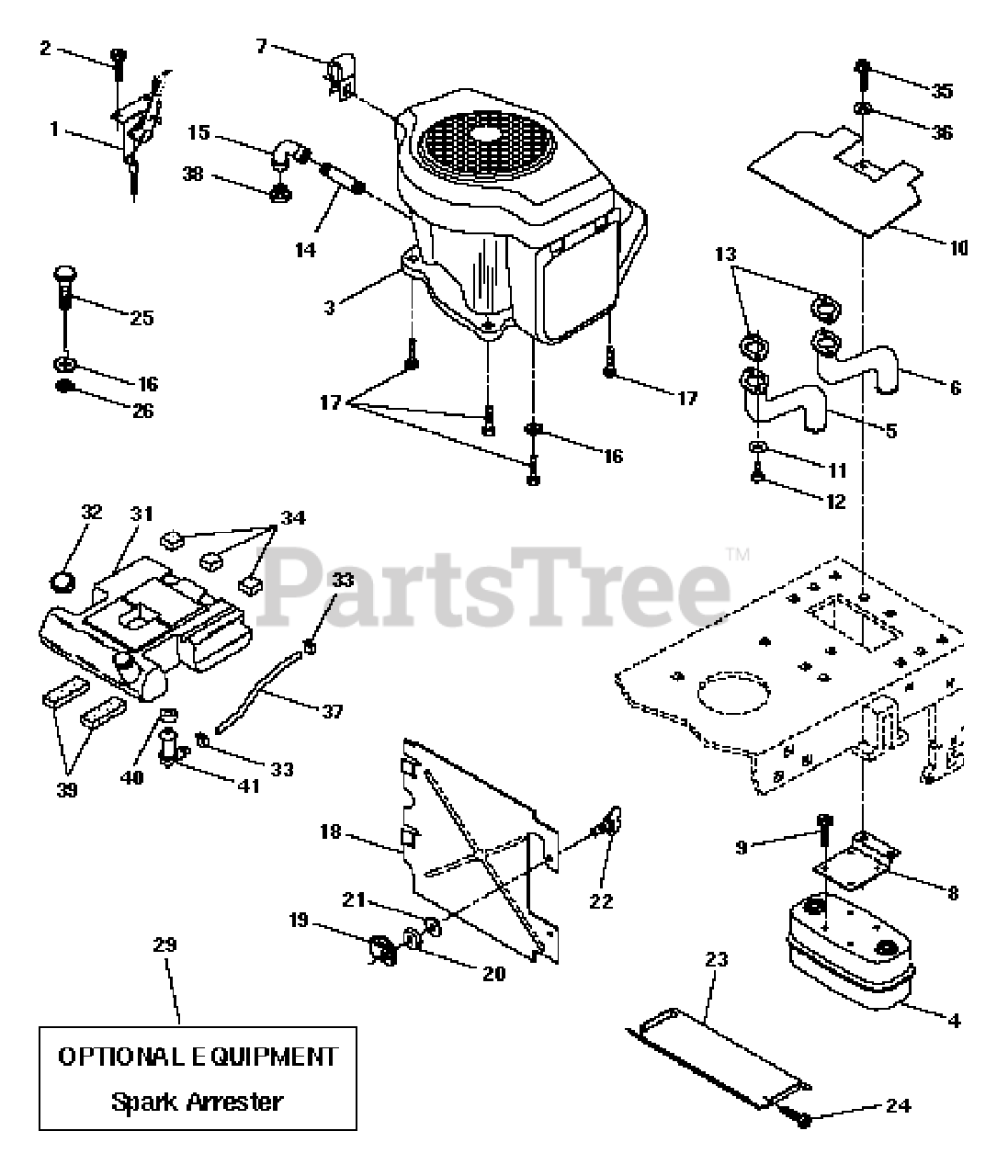

Engine Parts Diagram

  • Title

1

Husqvarna 532137214

Control RH Blk Flg 37 88
(Superseded to 532143443)

$34.99

$

Usually ships in 3-10 days

0

2

Husqvarna 817720410

Screw Hex Thd Cut 1/4-20x5/8 T
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

3

Engine Model No. MV18-PS 58559

$

$

Not available

4

Husqvarna 532137978

Muffler LT B&S
(Superseded to 532149723)

$74.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532136215

Tube Manifold LH

$

$

Not available

6

Husqvarna 532136216

Tube Manifold RH

$

$

Not available

7

Husqvarna 532138129

Clamp

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532122439

Bracket Muffler Mounting

$

$

Not available

9

Husqvarna 817190408

Screw Hex Wsh Thd Cut 1/4-20
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532143600

Shield Heat LT

$

$

Not available

11

Husqvarna 810040500

Washer Lock Hvy Hlcl 1/4
(Superseded to 596238801)

Note: (Order from Engine Manufacturer)

$3.99

$

In Stock, only 3 left!

0

12

Husqvarna 874570512

Bolt, Fin Hex 1/4-20 x 3/4

Note: (Order from Engine Manufacturer)

$3.99

$

In Stock, only 4 left!

0

13

Muffler Gasket

Note: (Order from Engine Manufacturer)

$

$

Not available

14

Husqvarna 813280336

Nipple Pipe 3/8 Npt X 4-1/2"

$

$

Not available

15

Husqvarna 813200300

Elbow Std 90 Degree 3/8-18 Npt
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

16

Husqvarna 811050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 817490624

Screw Thdrol 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532133747

Shield Heat Mech

$

$

Not available

19

Husqvarna 532105839

Receptacle 1/4 Turn

$3.99

$

In Stock, only 1 left!

0

20

Husqvarna 532105838

Retainer 1/4 Turn

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532110436

Bushing, Snap, Split
(Superseded to 532009151)

$

$

Not available

22

Husqvarna 532123650

Stud 1/4 Turn

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532128953

Shield Heat Browning LT/YT

$

$

Not available

24

Husqvarna 817021008

Screw Tap Hex #10-24unc X 1/2

$4.99

$

In Stock, Qty 14

0

25

Husqvarna 532132782

Choke Control
(Superseded to 532132781)

$

$

Not available

26

Husqvarna 873610600

Nut, Fin Hex 3/8-24 Unf
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

Kit Spark Arrestor (Flat Scrn)

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532141070

Tank Fuel 3 50 Rear
(Superseded to 532151346)

$96.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532140527

Cap Asm Fuel W/sym Vented
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

Clamp Hose Blk

$7.49

$

In Stock, only 4 left!

0

34

Husqvarna 532106082

Pad, Spacer

$

$

Not available

35

Husqvarna 817490512

Screw Thdrol 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 819132012

Washer 13/32 x 1-1/4 x 12 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532008543

Line Fuel 54"
(Superseded to 587044854)

$17.99

$

In Stock, only 2 left!

0

38

Plug Oil Drain

Note: (Order From Engine Manufacturer)

$

$

Not available

39

Husqvarna 532109227

Pad, Idler

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532124952

Bushing
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532139277

Stem Tank Fuel

$8.99

$

In Stock, Qty 7

0
