YTH 180 (954000662-A) - Husqvarna Yard Tractor (1994-01) Mower Lift Assembly Parts Diagram

Yard Tractor

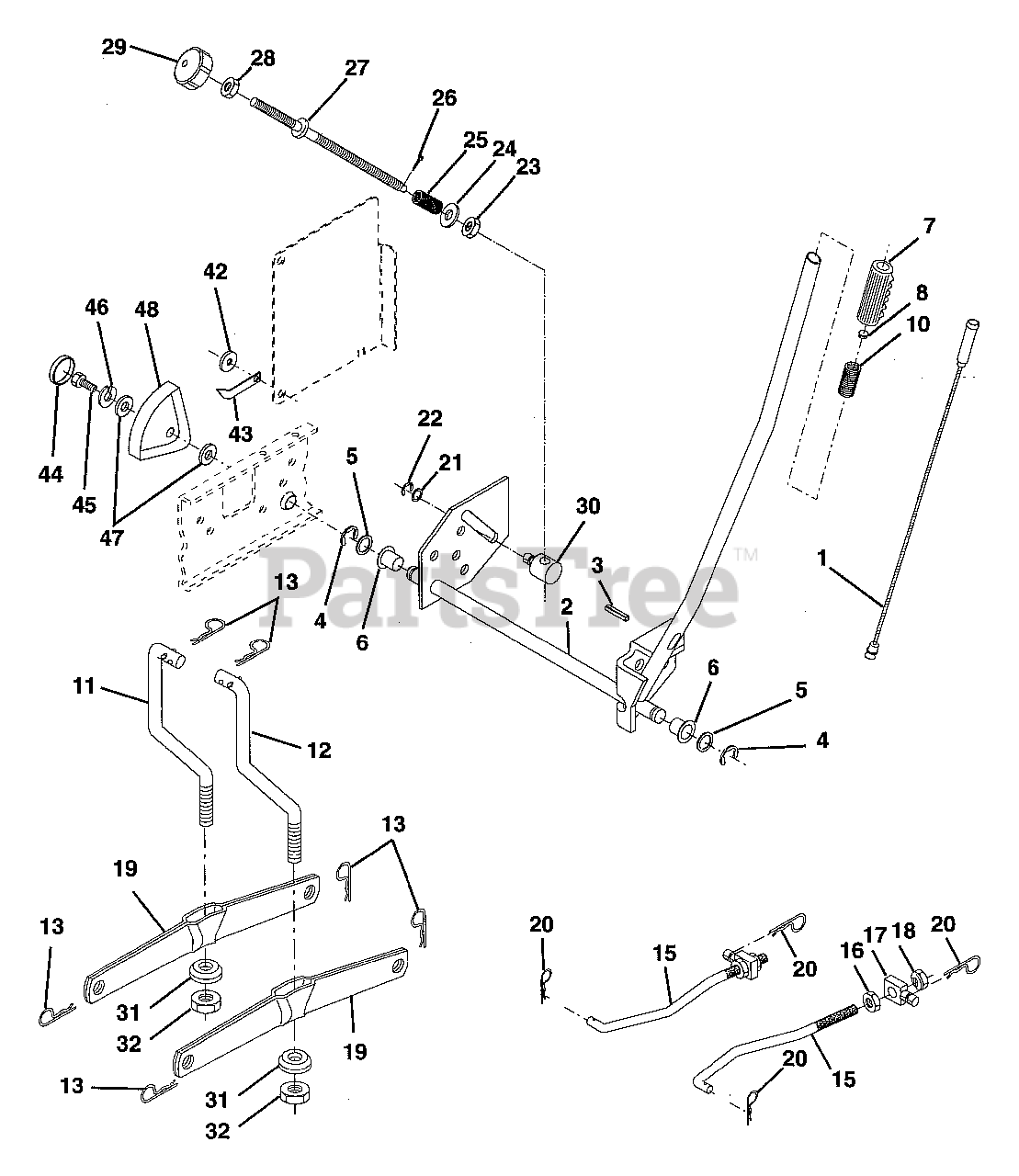

Mower Lift Assembly Parts Diagram

  • Title

1

Husqvarna 532136971

Wire Asm Inner W/plunger 20 56
(Superseded to 532159461)

$15.99

$

In Stock, only 1 left!

0

2

Husqvarna 532136968

Shaft Asm Lift RH w/lnf

$

$

Not available

3

Husqvarna 532138284

Pin Groove 1 500 Zinc

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 812000002

E Ring #5133-62

$7.49

$

In Stock, only 1 left!

0

5

Husqvarna 819211416

Washer 21/32 X 7/8 X 16 Ga
(Superseded to 819212016)

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532120183

Bearing Nylon Blk 629 Id

$6.99

$

In Stock, only 4 left!

0

7

Husqvarna 532125631

Grip Handle Fluted Blk

$7.99

$

In Stock, only 1 left!

0

8

Husqvarna 532124526

Button Plunger Black
(Superseded to 532125925)

$

$

Not available

10

Husqvarna 532122512

Spring Cprsn 3 750 Oiled

$9.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532139865

Link Lift LH
(Superseded to 532145537)

$26.99

$

In Stock, only 1 left!

0

12

Husqvarna 532139866

Link Lift RH
(Superseded to 532145536)

$26.99

$

In Stock, only 3 left!

0

13

Husqvarna 532124670

Retainer Spring

$

$

Not available

15

Husqvarna 532127218

Link Front

$17.99

$

In Stock, only 4 left!

0

16

Husqvarna 873350800

Nut Jam Hex 1/2-13 Unc

$

$

Not available

17

Husqvarna 532130171

Trunnion Blk Zinc
(Superseded to 532175689)

$

$

Not available

18

Husqvarna 873800800

Nut Lock W/wsh 1/2-13unc
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 532139868

Arm Suspension Rear

$15.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532124660

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 819151216

Washer 15/32 X 3/4 X 16 Ga

$

$

Not available

22

Husqvarna 812000037

Ring Klip #t5304-37

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532110807

Nut Special

$

$

Not available

24

Husqvarna 819131016

Washer 13/32 X 5/8 X 16 Ga

$6.49

$

In Stock, Qty 5

0

25

Husqvarna 532124874

Spring 2-1/8"
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 876020308

Pin Cotter 3/32 X 1/2
(Superseded to 532003145)

$

$

Not available

27

Husqvarna 532110729

Rod Adj Lift Zinc 9 00 Wrk Lg

$

$

Not available

28

Husqvarna 873350600

Nut Hex Jam 3/8-16 Unc
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

29

Husqvarna 532138057

Knob Inf 3/8-16 Unc Blk W/sym

$8.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532110810

Trunnion Dp Stop Dbl Thds PLT

$

$

Not available

31

Husqvarna 532140302

Bearing Pvt Lift Spherical
(Superseded to 532169865)

$

$

Not available

32

Husqvarna 873810600

Nut Lock 3/8-24 w/Nylon Insert

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532120529

Washer Nylon .44 x .75 x .032

$2.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532138346

Pointer Height Indicator
(Superseded to 532123933)

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532123935

Plug Hole Blk 1.485/1.515

$5.99

$

Usually ships in 3-10 days

0

45

Husqvarna 874780516

Bolt Fin Hex 5/16-18 unc x 1

$6.49

$

Usually ships in 3-10 days

0

46

Husqvarna 810040500

Washer Lock Hvy Hlcl Spr 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

47

Husqvarna 819112410

Washer 11/32 x 1-1/2 x 10 Ga.

$6.49

$

Usually ships in 3-10 days

0

48

Husqvarna 532123934

Scale Ind. Height Blk

$

$

Not available
