YTH 1746 (954568533-B) - Husqvarna 46" Yard Tractor (2002-02) Mower Deck Parts Diagram

46" Yard Tractor

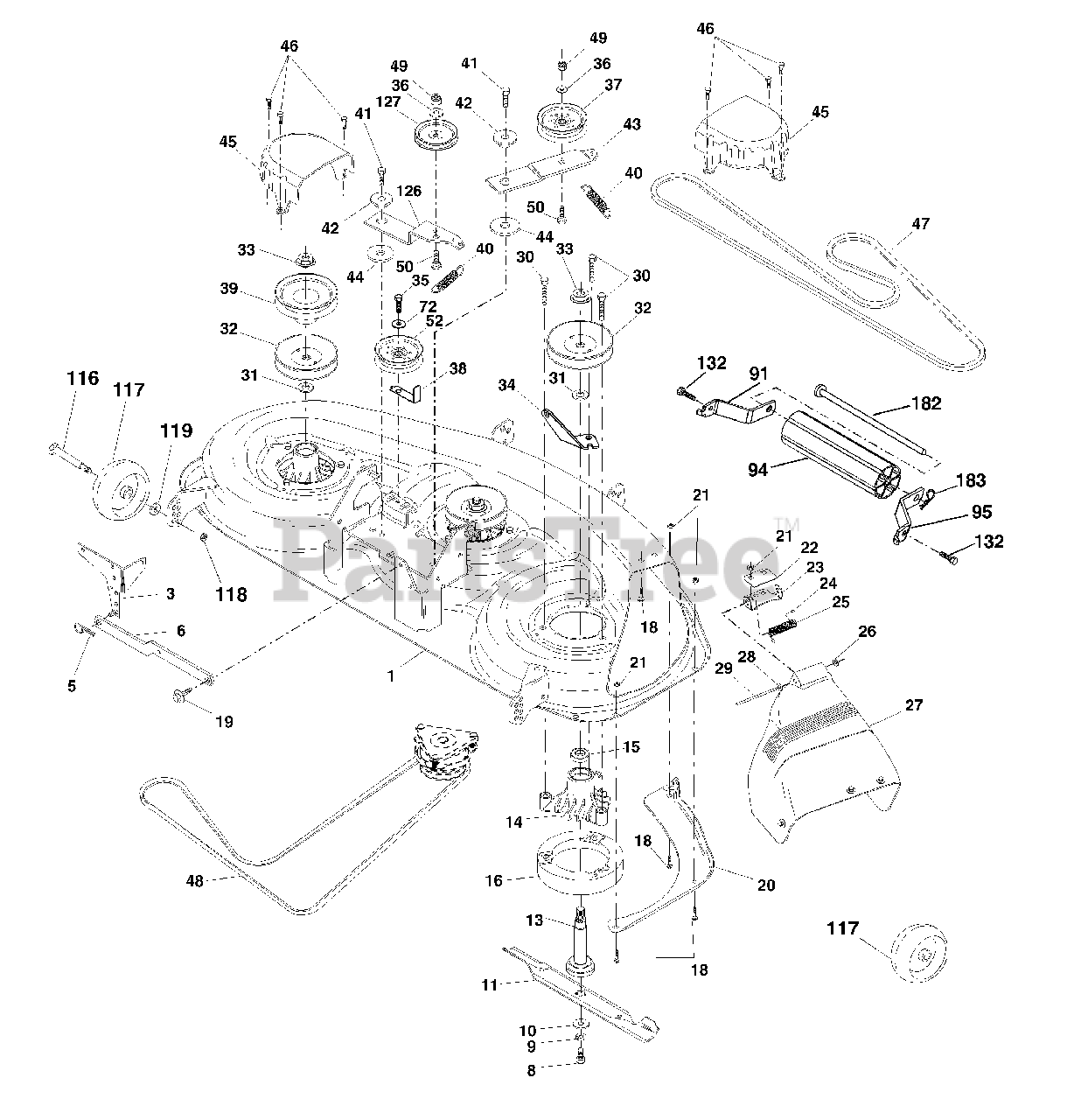

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532182220

Deck Weldment Mower HD 46 WID
(Superseded to 532176026)

$

$

Not available

3

Husqvarna 532138457

Bracket Asm., Sway Bar

$11.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532124670

Retainer Spring

$

$

Not available

6

Husqvarna 532178024

Bar Sway Deck

$8.99

$

In Stock, only 4 left!

0

8

Husqvarna 532850857

Bolt, Patched 3/8-24 x 1-1/4 Gr. 8

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 810030600

Washer, Lock Hvy., Unplated 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 17

0

10

Husqvarna 532140296

Washer, Hard Blade, Mower Vented

$6.99

$

In Stock, only 2 left!

0

11

Husqvarna 532176084

Blade, 46" High Performance

$27.99

$

In Stock, only 3 left!

0

11

Husqvarna 532152443

Blade, 46" Mulching

$20.99

$

In Stock, only 3 left!

0

13

Husqvarna 532137553

Shaft Asm. w/Lower Bearing

$37.99

$

In Stock, only 1 left!

0

14

Husqvarna 532137152

Housing, Mandrel

$40.99

$

In Stock, only 1 left!

0

15

Husqvarna 532110485

Bearing, Ball, Mandrel

$13.99

$

In Stock, Qty 11

0

16

Husqvarna 532174493

Stripper, Mower Round

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 872140505

Bolt, Carriage 5/16-18 x 5/8
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532132827

Bolt, Hex Head, Shoulder 5/16-18

$

$

Not available

20

Husqvarna 532145055

Baffle, Vortex Mower 46"

$9.99

$

Usually ships in 3-10 days

0

21

Husqvarna 873680500

Nut, Crownlock 5/16-18 UNC
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532134753

Stiffener, Bracket
(Superseded to 532177563)

$

$

Not available

23

Husqvarna 532131267

Bracket, Deflector
(Superseded to 532177563)

$

$

Not available

24

Husqvarna 532105304

Cap, Sleeve

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532149287

Spring, Torsion, Deflector
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

26

Husqvarna 532110452

Nut, Push

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532172514

Shield, Deflector Mower
(Superseded to 532166883)

$

$

Not available

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga.

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532131491

Rod, Hinge
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

Screw, Thdroll, Washer Head
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532129963

Washer, Spacer Mower Vented
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

32

Husqvarna 532173434

Pulley, Mandrel

$18.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532178342

Nut, Flg. Top Lock Cntr. 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

34

Husqvarna 532144945

Anchor, Spring Deck 46"

$

$

Not available

35

Husqvarna 817490628

Screw, Thdroll 3/8-16 x 1-3/4 Tytt
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

36

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 532173438

Pulley, Idler, Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

38

Husqvarna 532173900

Keeper, Belt, Idler
(Superseded to 532156086)

$8.99

$

In Stock, Qty 6

0

39

Husqvarna 532173899

Pulley, Idler, Driven
(Superseded to 532144917)

$31.99

$

In Stock, only 1 left!

0

40

Husqvarna 532137273

Spring, Secondary 44/46/50 Vent

$7.99

$

In Stock, Qty 5

0

41

Husqvarna 817060620

Screw, Thdroll 3/8-16 x 1-1/4

$7.49

$

In Stock, Qty 11

0

42

Husqvarna 532122052

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

43

Husqvarna 532144949

Arm, Idler Secondary

$

$

Not available

44

Husqvarna 532133943

Washer, Hardened
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532145059

Cover, Mandrel Deck

$

$

Not available

46

Husqvarna 532137729

Screw, Thdroll. 1/4-20 x 5/8

$4.99

$

In Stock, Qty 19

0

47

Husqvarna 532144959

V-Belt, Mower, Secondary

$43.99

$

In Stock, Qty 20+

0

48

Husqvarna 532148763

V-Belt, Mower, Primary

$62.99

$

In Stock, only 1 left!

0

49

Husqvarna 873680600

Nut, Crownlock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 872110612

Bolt, Carriage 3/8-16 x 1-1/2 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 532173901

Pulley Idler Flat 46 Pri. Drive

$

$

Not available

72

Husqvarna 819131616

Washer 13/32 x 1 x 16 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

91

Husqvarna 532180532

Bracket, Asm Noseroller, LH

$4.99

$

Usually ships in 3-10 days

0

94

Husqvarna 532132264

Roller, Nose 38 & 42

$44.99

$

In Stock, Qty 20+

0

95

Husqvarna 532180533

Bracket, asm Noseroller RH

$6.49

$

Usually ships in 3-10 days

0

116

Husqvarna 532137644

Bolt, Shoulder
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Husqvarna 532133957

Gauge Wheel

$13.99

$

In Stock, Qty 18

0

118

Husqvarna 873930600

Nut, Centerlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Husqvarna 819121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

126

Husqvarna 532144948

Arm, Idler, Primary Deck 46"

$

$

Not available

127

Husqvarna 532173902

Pulley, Idler, V-Groove Dim. 4.25
(Superseded to 532146763)

$

$

Not available

132

Husqvarna 817060612

Screw 3/8-16 x .75
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

182

Husqvarna 532179126

Rod Roller Nose

$

$

Not available

183

Husqvarna 532163552

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

Husqvarna 532143651

Mandrel Assembly

Note: (Includes Housing, Shaft and Shaft Hardware Only-Pulley not Included)

$102.99

$

In Stock, only 4 left!

0

Husqvarna 532180371

Replacement Mower Complete

$

$

Not available
