YTH 170 (954820131-E) - Husqvarna Yard Tractor (2001-01) ELECTRICAL Parts Diagram

Yard Tractor

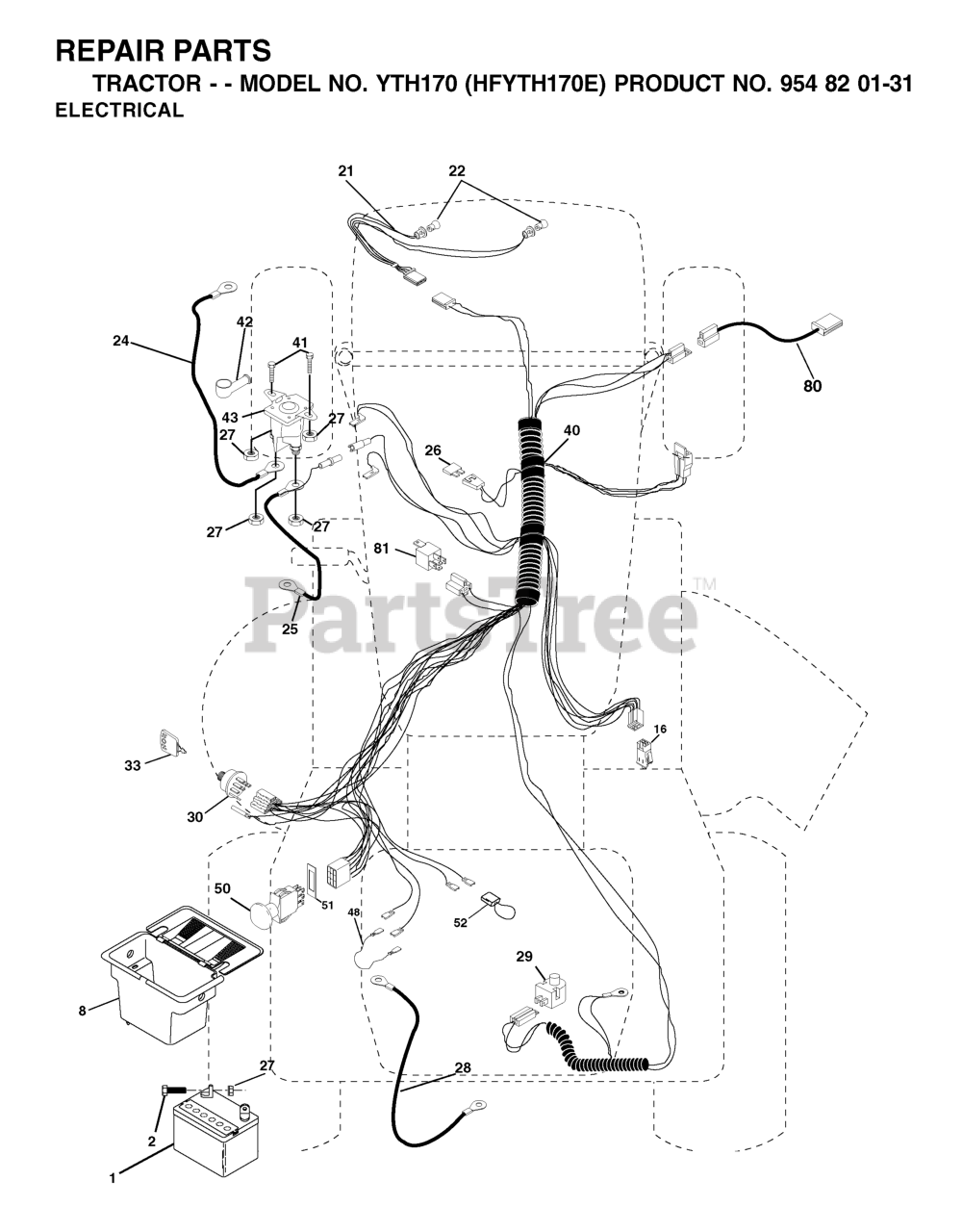

ELECTRICAL Parts Diagram

  • Title
80

Husqvarna 532146685

HARNESS, CLUTCH

$26.99

$

In Stock, only 2 left!

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

51

Husqvarna 532140405

FRAME RETAINING RING

$6.49

$

Usually ships in 3-10 days

0

22

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532175566

IGNITION SWITCH

$26.99

$

In Stock, Qty 7

0

52

Husqvarna 532141940

WIRE PROTECTION LOOP

$7.49

$

Usually ships in 3-10 days

0

48

Husqvarna 532140844

ADAPTER.AMMETER

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532144925

BATTERY 12 VOLT 25 AMP
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

25

Husqvarna 532146147

CABLE BATTERY

$34.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532156417

CASE BATTERY MECH HINGE
(Superseded to 532404349)

$

$

Not available

28

Husqvarna 532124773

CABLE T
(Superseded to 532420700)

$8.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532109748

RELAY.ASSY.T

$30.99

$

In Stock, only 1 left!

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

41

Husqvarna 871110408

BOLT
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532124780

BATTERY CABLE GT
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

43

Husqvarna 532175141

REPL BY 532 1461-54
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

33

Husqvarna 532140401

KEY MLD GEN DELTA

$6.99

$

In Stock, Qty 8

0

26

Husqvarna 532175158

FUSE 20AMP

$7.49

$

In Stock, only 2 left!

0

40

Husqvarna 532170222

HARNESS, ELEC IGNITION
(Superseded to 532179725)

$113.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532153664

SWITCH INTERLOCK
(Superseded to 532176138)

$22.99

$

In Stock, Qty 7

0

21

$

$

Not available

29

Husqvarna 532160784

PLUNGER SWITCH (COLOR:OLIVE)

$20.99

$

In Stock, only 1 left!

0

50

Husqvarna 532174651

RP.PTO.SWITCH.8 TERMINAL.BLACK
(Superseded to 582107601)

$28.99

$

In Stock, only 4 left!

0
