YTH 160 - Husqvarna Yard Tractor (1996-01) MOWER DECK / CUTTING DECK Parts Diagram

Yard Tractor

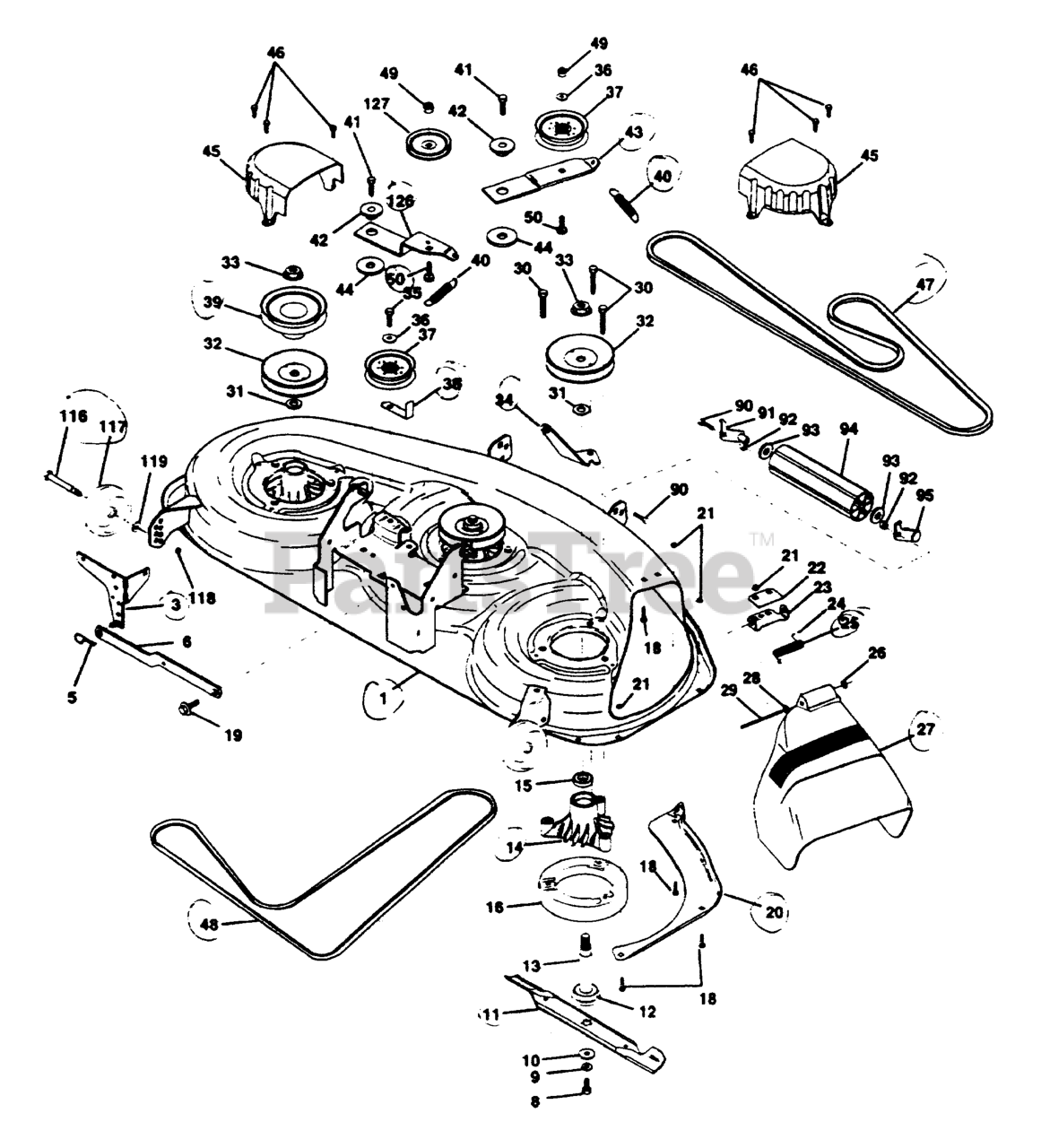

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

48

Husqvarna 531005084

NEEDS DESCRIPTION

$

$

Currently unavailable

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

5

Husqvarna 532004939

RETAINER SPRING
(Superseded to 532085902)

$

$

Not available

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

93

Husqvarna 819171416

Washer 1 17/32 X 7/8 X 16 Ga

$4.99

$

In Stock, Qty 8

0

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

116

Husqvarna 532137644

BOLT, SHOULDER
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

8

Husqvarna 532850857

BLADE BOLT

$4.99

$

In Stock, only 1 left!

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 532138776

SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532144949

ARM IDLER DECK 46"

$

$

Not available

1

Husqvarna 532145008

DECK ASM, MOWER 46"
(Superseded to 532176026)

$

$

Not available

36

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 532144945

ANCHOR, SPRING DECK 46"

$

$

Not available

50

Husqvarna 8721

NEEDS DESCRIPTION

$

$

Currently unavailable

92

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532110485

BEARING

$13.99

$

In Stock, Qty 14

0

37

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$3.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532132274

BRACKET LH (A)
(Superseded to 532175746)

$9.49

$

In Stock, Qty 6

0

18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 531005083

NEEDS DESCRIPTION

$

$

Currently unavailable

13

Husqvarna 532137553

SHAFT.ASM.W/BEARING

$37.99

$

In Stock, only 1 left!

0

126

Husqvarna 532144948

ARM IDLER PRIM 46

$

$

Not available

10

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

39

Husqvarna 532144917

PULLEY.DRIVEN.DECK.46"

$31.99

$

In Stock, only 1 left!

0

33

Husqvarna 532137266

NUT
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

12

Husqvarna 532129895

BEARING.BALL.#6204.(MANDREL)

$11.99

$

In Stock, Qty 20+

0

23

Husqvarna 532131267

DEFLECTOR BRACKET
(Superseded to 532177563)

$

$

Not available

49

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

94

Husqvarna 532132264

NOSE ROLLER

$44.99

$

In Stock, Qty 20+

0

35

Husqvarna 874783628

NEEDS DESCRIPTION

$

$

Currently unavailable

40

Husqvarna 532137273

SPRING.SEC.44"VEN

$7.99

$

In Stock, Qty 5

0

16

Husqvarna 532140329

STRIPPER
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532129207

PULLEY
(Superseded to 532173434)

$18.99

$

Usually ships in 3-10 days

0

41

Husqvarna 817490620

SCREW
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

127

Husqvarna 532146763

PULLEY.IDLER.4.25

$

$

Not available

20

Husqvarna 532145055

BAFFLE, VORTEX MOWER 46"

$9.99

$

Usually ships in 3-10 days

0

95

Husqvarna 532132273

BRACKET RH (B)
(Superseded to 532175747)

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 532145059

COVER MANDREL 46

$

$

Not available

6

Husqvarna 532130832

REAR SUSP ARM
(Superseded to 532130833)

$8.99

$

In Stock, only 4 left!

0

25

Husqvarna 532149287

TORSION SPRING
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

3

Husqvarna 532138457

BRACKET SWAY BAR

$11.99

$

Usually ships in 3-10 days

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

117

Husqvarna 532133957

WHEEL GAGE DONUT

$13.99

$

In Stock, Qty 20+

0

90

Husqvarna 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 531005082

NEEDS DESCRIPTION

$

$

Currently unavailable

22

Husqvarna 532134753

STIFFENER BRACKET
(Superseded to 532177563)

$

$

Not available

38

Husqvarna 532137554

KEEPER
(Superseded to 532156085)

$

$

Not available

27

Husqvarna 532145325

SHIELD, DEFLECTOR MOWER
(Superseded to 532166883)

$

$

Not available

14

Husqvarna 532137152

HOUSING.MANDREL.44/46" VENT

$40.99

$

In Stock, only 1 left!

0

44

Husqvarna 532133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0
