YTH 160 - Husqvarna Yard Tractor (1996-01) DRIVE Parts Diagram

Yard Tractor

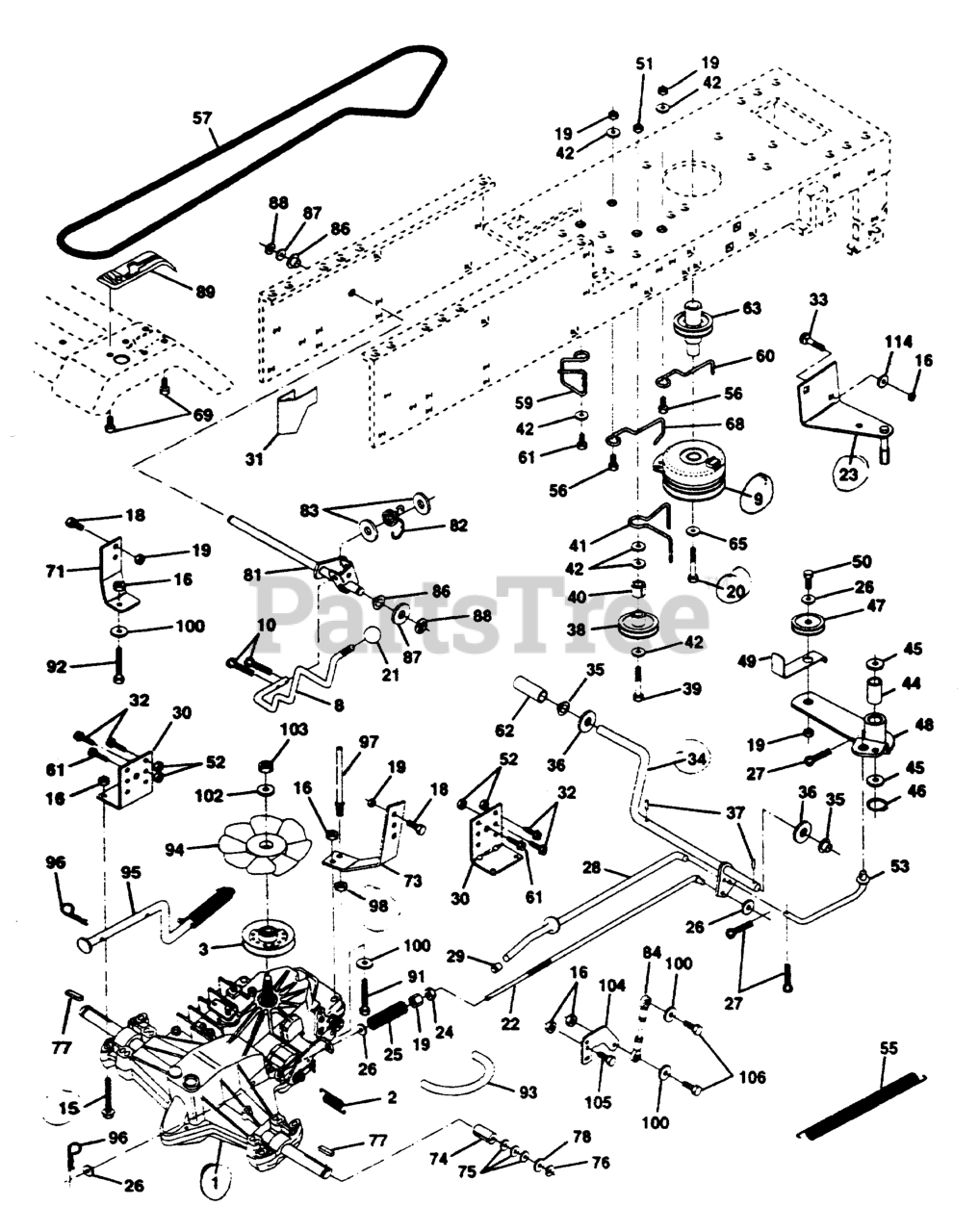

DRIVE Parts Diagram

  • Title

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532145028

CLUTCH.ELECT.EVX.

$

$

Not available

77

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 7

0

65

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

95

Husqvarna 532144643

CONTROL ARM, BYPASS HYDRO
(Superseded to 532167696)

$

$

Not available

37

Husqvarna 532124963

DRIVE PIN
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

26

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

61

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

106

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

8

$

$

Not available

46

$6.49

$

In Stock, Qty 7

0

81

Husqvarna 532140154

SHAFT ASSY
(Superseded to 532156046)

$

$

Not available

28

Husqvarna 532145204

ROD BRAKE PARK LT

$

$

Not available

92

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$

$

Not available

55

Husqvarna 532105709

SPRING, RETURN LT

$11.99

$

In Stock, only 1 left!

0

87

$6.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$37.99

$

In Stock, only 2 left!

0

48

$

$

Not available

20

Husqvarna 532150280

BOLT HEX
(Superseded to 532173937)

$4.99

$

In Stock, only 1 left!

0

21

Husqvarna 532121274

KNOB.DUCKHEAD.1/2

$10.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532149001

SHAFT PEDAL FOOT

$34.99

$

Usually ships in 3-10 days

0

98

$3.99

$

Usually ships in 3-10 days

0

36

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532143995

PULLEY, TRANSAXLE

$34.99

$

Usually ships in 3-10 days

0

50

Husqvarna 874760624

BOLT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

73

Husqvarna 532140157

STRAP RH TORQUE

$

$

Not available

74

Husqvarna 532121199

SPACER SPLIT

$

$

Not available

94

Husqvarna 532140462

FAN 7" HYDRO

$12.99

$

In Stock, only 1 left!

0

76

$4.99

$

Usually ships in 3-10 days

0

100

Husqvarna 819111216

WASHER M
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

$6.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532140294

DRIVE BELT, LTH & YTH TRACTORS

$39.99

$

In Stock, only 3 left!

0

84

Husqvarna 532140548

ROD.TIE.BALL.4.75

$

$

Not available

$7.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532150071

TRANSAXLE ASSEMBLY

$

$

Not available

38

Husqvarna 532123674

PULLEY.IDLER.FLAT

$31.99

$

In Stock, only 1 left!

0

$3.49

$

Usually ships in 3-10 days

0

69

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

88

$6.49

$

Usually ships in 3-10 days

0

83

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

22

Husqvarna 532145627

ROD BRAKE HYDRO

$193.99

$

In Stock, only 1 left!

0

2

Husqvarna 532142431

SPRING BRAKE

$8.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532140158

STRAP LH TORQUE

$

$

Not available

96

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

$4.99

$

In Stock, Qty 20+

0

102

$4.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532140312

KEEPER CENTER SPAN
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532123533

COVER, PEDAL (1 2)

$6.99

$

Usually ships in 3-10 days

0

68

Husqvarna 582121218

NEEDS DESCRIPTION

$

$

Currently unavailable

63

Husqvarna 532145868

PULLEY, CLUTCH ELECT EVX

$100.99

$

Usually ships in 3-10 days

0

89

Husqvarna 532139988

CONSOLE HYDRO LT
(Superseded to 532153764)

$12.99

$

Usually ships in 3-10 days

0

45

$

$

Not available

19

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

103

Husqvarna 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, only 4 left!

0

82

Husqvarna 532123782

SPRING,TORSION

$

$

Not available

32

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

44

Husqvarna 532105706

BEARING LT (2 2)

$7.49

$

Usually ships in 3-10 days

0

40

$6.49

$

Usually ships in 3-10 days

0

15

$

$

Not available

97

Husqvarna 532140469

KEEPER BELT RH

$

$

Not available

93

Husqvarna 532142564

LINE FUEL HYD 4"

$6.49

$

Usually ships in 3-10 days

0

114

Husqvarna 734116301

WASHER - 15X7.3X1.6
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532071873

NEEDS DESCRIPTION

$

$

Currently unavailable

10

Husqvarna 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532105730

KEEPER,BLT ENG LT

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532127275

KEEPER BELT LH

$

$

Not available

86

Husqvarna 532071208

BUSHING.STEERING.ROD LTB-WSL

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

33

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

91

Husqvarna 874780536

BOLT.FIN HEX 5/16-18UNC X2 1/4

$

$

Not available

51

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532140275

BRACKET, ASM CLUTCH MTG EVX
(Superseded to 532154978)

$

$

Not available

24

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

30

Husqvarna 532130807

BRACKET TRANSAXLE

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

41

Husqvarna 532109070

BELT KEEPER LT NLA

$6.49

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

104

Husqvarna 532140156

CONTROL ARM

$

$

Not available
